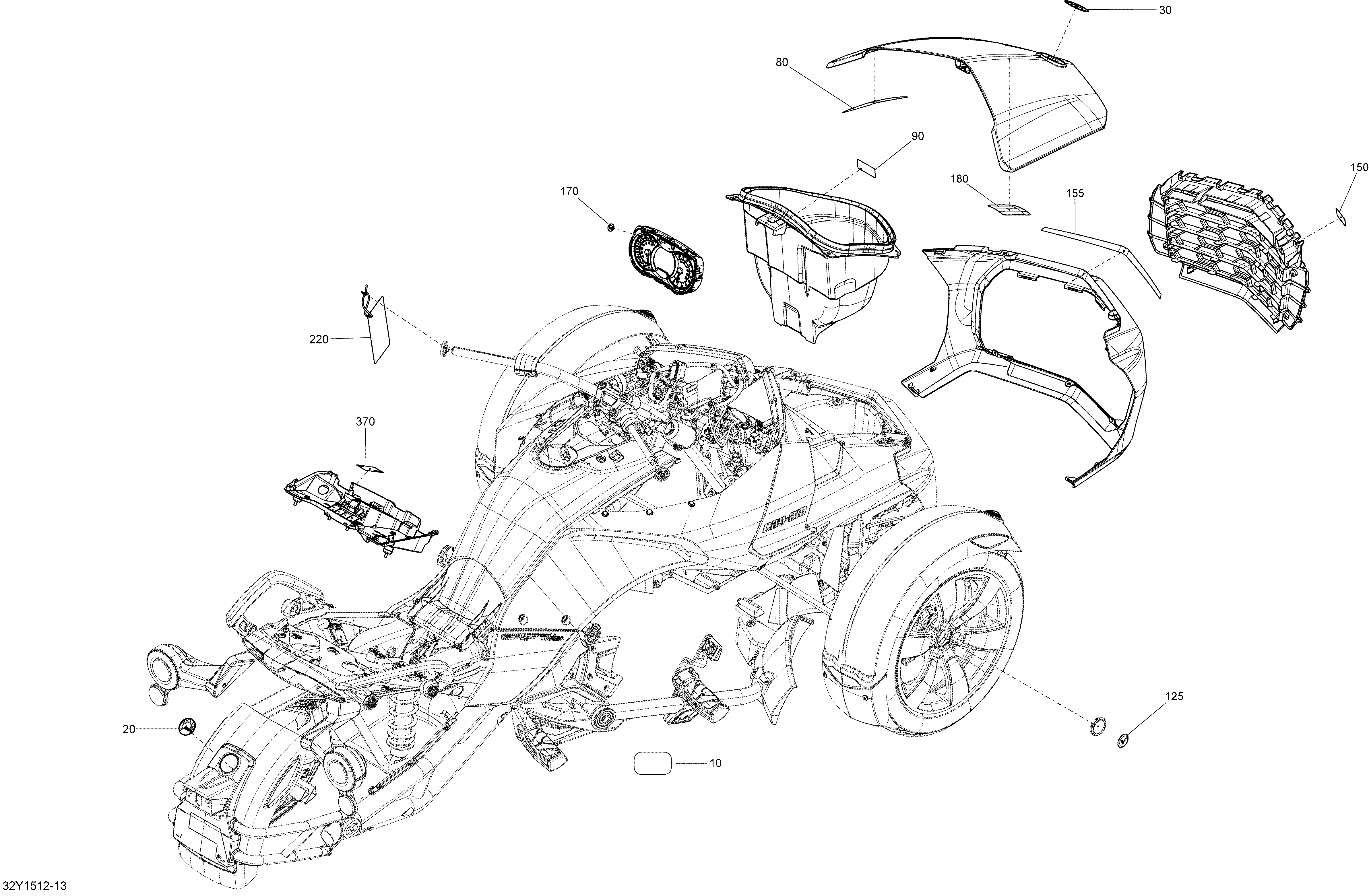

09- Decals _32Y1513 для BRP Spyder F3-S SM6 - 2015
-
№АртикулНазвание
-
10705009823 Protector. LH-RHProtector. LH-RH
-
20704904612 BRP Logo, 48 mmBRP Logo, 48 mm
-
30704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
80704905092 Decal, Tire And LoadingDecal, Tire And Loading
-
90704904787 Warning Label, Load LimitWarning Label, Load Limit
-
125704901380 Wheel Decal, Logo SPYDERWheel Decal, Logo SPYDER
-
150704904674 Decal, SDecal, S
-
155704904677 Front Fascia Decal. Model-WhiteFront Fascia Decal. Model-White
-
155704904677 Front Fascia Decal. Model-MagnesiumFront Fascia Decal. Model-Magnesium
-
170704904616 BRP Logo, 20mmBRP Logo, 20mm
-
180704904936 Notice Decal, CleaningNotice Decal, Cleaning
-
220704905082 Warning Decal, SecurityWarning Decal, Security
-
370704904562 Warning Decal, PassengerWarning Decal, Passenger
