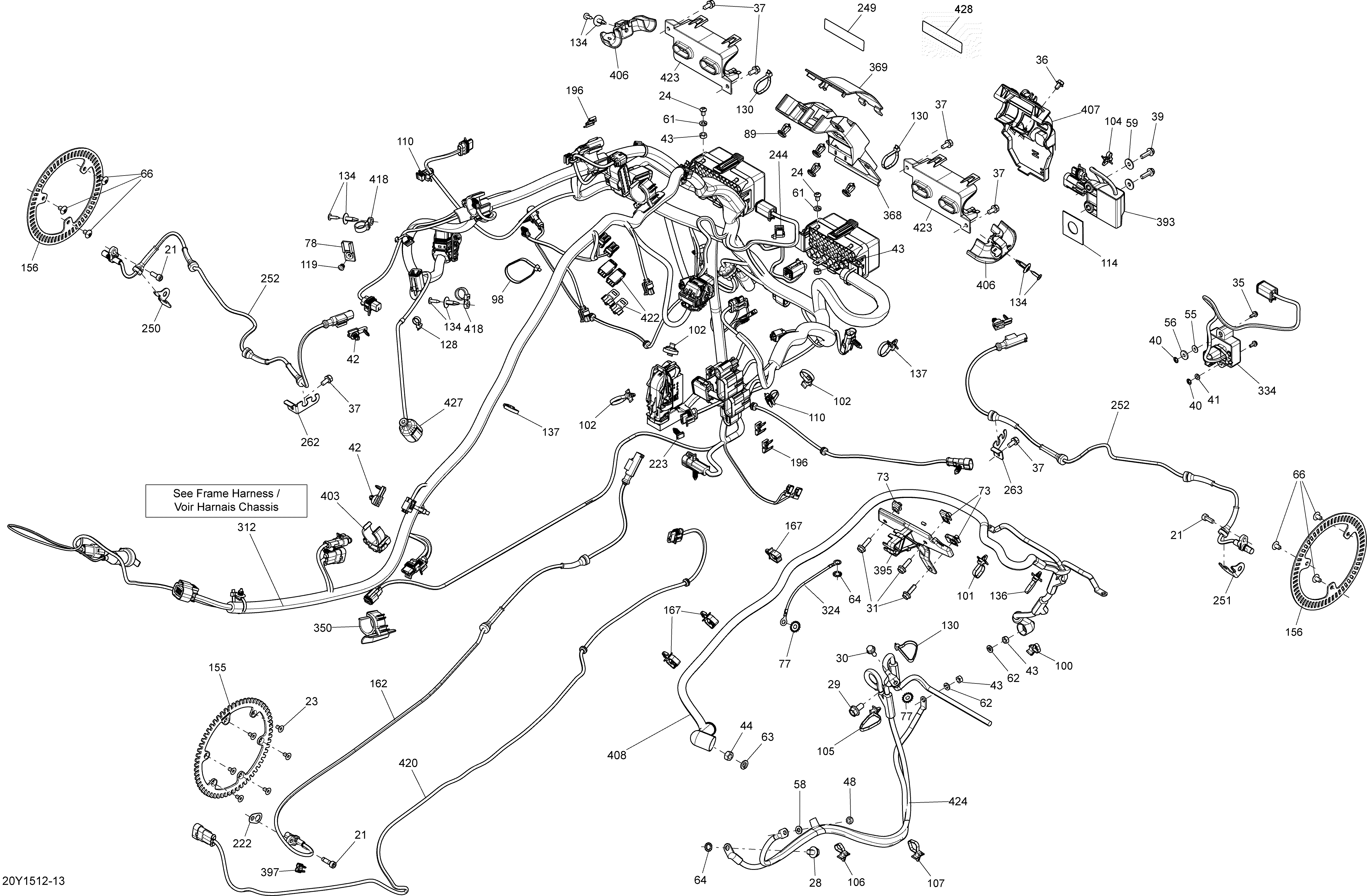

10- Electrical System _20Y1513 для BRP Spyder F3-S SM6 - 2015
-
№АртикулНазвание
-
21205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
23205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
24205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
28207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
29207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
30207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
35250000674 Hex. Screw Forming M4 X 16Hex. Screw Forming M4 X 16
-
35250000674 Hex. Screw Forming M4 X 16Hex. Screw Forming M4 X 16
-
36210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
37210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
39210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
40211100002 Push NutPush Nut
-
41213200016 Flat Washer, EmhartFlat Washer, Emhart
-
42219800059 Speed Sensor ClipSpeed Sensor Clip
-
43232061600 Hex. Nut M6Hex. Nut M6
-
44232081414 Hex. Nut M8Hex. Nut M8
-
48232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
55234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
56234052400 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
58234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
59234062410 Flat Washer 6 mmFlat Washer 6 mm
-
61234161601 Lock Washer Helical M6Lock Washer Helical M6
-
62234161601 Lock Washer Helical M6Lock Washer Helical M6
-
63234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
64234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
66250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
73250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
77250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
78270000141 ClipClip
-
89293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
98293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
100293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
101293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
102293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
104293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
105293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
106293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
107293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
110293750058 Locking Tie RapLocking Tie Rap
-
114293830091 Rubber BumperRubber Bumper
-
119390403000 Pop Rivet 5/32Pop Rivet 5/32
-
128414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
134414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
134414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
136515175220 Tie RapTie Rap
-
137515175220 Tie RapTie Rap
-
155705601372 Sensor WheelSensor Wheel
-
156705601371 Front Sensor WheelFront Sensor Wheel
-
162706200560 Speed SensorSpeed Sensor
-
167709000634 Harness SupportHarness Support
-
196710001222 LockLock
-
222710002023 ShimShim
-
223710002033 HolderHolder
-
244710002899 Clip Tie-RapClip Tie-Rap
-
249710003077 R/L Label DecalR/L Label Decal
-
250710003089 Speed Sensor HolderSpeed Sensor Holder
-
251710003090 Speed Sensor HolderSpeed Sensor Holder
-
252710003091 Speed SensorSpeed Sensor
-
262710003156 Speed Sensor HolderSpeed Sensor Holder
-
263710003157 Speed Sensor HolderSpeed Sensor Holder
-
312710003697 Frame HarnessFrame Harness
-
312710003986 Frame Harness SEFrame Harness SE
-
324710003706 Fuel Tank Negative CableFuel Tank Negative Cable
-
334710003142 Configuration ModuleConfiguration Module
-
350710003954 Cable SupportCable Support
-
368710004098 Wire SupportWire Support
-
369710004099 CoverCover
-
393710004697 DESS ModuleDESS Module
-
395710004256 Connector SupportConnector Support
-
397710004279 Cable SupportCable Support
-
403710004299 Cable SupportCable Support
-
406710004307 Wire SupportWire Support
-
407710004308 Wire SupportWire Support
-
408710004371 Positive Main CablePositive Main Cable
-
418710004424 Tie RapTie Rap
-
420710004455 Tail HarnessTail Harness
-
422710004456 Connector With CapConnector With Cap
-
423710004472 Fuse Holder SupportFuse Holder Support
-
424710004485 Starter Harness CR Ass'yStarter Harness CR Ass'y
-
427710004486 Protector CapProtector Cap
-
428709000401 Rubber PadRubber Pad
