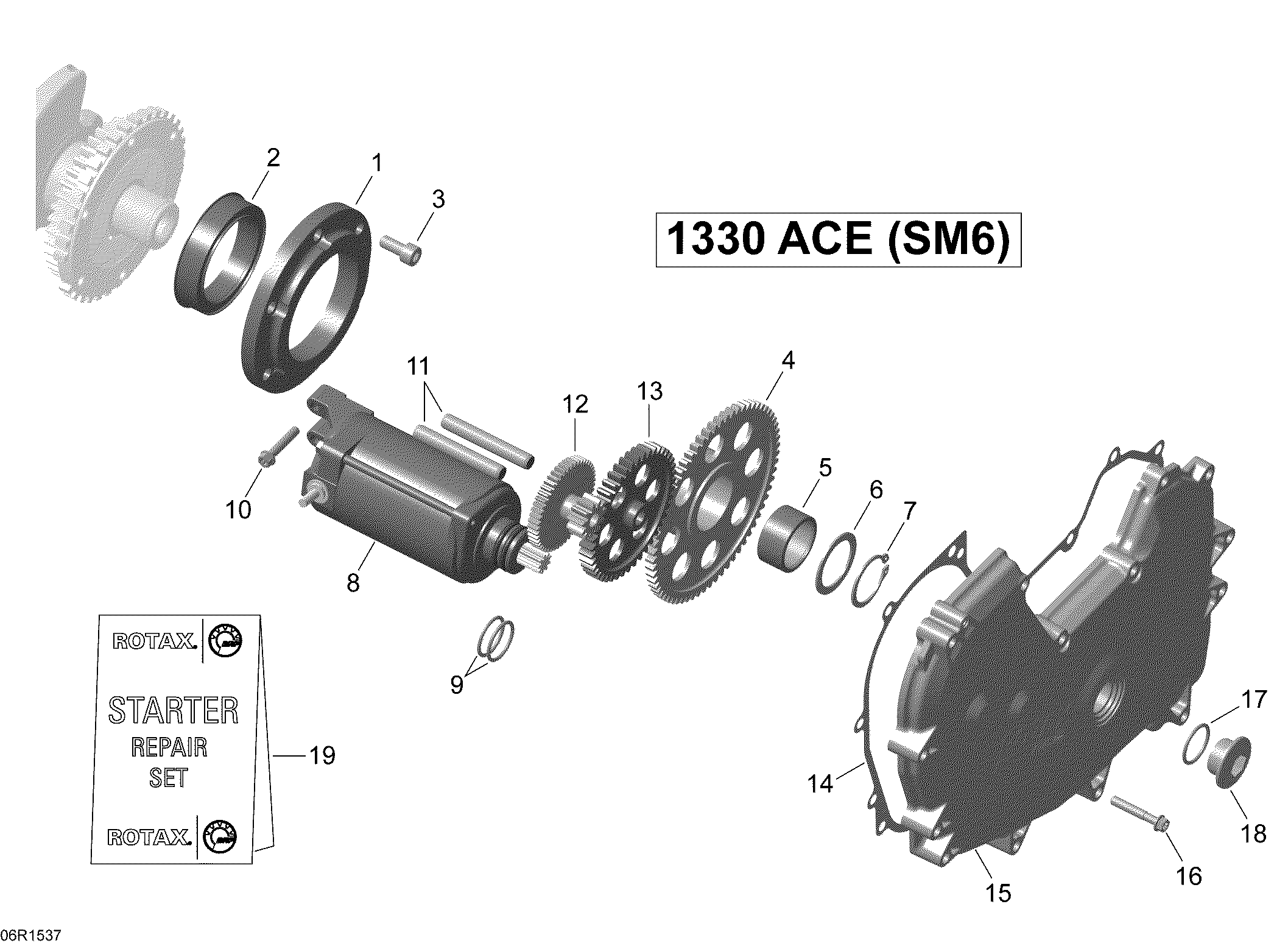

03- Electric Starter _06R1537 для BRP Spyder F3-S SM6 - 2015
-
№АртикулНазвание
-
1420458010 Sprag Clutch HousingSprag Clutch Housing
-
2420659090 Sprag ClutchSprag Clutch
-
3420641509 Socket Head Screw M8 X1 8Socket Head Screw M8 X1 8
-
4420435335 Gear 66 Teeth Ass'y. Includes 4 to 5Gear 66 Teeth Ass'y. Includes 4 to 5
-
6420427111 Thrust WasherThrust Washer
-
7420945720 Anneau De RetenueAnneau De Retenue
-
8420893830 Starter Ass'y. Includes 8 to 9Starter Ass'y. Includes 8 to 9
-
9420250145 O-RingO-Ring
-
10420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
11420229472 Pin CylindricalPin Cylindrical
-
12420435382 Double GearDouble Gear
-
13420435390 Gear 44 TeethGear 44 Teeth
-
14420450010 GasketGasket
-
15420210291 CoverCover
-
16420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
17420430783 O-RingO-Ring
-
18420241632 Screw PlugScrew Plug
-
19420881145 Carbon Brush SetCarbon Brush Set
