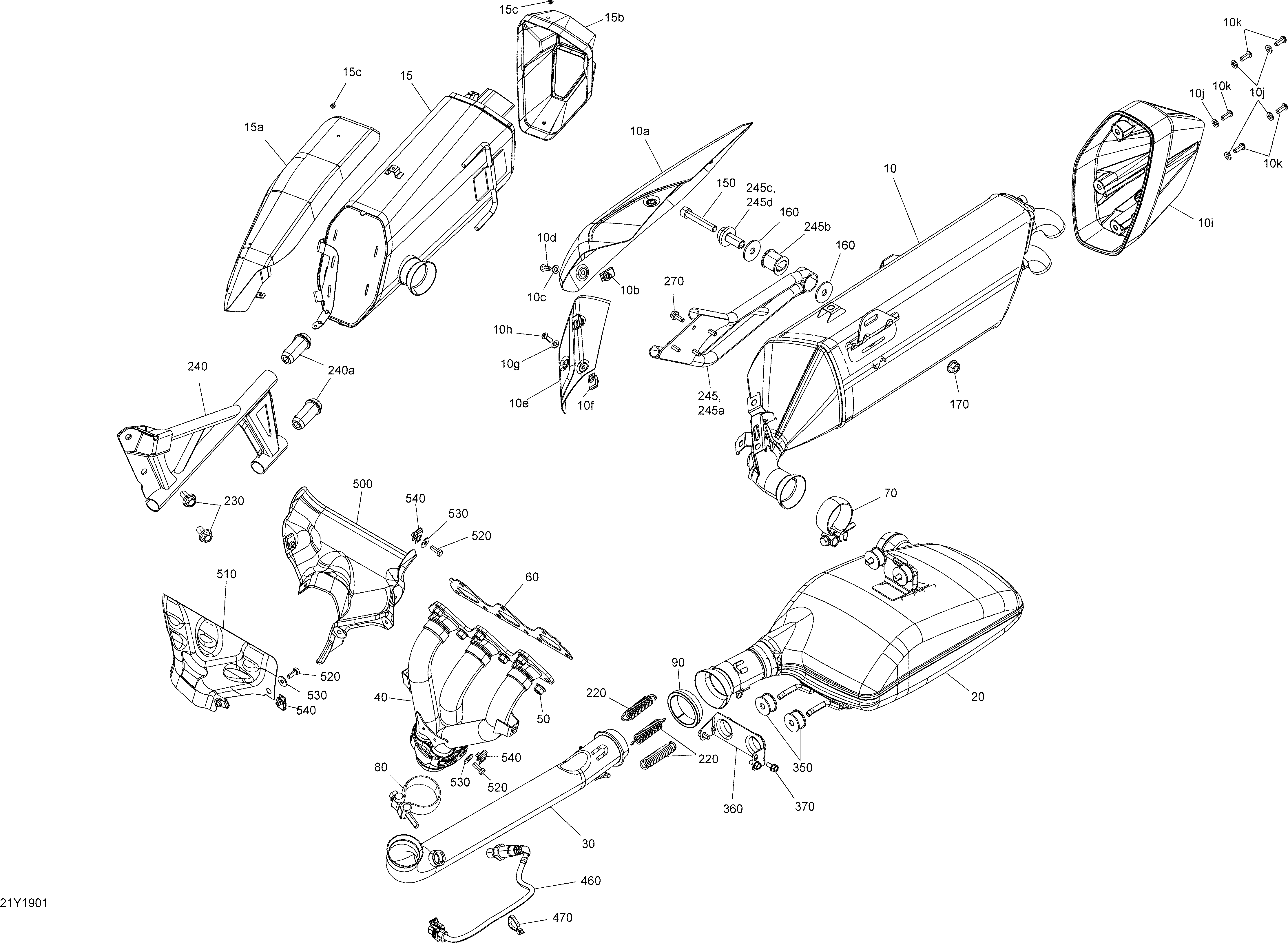

01- Exhaust System для BRP 001 - F3 STD SE6 - 2019
-
№АртикулНазвание
-
10>10k707602442 Muffler Exhaust Sec. Carbon Black. Australia. Includes 10 TO 10kMuffler Exhaust Sec. Carbon Black. Australia. Includes 10 TO 10k
-
10a707601381 Carbon Black Heat Shield. AustraliaCarbon Black Heat Shield. Australia
-
10b250100198 Panel Nut , M6 X 1.0. AustraliaPanel Nut , M6 X 1.0. Australia
-
10c234061670 Flat Washer 6 mm. AustraliaFlat Washer 6 mm. Australia
-
10d250000616 Socket Screw, M6 X 16. AustraliaSocket Screw, M6 X 16. Australia
-
10e707601054 Carbon Black Heat Shield. AustraliaCarbon Black Heat Shield. Australia
-
10f250100198 Panel Nut , M6 X 1.0. AustraliaPanel Nut , M6 X 1.0. Australia
-
10g234061670 Flat Washer 6 mm. AustraliaFlat Washer 6 mm. Australia
-
10h250000616 Socket Screw, M6 X 16. AustraliaSocket Screw, M6 X 16. Australia
-
10i707601048 Trim Mufller Rear B-322. AustraliaTrim Mufller Rear B-322. Australia
-
10j234061670 Flat Washer 6 mm. AustraliaFlat Washer 6 mm. Australia
-
10k250000616 Socket Screw, M6 X 16. AustraliaSocket Screw, M6 X 16. Australia
-
15>15c707602475 Muffler Exhaust Sec. Carbon Black. Except Australia. Includes 15 TO 15cMuffler Exhaust Sec. Carbon Black. Except Australia. Includes 15 TO 15c
-
15a707601560 Carbon Black Heat Shield. Except AustraliaCarbon Black Heat Shield. Except Australia
-
15b707601561 Carbon Black Muffler End Cap. Except AustraliaCarbon Black Muffler End Cap. Except Australia
-
15c293150219 Rivet-Pop 5/32. Except AustraliaRivet-Pop 5/32. Except Australia
-
20707602423 Muffler Exhaust PrimaryMuffler Exhaust Primary
-
30707602419 Pipe Exhaust, OutletPipe Exhaust, Outlet
-
40707601922 Exhaust ManifoldExhaust Manifold
-
50233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
60707601985 Exhaust SealExhaust Seal
-
70707600980 Exhaust ClampExhaust Clamp
-
80707600980 Exhaust ClampExhaust Clamp
-
90514054174 Exhaust GasketExhaust Gasket
-
150244006060 Socket Screw M10 X 60. AustraliaSocket Screw M10 X 60. Australia
-
160506150000 Washer 10 mm. AustraliaWasher 10 mm. Australia
-
170233101600 Hex. Flanged Nut M10. AustraliaHex. Flanged Nut M10. Australia
-
220415107100 SpringSpring
-
230207502044 Flanged Hex Screw M10 X 20. Except AustraliaFlanged Hex Screw M10 X 20. Except Australia
-
240>240a707601550 Muffler Support. Except Australia. Includes 240 TO 240aMuffler Support. Except Australia. Includes 240 TO 240a
-
240a293830167 Rubber Bushing. Except AustraliaRubber Bushing. Except Australia
-
245>245d707601940 Support. Australia. Includes 245 TO 245dSupport. Australia. Includes 245 TO 245d
-
245a707601683 Muffler Support. AustraliaMuffler Support. Australia
-
245b293830162 Anti-Vibration Rubber. AustraliaAnti-Vibration Rubber. Australia
-
245c707601657 Black Bushing. AustraliaBlack Bushing. Australia
-
245d707601589 Bushing. AustraliaBushing. Australia
-
270207561644 Hex.Fla. Screw M6 X 16, Scotch Grip. AustraliaHex.Fla. Screw M6 X 16, Scotch Grip. Australia
-
350707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
360707600661 Front BracketFront Bracket
-
370210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
460707600872 Oxygen SensorOxygen Sensor
-
470414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
500707601028 Inner Heat DeflectorInner Heat Deflector
-
510707601504 External Heat DeflectorExternal Heat Deflector
-
520207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
530234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
540250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
