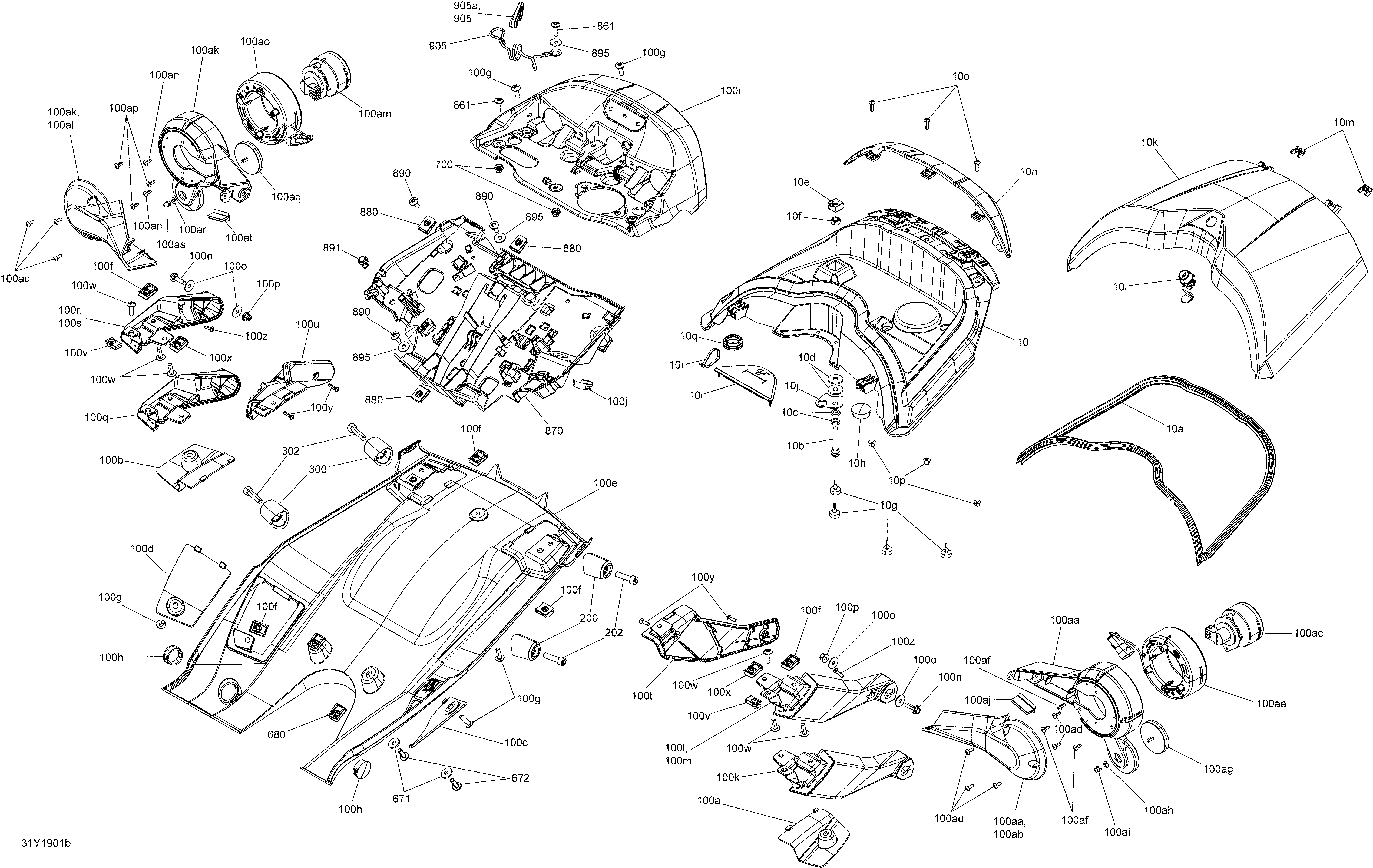

09- Body And Accessories Cargo для BRP 001 - F3 STD SE6 - 2019
-
№АртикулНазвание
-
10>10r219400494 Mono Seat Cowl Kit, Steel Black Metallic. Includes 10 TO 10rMono Seat Cowl Kit, Steel Black Metallic. Includes 10 TO 10r
-
10a293250336 Molding TrimMolding Trim
-
10b708001990 Seat StudSeat Stud
-
10c232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
10d234082410 Flat Washer 8 mmFlat Washer 8 mm
-
10e269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
10f232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10g708000759 Rubber StopperRubber Stopper
-
10h414916600 Black Nylon CapBlack Nylon Cap
-
10i708301604 Backrest TrimBackrest Trim
-
10j708001909 WasherWasher
-
10k708301417 Cover Trunk, Steel Black MetallicCover Trunk, Steel Black Metallic
-
10l219400737 Cross Country Saddlebag Lock KitCross Country Saddlebag Lock Kit
-
10m708301727 Opening LimiterOpening Limiter
-
10n708301416 TrimTrim
-
10o250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
10p233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
10q710002926 Grommet BootGrommet Boot
-
10r293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
100a708301449 LH Rear Cap. CAN / USALH Rear Cap. CAN / USA
-
100b708301450 RH Rear Cap. CAN / USARH Rear Cap. CAN / USA
-
100c708301513 LH Front CapLH Front Cap
-
100d708301514 RH Front CapRH Front Cap
-
100e708001415 Under Tail CoverUnder Tail Cover
-
100f250100208 Panel Nut M6Panel Nut M6
-
100g250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
100h414916600 Black Nylon CapBlack Nylon Cap
-
100i708002814 Support TaillightSupport Taillight
-
100j414916600 Black Nylon CapBlack Nylon Cap
-
100k708001622 LH Support. Australia, EuropeLH Support. Australia, Europe
-
100l708002222 Lh Flasher Support. JapanLh Flasher Support. Japan
-
100m708002222 Lh Flasher SupportLh Flasher Support
-
100n207662044 Hex. Flanged Screw M6 X 20. JapanHex. Flanged Screw M6 X 20. Japan
-
100o224060201 Flat Washer. JapanFlat Washer. Japan
-
100p233261414 Hex. Flanged Elastic Nut M6 x 1.0. JapanHex. Flanged Elastic Nut M6 x 1.0. Japan
-
100q708001623 RH Support. Australia, EuropeRH Support. Australia, Europe
-
100r708002223 Rh Flasher Support. JapanRh Flasher Support. Japan
-
100s708002223 Rh Flasher SupportRh Flasher Support
-
100t708001624 LH Support Cap. Australia, Europe, JapanLH Support Cap. Australia, Europe, Japan
-
100u708001625 RH Support Cap. Australia, Europe, JapanRH Support Cap. Australia, Europe, Japan
-
100v250100198 Panel Nut , M6 X 1.0. Australia, Europe, JapanPanel Nut , M6 X 1.0. Australia, Europe, Japan
-
100w250000446 Torx Screw M6 X 20, Scotch Grip. Australia, Europe, JapanTorx Screw M6 X 20, Scotch Grip. Australia, Europe, Japan
-
100x250100208 Panel Nut M6. Australia, Europe, JapanPanel Nut M6. Australia, Europe, Japan
-
100y250000759 Torx-Truss Pt K40 X 16. Australia, Europe, JapanTorx-Truss Pt K40 X 16. Australia, Europe, Japan
-
100z250000287 Flanged Torx Screw K40 X 16. JapanFlanged Torx Screw K40 X 16. Japan
-
100aa708002232 LH Housing Ass'yLH Housing Ass'y
-
100ab708002232 LH Housing Ass'yLH Housing Ass'y
-
100ac710004057 Rear FlasherRear Flasher
-
100ad250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
100ae710004056 Rear LightRear Light
-
100af250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
100ag705011221 Red ReflectorRed Reflector
-
100ah234051670 Flat Washer M5Flat Washer M5
-
100ai250100152 Cap Nut M5Cap Nut M5
-
100aj293250047 Neoprene SealNeoprene Seal
-
100ak708002233 RH Housing Ass'yRH Housing Ass'y
-
100al708002233 RH Housing Ass'yRH Housing Ass'y
-
100am710004057 Rear FlasherRear Flasher
-
100an250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
100ao710004056 Rear LightRear Light
-
100ap250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
100aq705011221 Red ReflectorRed Reflector
-
100ar234051670 Flat Washer M5Flat Washer M5
-
100as250100152 Cap Nut M5Cap Nut M5
-
100at293250047 Neoprene SealNeoprene Seal
-
100au250000577 Torx Truss K40 X 12. JapanTorx Truss K40 X 12. Japan
-
200708301525 Frame ProtectorFrame Protector
-
202250000823 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
300708301525 Frame ProtectorFrame Protector
-
302250000823 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
671234062670 Flat Washer, StainlessFlat Washer, Stainless
-
672250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
680250100208 Panel Nut M6Panel Nut M6
-
700250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
861250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
870708301698 Cargo Rear SupportCargo Rear Support
-
880250100208 Panel Nut M6Panel Nut M6
-
890250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
891293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
895250200164 Flat washer M6Flat washer M6
-
905>905a708002532 Lanyard. Includes 905 TO 905aLanyard. Includes 905 TO 905a
-
905a704905127 Cord DecalCord Decal
