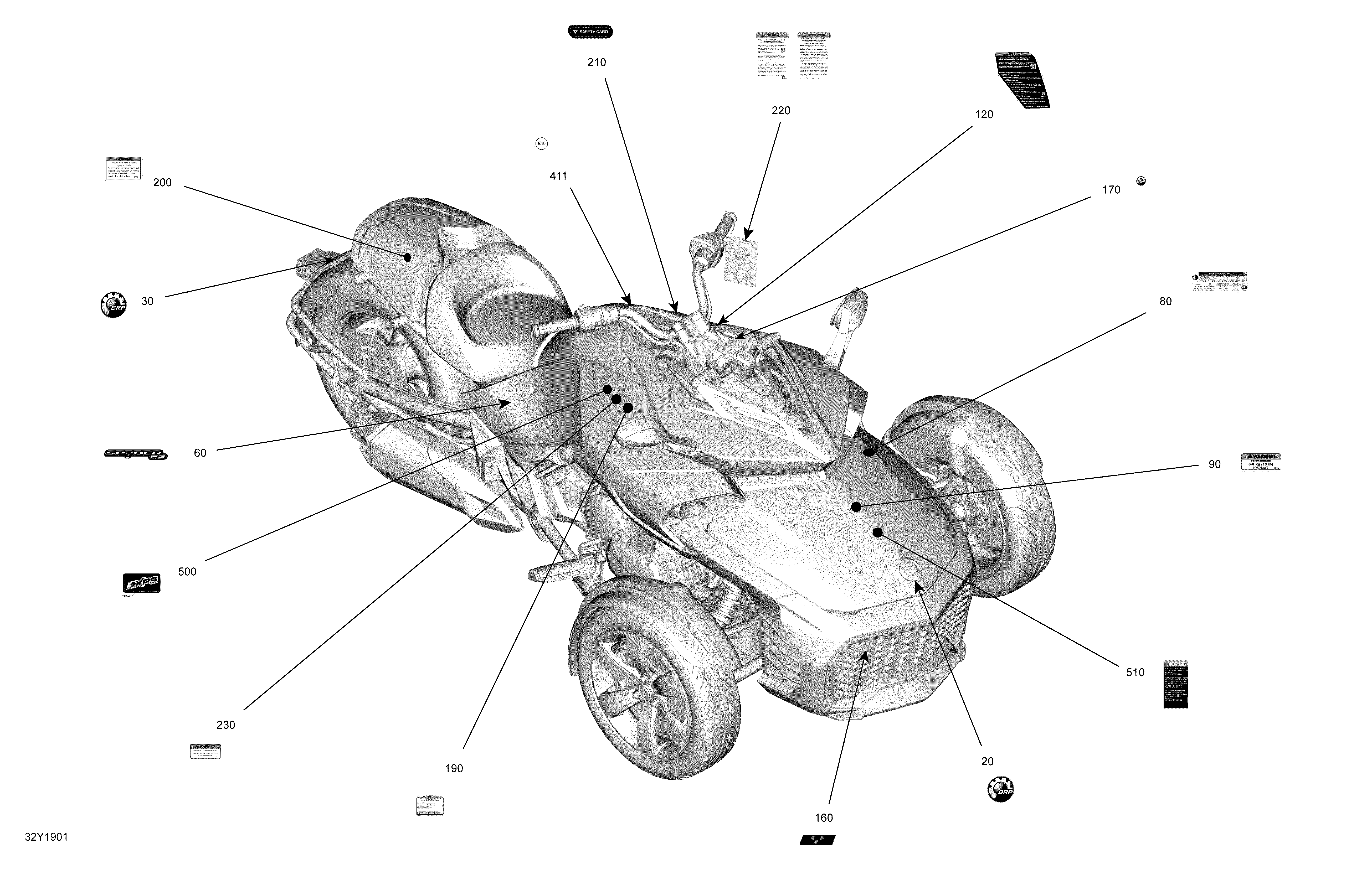

09- Decals для BRP 001 - F3 STD SE6 - 2019
-
№АртикулНазвание
-
20516008739 BRP Logo, 68mmBRP Logo, 68mm
-
30516008738 BRP Logo, 48mmBRP Logo, 48mm
-
60704904822 Spyder F3 Decal Steel BlackSpyder F3 Decal Steel Black
-
80704907625 Tire Pressure DecalTire Pressure Decal
-
90704905122 Warning Load Decal, 6.8 Kg (15lb)Warning Load Decal, 6.8 Kg (15lb)
-
120704907545 Warning Decal (how to drive)Warning Decal (how to drive)
-
160704905314 Domed Y LogoDomed Y Logo
-
170704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
190704904924 Caution Decal Oil Level, EnglishCaution Decal Oil Level, English
-
200704906121 Warning Decal, Passenger HandgripsWarning Decal, Passenger Handgrips
-
210704904673 Safety Card DecalSafety Card Decal
-
220704907713 Warning Label, ENGWarning Label, ENG
-
230704903119 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
411704907278 Decal - Ethanol Percantage (E10). Europe, AustraliaDecal - Ethanol Percantage (E10). Europe, Australia
-
500704907705 Decal, XPSDecal, XPS
-
510704904936 Notice Cleaning Decal, EnglishNotice Cleaning Decal, English
Все узлы модели:
- 00- Model Numbers
- 01- Clutch Cover - SE6
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft, Pistons and Balance Shaft
- 01- Cylinder Head
- 01- Engine
- 01- Engine Cooling
- 01- Engine Lubrication
- 01- Exhaust System
- 01- Gearbox Housing - SE6
- 01- Valve Cover
- 01- Valve Train
- 02- Air Intake
- 02- Air Intake Manifold and Throttle Body
- 02- Fuel System
- 03- Alternator
- 03- Electric Starter
- 05- Clutch - SE6
- 05- Gear Box
- 05- Shifting System - SE6
- 06- Hydraulic Brake
- 07- Drive, Front - Wheels
- 07- Steering
- 07- Suspension, Front
- 08- Drive System, Rear
- 08- Suspension, Rear
- 09- Body And Accessories Cargo
- 09- Body And Accessories Console
- 09- Body And Accessories Fairing
- 09- Body And Accessories Footrest
- 09- Body And Accessories Front Fenders
- 09- Body And Accessories Storage Tray
- • 09- Decals
- 09- Frame
- 09- Seat
- 09- Utilities
- 10- Electrical Harness Consol 710005454
- 10- Electrical Harness Consol 710005457
- 10- Electrical System Accessories
- 10- Electrical System Cargo
- 10- Electrical System Console
- 10- Electrical System Frame
- 10- Electrical System Suspension
- 10- Engine Harness and Electronic Module - SE6
