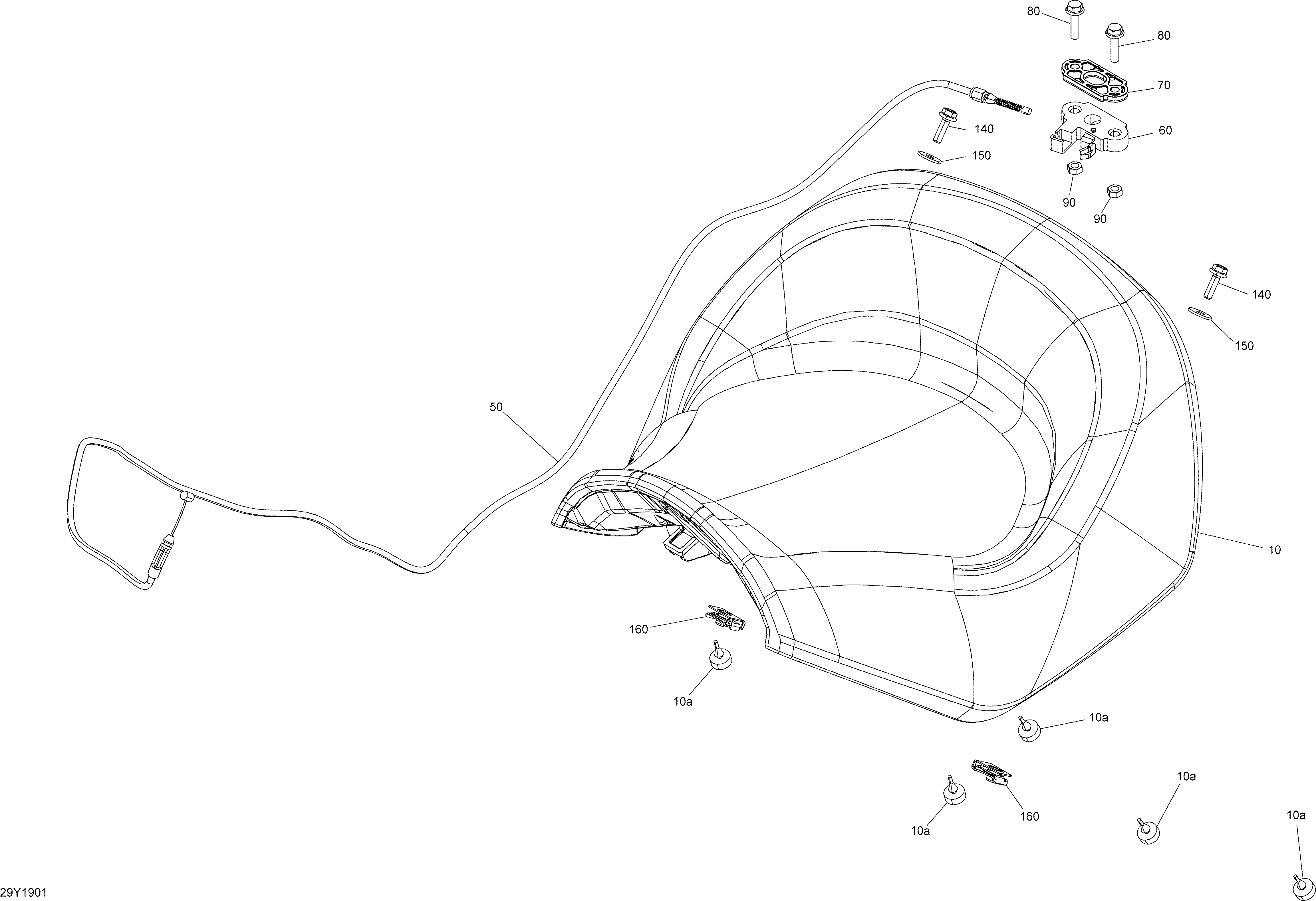

09- Seat для BRP 001 - F3 STD SE6 - 2019
-
№АртикулНазвание
-
10>10a708002805 Seat Driver Assy. Includes 10 TO 10aSeat Driver Assy. Includes 10 TO 10a
-
10a708000759 Rubber StopperRubber Stopper
-
50708001743 Seat CableSeat Cable
-
60705007379 LatchLatch
-
70708001771 BraceBrace
-
80207562556 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
90232061414 Hex. Nut M6Hex. Nut M6
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150250200082 Flat WasherFlat Washer
-
160250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
