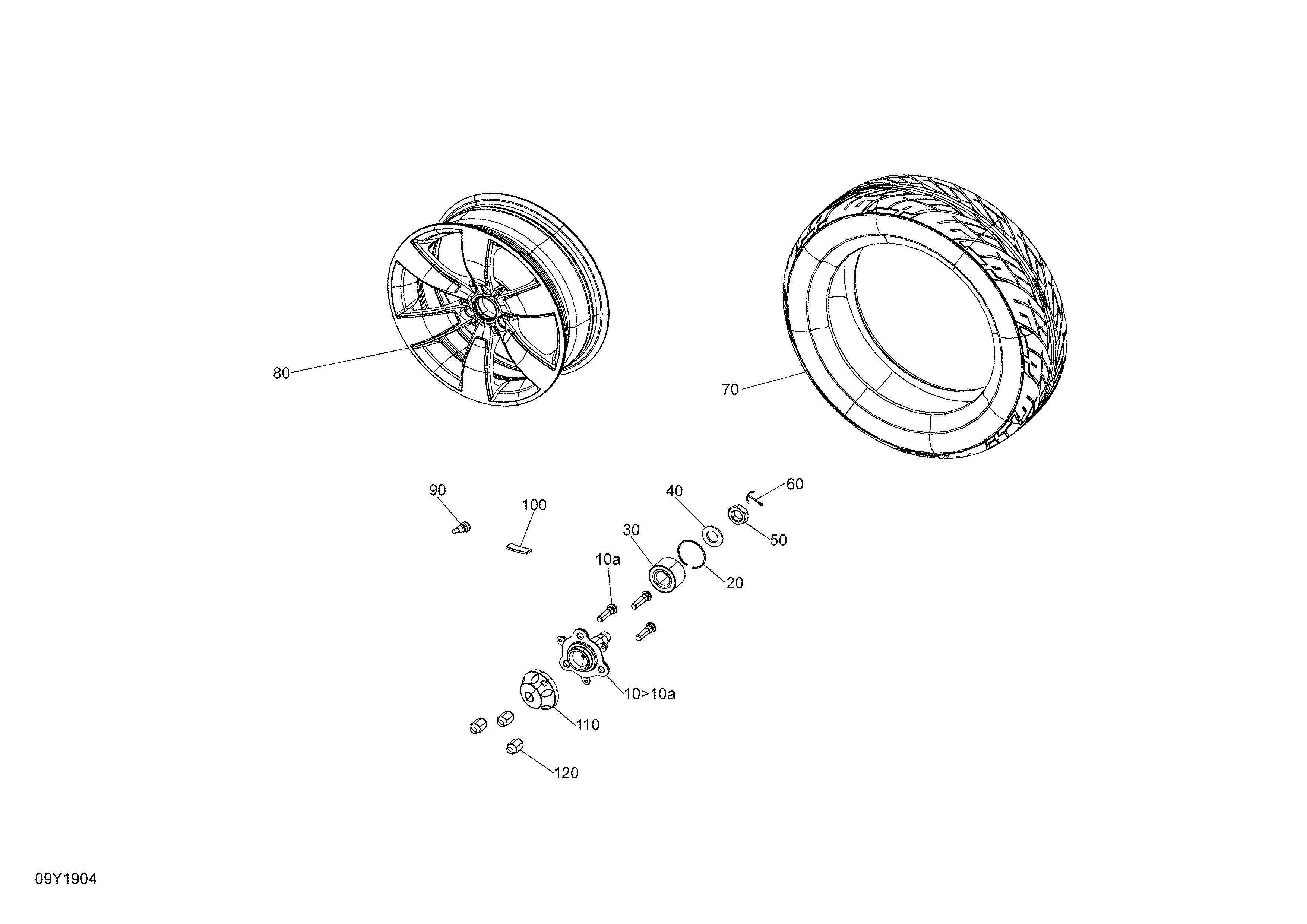

07- Drive, Front - Wheels для BRP 004 - F3 T SE6 - 2019
-
№АртикулНазвание
-
10>10a706202435 Hub. Includes 10 TO 10aHub. Includes 10 TO 10a
-
10a250300058 Wheel StudWheel Stud
-
20293370019 CirclipCirclip
-
30293350118 Cone BearingCone Bearing
-
40250200163 Flat WasherFlat Washer
-
50250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
60250400047 Cotter PinCotter Pin
-
70706202317 Front TireFront Tire
-
80706202713 Front Wheel, Black B-160Front Wheel, Black B-160
-
90705400193 Rim Valve With CapRim Valve With Cap
-
100705502106 Self Adhesive Weight, 5G 20mmSelf Adhesive Weight, 5G 20mm
-
110705401883 Wheel CapWheel Cap
-
120250100155 Wheel Nut M12 X 1.5, BlackWheel Nut M12 X 1.5, Black
