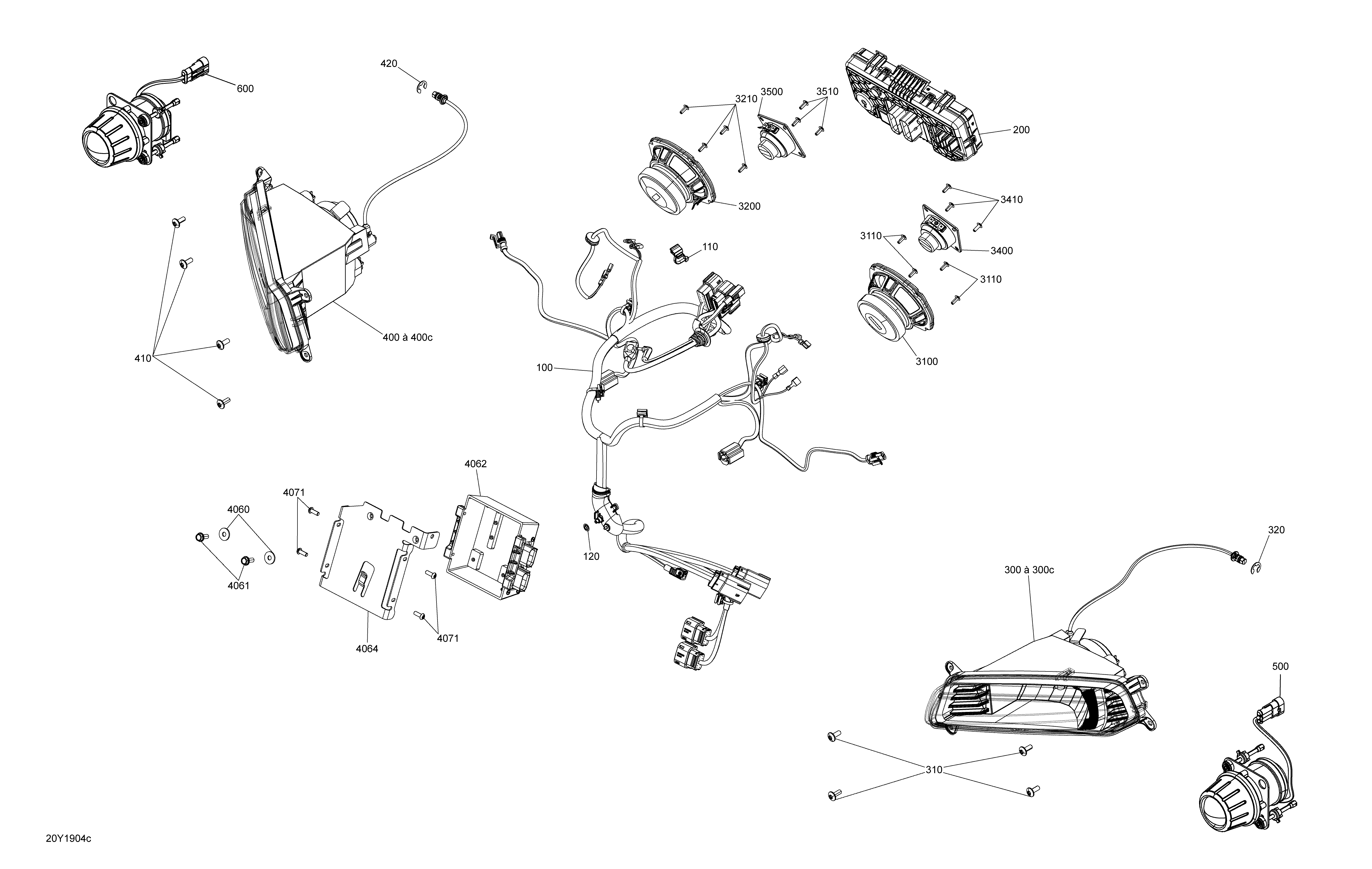

10- Electrical System Console для BRP 004 - F3 T SE6 - 2019
-
№АртикулНазвание
-
100710006485 Harness Consol. Canada/USAHarness Consol. Canada/USA
-
100710006486 Harness Consol. Except Canada/USAHarness Consol. Except Canada/USA
-
110293750063 Clip Tie-RapClip Tie-Rap
-
120250100034 Push NutPush Nut
-
200710006588 Multifunction GaugeMultifunction Gauge
-
300>300c710004701 LH Headlamp. Includes 300 TO 300cLH Headlamp. Includes 300 TO 300c
-
300a515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
300b219800280 Rubber Cap ProtectorRubber Cap Protector
-
300c219800281 SpringSpring
-
310250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
320293370013 E-CirclipE-Circlip
-
400>400c710004702 RH Headlamp. Includes 400 TO 400cRH Headlamp. Includes 400 TO 400c
-
400a515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
400b219800280 Rubber Cap ProtectorRubber Cap Protector
-
400c219800281 SpringSpring
-
410250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
420293370013 E-CirclipE-Circlip
-
500710004150 LH Low Beam. EuropeLH Low Beam. Europe
-
500710004152 LH Low Beam. Australia, JapanLH Low Beam. Australia, Japan
-
600710004151 RH Low Beam. EuropeRH Low Beam. Europe
-
600710004153 RH Low Beam. Australia, JapanRH Low Beam. Australia, Japan
-
3100710005433 4.5'' Speaker4.5'' Speaker
-
3110250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
3200710005433 4.5'' Speaker4.5'' Speaker
-
3210250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
3400710005432 2.5'' Speaker2.5'' Speaker
-
3410250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
3500710005432 2.5'' Speaker2.5'' Speaker
-
3510250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
4060234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4061210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4062710006444 Amplifier 6 x 20 WattsAmplifier 6 x 20 Watts
-
4064710005814 Amplifier HolderAmplifier Holder
-
4071235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
