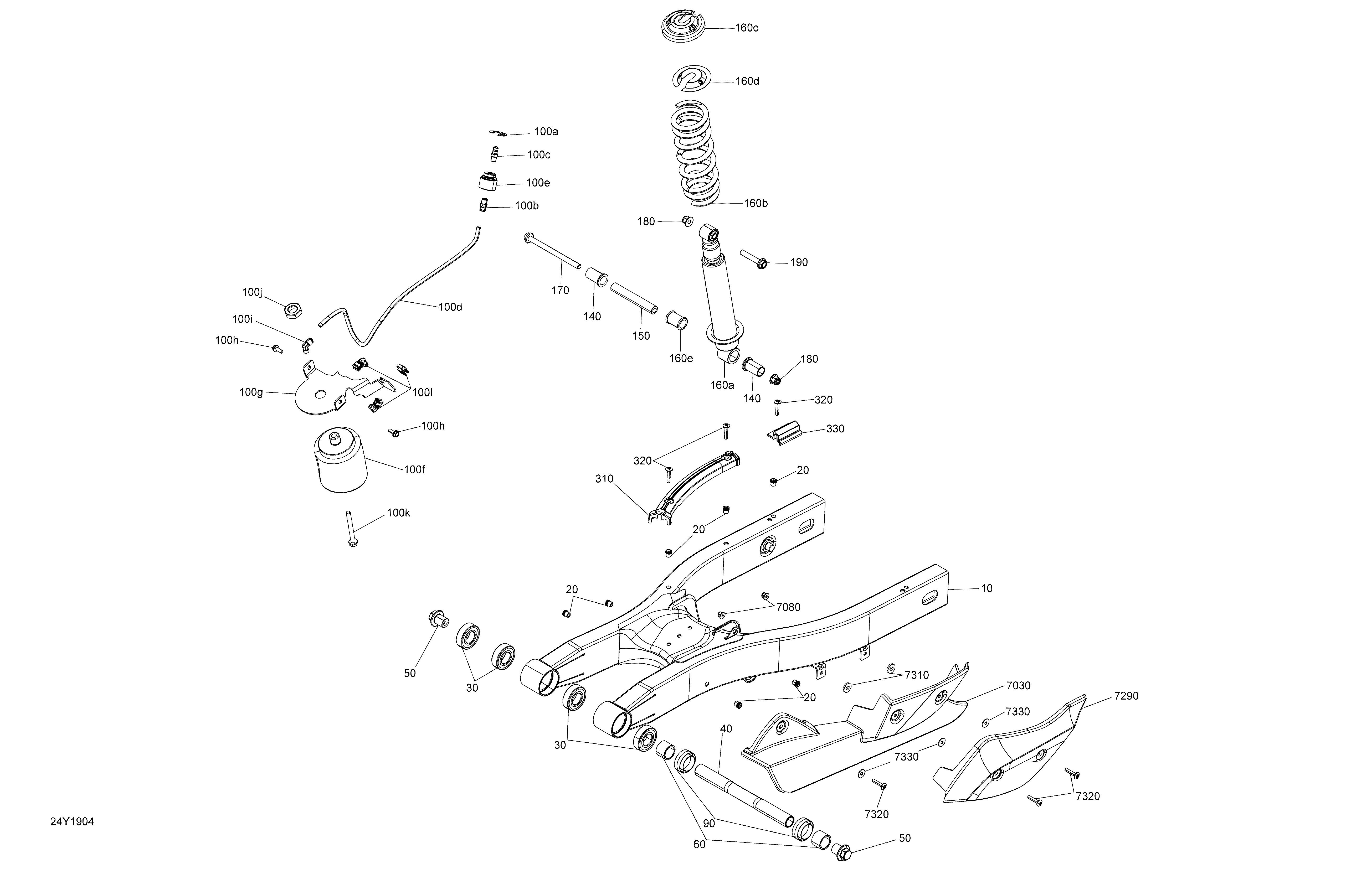

08- Suspension, Rear для BRP 004 - F3 T SE6 - 2019
-
№АртикулНазвание
-
10706001574 SWING ARMSWING ARM
-
20293450275 INSERTINSERT
-
30293350115 BALL BEARINGBALL BEARING
-
40706001182 SWING ARM AXLESWING ARM AXLE
-
50706001579 BOLT M20BOLT M20
-
60706001152 SPACERSPACER
-
90706001366 SLEEVESLEEVE
-
100a293370123 CIRCLIPCIRCLIP
-
100b706000869 CONNECTEUR * CONNECTORCONNECTEUR * CONNECTOR
-
100c706002797 AIR VALVEAIR VALVE
-
100d706002679 HOSEHOSE
-
100e706002656 PNEUMATIC CONNECTORPNEUMATIC CONNECTOR
-
100f219800175 AIR DAMPERAIR DAMPER
-
100g706002456 PLATEPLATE
-
100h210261050 SCREW-FORMING HEX.HD.FL.DIN.7500DSCREW-FORMING HEX.HD.FL.DIN.7500D
-
100i706001018 ELBOW 90°ELBOW 90°
-
100j250100119 JAM NUT M20JAM NUT M20
-
100k207687544 HEX. FLANGED SCREW M8 X 75HEX. FLANGED SCREW M8 X 75
-
100l710002899 CLIP TIE-RAPCLIP TIE-RAP
-
140706000410 SPACERSPACER
-
150706000409 SHOCK ABSORBER SHAFTSHOCK ABSORBER SHAFT
-
160a706001706 AMORTISSEUR *SHOCKAMORTISSEUR *SHOCK
-
160b706001707 RESSORT *SPRINGRESSORT *SPRING
-
160c503193781 SPRING STOPPERSPRING STOPPER
-
160d503193782 CAPCAP
-
160e503191609 URETHANE CUSHIONURETHANE CUSHION
-
170230604034 FLANGED HEX. SCREW M10 X 140FLANGED HEX. SCREW M10 X 140
-
180233201464 HEX. ELAST. FLANGED NUT M10HEX. ELAST. FLANGED NUT M10
-
190207605554 HEX.FLANGED SCREW M10 X 55HEX.FLANGED SCREW M10 X 55
-
310710004281 PROTECTORPROTECTOR
-
320250000843 TORX-TRUSS M/S NYLON PATCHTORX-TRUSS M/S NYLON PATCH
-
330710002145 HOSE SUPPORTHOSE SUPPORT
-
7030705002092 LOWER BELT GUARDLOWER BELT GUARD
-
7080233261494 HEX. ELASTIC FLANGED NUT M6HEX. ELASTIC FLANGED NUT M6
-
7290705009446 ENJOLIVEUR *GUARD-BELTENJOLIVEUR *GUARD-BELT
-
7310705003696 ADHESIVE SPACERADHESIVE SPACER
-
7320250000842 TORX-TRUSS M/S M6 X 30TORX-TRUSS M/S M6 X 30
-
7330234062670 FLAT WASHERFLAT WASHER
