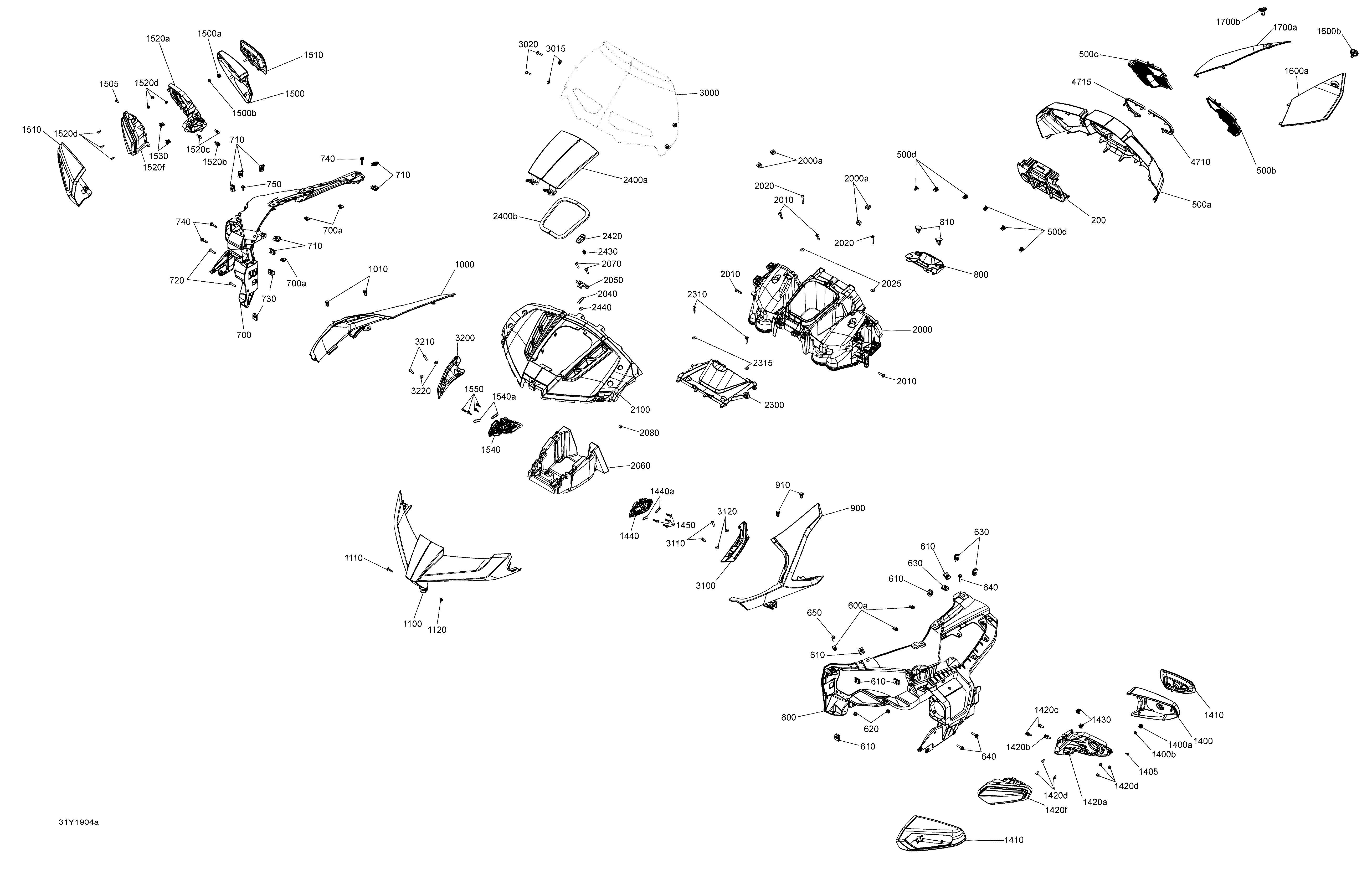

09- Body And Accessories Console для BRP 004 - F3 T SE6 - 2019
-
№АртикулНазвание
-
200705012178 Speedmeter SupportSpeedmeter Support
-
500a708400230 DashboardDashboard
-
500b708400231 LH GrillLH Grill
-
500c708400232 RH GrillRH Grill
-
500d517302785 Edge ClipEdge Clip
-
600>600a708400170 LH Consol Supp. Includes 600 TO 600aLH Consol Supp. Includes 600 TO 600a
-
600a250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
610250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
620233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
630250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
640250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
650210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
700>700a708400171 Rh Consol Supp. Includes 700 TO 700aRh Consol Supp. Includes 700 TO 700a
-
700a250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
710250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
720250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
730250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
740250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
750210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800708400205 Switch BezelSwitch Bezel
-
810708400046 CapCap
-
810708400046 CapCap
-
900708400340 LH Consol Fairing, B-160 Deep BlackLH Consol Fairing, B-160 Deep Black
-
910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1000708400338 RH Consol Fairing, B-160 Deep BlackRH Consol Fairing, B-160 Deep Black
-
1010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1100708400337 Nose Fairing, B-160 Deep BlackNose Fairing, B-160 Deep Black
-
1110250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1120233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
1400>1400b708400115 LH Mirror Shell, B-160 Deep Black. Includes 1400 TO 1400bLH Mirror Shell, B-160 Deep Black. Includes 1400 TO 1400b
-
1400a705010625 SpringSpring
-
1400b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
1405250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
1410708400335 Mirror Shell LH, B-160 Deep Black. Except AustraliaMirror Shell LH, B-160 Deep Black. Except Australia
-
1410708400346 Mirror Shell LH, B-160 Deep Black. AustraliaMirror Shell LH, B-160 Deep Black. Australia
-
1420a708400224 LH Mirror Support. AustraliaLH Mirror Support. Australia
-
1420b705006733 Flat Head Stud M5. AustraliaFlat Head Stud M5. Australia
-
1420c705006734 Round Head Stud M5. AustraliaRound Head Stud M5. Australia
-
1420d250000577 Torx Truss Screw K40 X 12. AustraliaTorx Truss Screw K40 X 12. Australia
-
1420e517302785 Edge Clip. AustraliaEdge Clip. Australia
-
1420f710006197 LH Front Flasher Unit. AustraliaLH Front Flasher Unit. Australia
-
1420a708400224 LH Mirror Support. Except AustraliaLH Mirror Support. Except Australia
-
1420b705006733 Flat Head Stud M5. Except AustraliaFlat Head Stud M5. Except Australia
-
1420c705006734 Round Head Stud M5. Except AustraliaRound Head Stud M5. Except Australia
-
1420d517302785 Edge Clip. Except AustraliaEdge Clip. Except Australia
-
1430517302785 Edge ClipEdge Clip
-
1440>1440a705008211 LH Plate Support Ass'y. Includes 1440 TO 1440aLH Plate Support Ass'y. Includes 1440 TO 1440a
-
1440a705006661 SpringSpring
-
1450250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1500>1500b708400118 RH Mirror Shell. Includes 1500 TO 1500bRH Mirror Shell. Includes 1500 TO 1500b
-
1500a705010625 SpringSpring
-
1500b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
1505250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
1510708400336 Mirror Shell RH, B-160 Deep Black. Except AustraliaMirror Shell RH, B-160 Deep Black. Except Australia
-
1510708400345 Mirror Shell RH, B-160 Deep Black. AustraliaMirror Shell RH, B-160 Deep Black. Australia
-
1520a708400225 RH Mirror Support. AustraliaRH Mirror Support. Australia
-
1520b705006733 Flat Head Stud M5. AustraliaFlat Head Stud M5. Australia
-
1520c705006734 Round Head Stud M5. AustraliaRound Head Stud M5. Australia
-
1520d250000577 Torx Truss Screw K40 X 12. AustraliaTorx Truss Screw K40 X 12. Australia
-
1520e517302785 Edge Clip. AustraliaEdge Clip. Australia
-
1520f710006198 RH Front Flasher Unit. AustraliaRH Front Flasher Unit. Australia
-
1520a708400225 RH Mirror Support. Except AustraliaRH Mirror Support. Except Australia
-
1520b705006733 Flat Head Stud M5. Except AustraliaFlat Head Stud M5. Except Australia
-
1520c705006734 Round Head Stud M5. Except AustraliaRound Head Stud M5. Except Australia
-
1520d517302785 Edge Clip. Except AustraliaEdge Clip. Except Australia
-
1530517302785 Edge ClipEdge Clip
-
1540>1540a705008210 RH Plate Support Ass'y. Includes 1540 TO 1540aRH Plate Support Ass'y. Includes 1540 TO 1540a
-
1540a705006661 SpringSpring
-
1550250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1600a708400238 LH Acces PanelLH Acces Panel
-
1600b708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
1700a708400239 RH Acces PanelRH Acces Panel
-
1700b708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
2000>2000a708400219 Upper Pod. Includes 2000 TO 2000aUpper Pod. Includes 2000 TO 2000a
-
2000a269501166 Nut Housing Ass'yNut Housing Ass'y
-
2010250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
2020250000732 Torx Screw NylonTorx Screw Nylon
-
2025234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
2040705006661 SpringSpring
-
2050708400215 ReceptacleReceptacle
-
2060708400103 Pod FoamPod Foam
-
2070250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2080233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
2100708400221 Upper FairingUpper Fairing
-
2300708400108 Column FairingColumn Fairing
-
2310250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2315234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
2400a708400217 Glove Box DoorGlove Box Door
-
2400b293250406 SealSeal
-
2420708400213 LeverLever
-
2430705011056 Stud M5Stud M5
-
2440234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
3100708400127 Wind. Base LH, Carbon BlackWind. Base LH, Carbon Black
-
3110250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
3120234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3200708400128 Wind. Base RH, Carbon BlackWind. Base RH, Carbon Black
-
3210250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
3220234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
4710705012349 LH Trim, Deep Black B-160LH Trim, Deep Black B-160
-
4715705012351 RH Trim, Deep Black B-160RH Trim, Deep Black B-160
