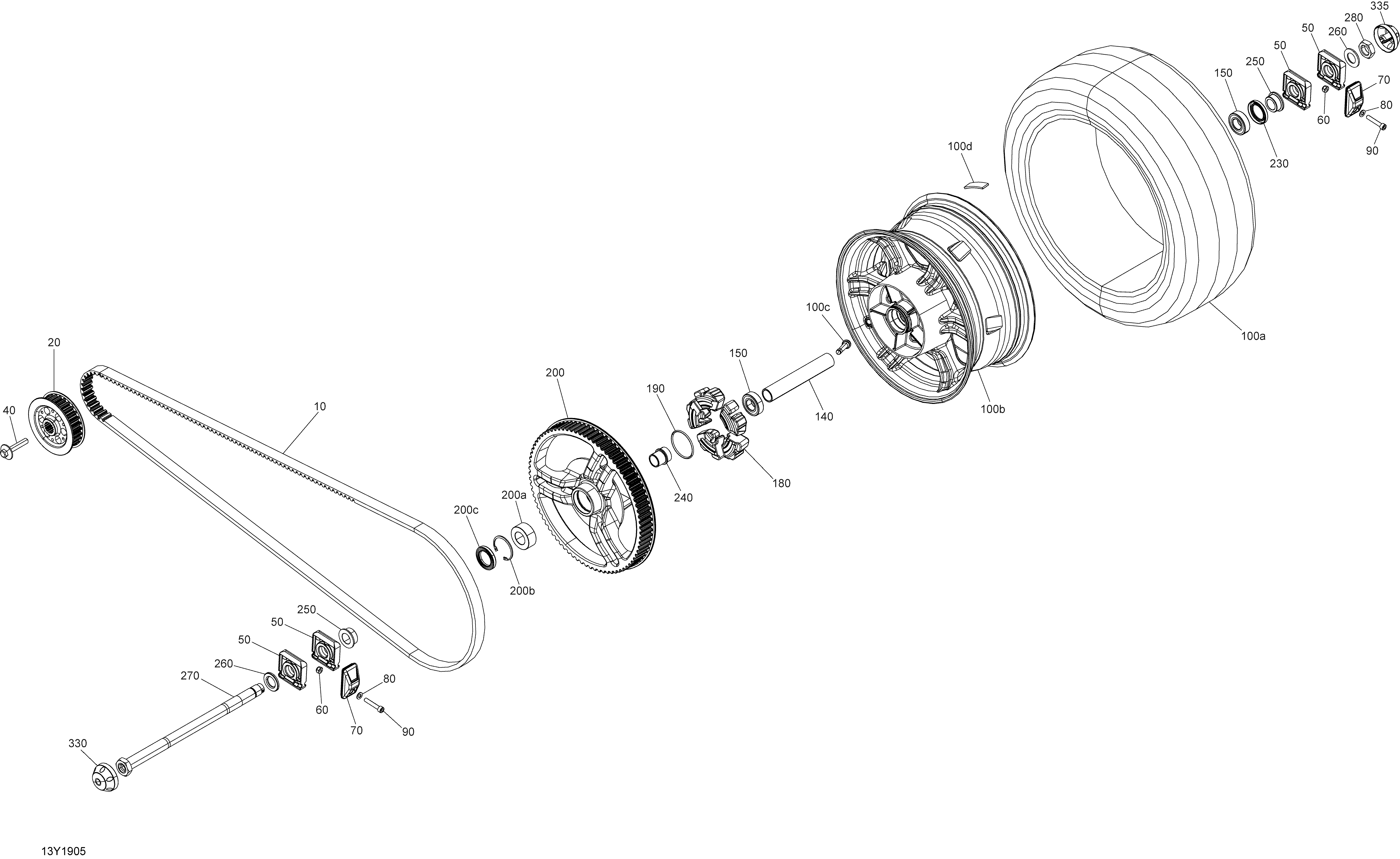

08- Drive System, Rear для BRP 005 - F3 LTD SE6 - 2019
-
№АртикулНазвание
-
10705501304 Drive BeltDrive Belt
-
20705502134 Sprocket 28 ThoothSprocket 28 Thooth
-
40250001017 Screw-Hex. Flange DIN.6921 S.GripScrew-Hex. Flange DIN.6921 S.Grip
-
50705502448 Sliding BlockSliding Block
-
60250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
70705502450 Adjustment SupportAdjustment Support
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90250000713 Socket Screw DIN.912Socket Screw DIN.912
-
100705502129 Rear WheelRear Wheel
-
100a705501464 Rear TireRear Tire
-
100b705501992 Black - Rear RimBlack - Rear Rim
-
100c705400193 Rim Valve With CapRim Valve With Cap
-
100d705502106 Self Adhesive Weight, 5G 20mmSelf Adhesive Weight, 5G 20mm
-
140705502093 SpacerSpacer
-
150293350115 Ball BearingBall Bearing
-
180705500736 DamperDamper
-
190293300124 O-RingO-Ring
-
200>200c705502016 Carbon Black - Pulley Ass'y, 79 Teeth. Includes 200 TO 200cCarbon Black - Pulley Ass'y, 79 Teeth. Includes 200 TO 200c
-
200a293350065 Double Row BearingDouble Row Bearing
-
200b293370053 CirclipCirclip
-
200c293200094 SealSeal
-
230293200094 SealSeal
-
240705500853 SpacerSpacer
-
250705501602 SpacerSpacer
-
260250200163 Flat WasherFlat Washer
-
270705501691 Rear Wheel AxleRear Wheel Axle
-
280250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
330705501081 Cap LHCap LH
-
335705501022 Cap RHCap RH
