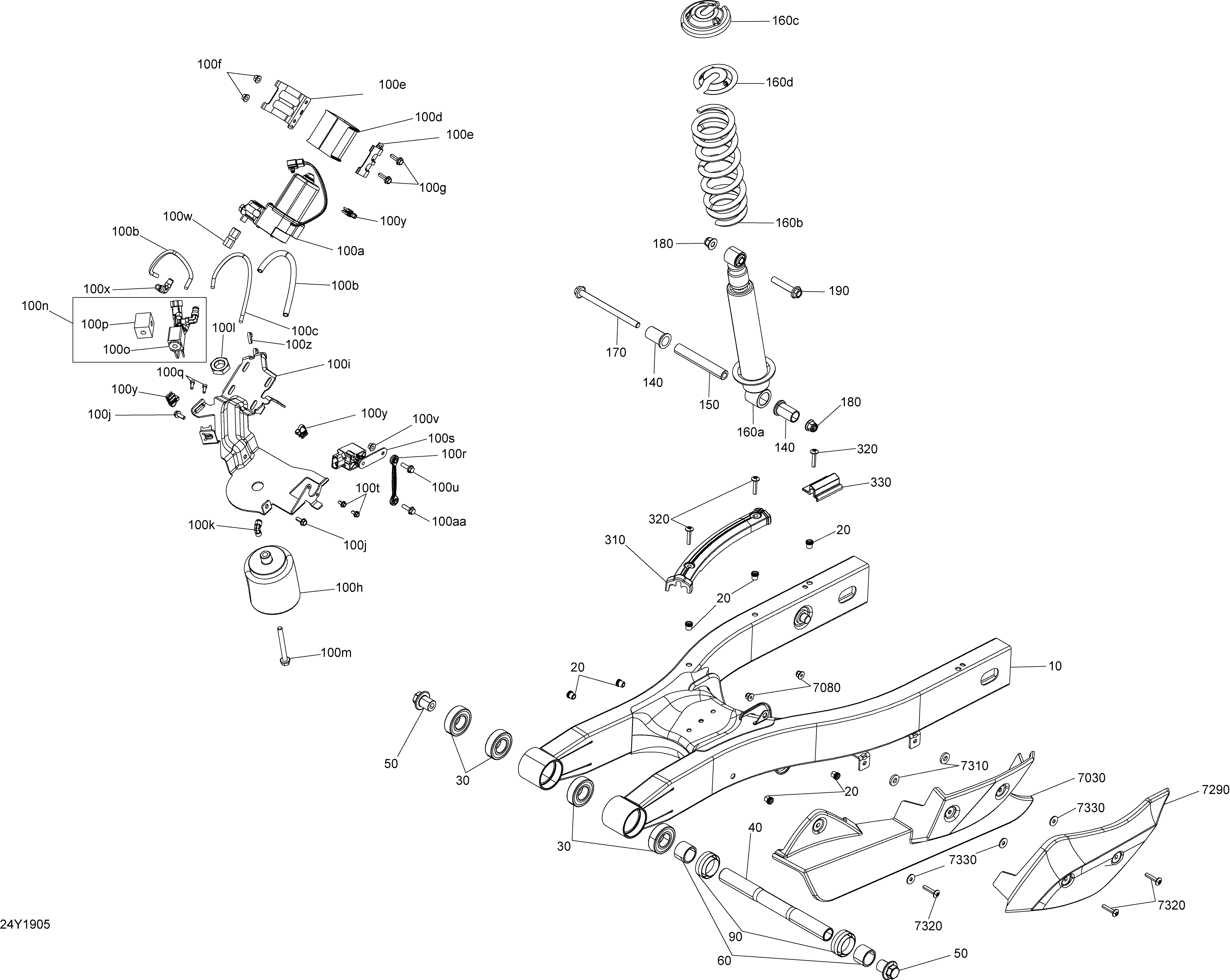

08- Suspension, Rear для BRP 005 - F3 LTD SE6 - 2019
-
№АртикулНазвание
-
10706001574 Swing ArmSwing Arm
-
20293450275 InsertInsert
-
30293350115 Ball BearingBall Bearing
-
40706001182 Swing Arm AxleSwing Arm Axle
-
50706001579 Bolt M20Bolt M20
-
60706001152 SpacerSpacer
-
90706001366 SleeveSleeve
-
100a706001349 CompressorCompressor
-
100b415129507 HoseHose
-
100c706001211 Hose 1/4Hose 1/4
-
100d706000631 Compressor IsolatorCompressor Isolator
-
100e503193103 Compressor BracketCompressor Bracket
-
100f233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
100g207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100h219800175 Air Damper KitAir Damper Kit
-
100i706001767 PlatePlate
-
100j210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
100k706001018 Elbow 90°Elbow 90°
-
100l250100119 Jam Nut M20Jam Nut M20
-
100m207687544 Hex. Flanged Screw M8 X 75Hex. Flanged Screw M8 X 75
-
100n706002169 Pressure Collector Ass'yPressure Collector Ass'y
-
100o706000928 Elbow 90°Elbow 90°
-
100p504151921 Plug 1/8”-27Plug 1/8”-27
-
100q205041254 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
100r706202505 Tie RodTie Rod
-
100s710004600 Position SensorPosition Sensor
-
100t207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
100u207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100v233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
100w706000831 Ckeck ValveCkeck Valve
-
100x706000928 Elbow 90°Elbow 90°
-
100y710002899 Clip Tie-RapClip Tie-Rap
-
100z414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
100aa207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
100bb515175442 Tubing 6 mmTubing 6 mm
-
140706000410 SpacerSpacer
-
150706000409 Shock Absorber ShaftShock Absorber Shaft
-
160a706001706 ShockShock
-
160b706001707 SpringSpring
-
160c503193781 Spring StopperSpring Stopper
-
160d503193782 CapCap
-
160e503191609 Urethane CushionUrethane Cushion
-
170230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
180233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
190207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
310710004281 ProtectorProtector
-
320250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
330710002145 Hose SupportHose Support
-
7030705002092 Lower Belt GuardLower Belt Guard
-
7080233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
7290705009446 Belt Guard MouldingBelt Guard Moulding
-
7310705003696 Adhesive SpacerAdhesive Spacer
-
7320250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
7330234062670 Flat Washer, StainlessFlat Washer, Stainless
