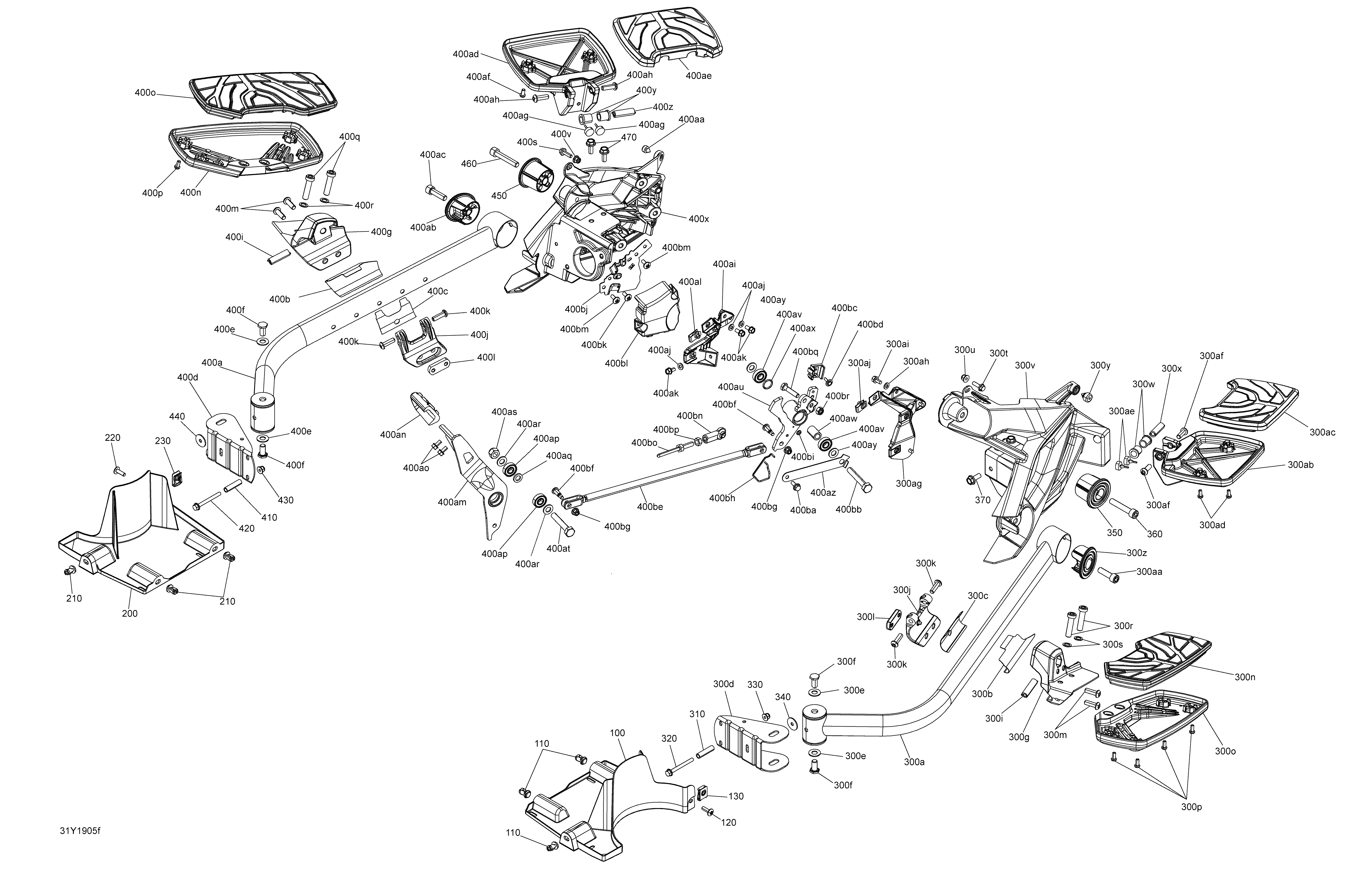

09- Body And Accessories Footrest для BRP 005 - F3 LTD SE6 - 2019
-
№АртикулНазвание
-
100705007785 LH Front Skid PlateLH Front Skid Plate
-
110293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
120250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
130250100208 Panel Nut M6Panel Nut M6
-
200705007786 RH Front Skid PlateRH Front Skid Plate
-
210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
220250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
230250100208 Panel Nut M6Panel Nut M6
-
300a705008955 Carbon Black - LH Footrest Support. Package DarkCarbon Black - LH Footrest Support. Package Dark
-
300a705008955 Carbon Black - LH Footrest Support. Package ChromeCarbon Black - LH Footrest Support. Package Chrome
-
300b705009452 LH Frame Protector OutsideLH Frame Protector Outside
-
300c705009025 LH Frame Protector InsideLH Frame Protector Inside
-
300d705008950 Tube SupportTube Support
-
300e506152582 WasherWasher
-
300f250000719 Hex. Cap Screw Full ThreadHex. Cap Screw Full Thread
-
300g705009466 Carbon Black LH Slider OutsideCarbon Black LH Slider Outside
-
300i705013628 Pivot PinPivot Pin
-
300j705013117 Black, LH Slider ClampBlack, LH Slider Clamp
-
300k250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
300l705008553 Back FlangeBack Flange
-
300m250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
300n705009454 Foot Board LhFoot Board Lh
-
300o705009229 Lh PadLh Pad
-
300p250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
300r250000997 Thin Socket Screw, Scotch Grip, M10Thin Socket Screw, Scotch Grip, M10
-
300s250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
300t207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
300u233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300v705008276 LH Bright Chrome Rear Footrest Support. Package ChromeLH Bright Chrome Rear Footrest Support. Package Chrome
-
300v705009401 LH Carbon Black Rear Footrest Support. Package DarkLH Carbon Black Rear Footrest Support. Package Dark
-
300w705008166 Spacer BushingSpacer Bushing
-
300x705013628 Pivot PinPivot Pin
-
300y293830005 Rubber BumperRubber Bumper
-
300z705010203 Pivot CapPivot Cap
-
300aa244003560 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
300ab705010759 Carbon Black - RH Foot BoardCarbon Black - RH Foot Board
-
300ac705009234 Foot Board Pad, PassengerFoot Board Pad, Passenger
-
300ad250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
300ae708000759 Rubber StopperRubber Stopper
-
300af250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
300ag705008961 LH Fairing SupportLH Fairing Support
-
300ah234061670 Flat Washer 6 mmFlat Washer 6 mm
-
300ai210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
300aj250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
310705008219 SpacerSpacer
-
320250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
330233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
340250200029 Washer M6Washer M6
-
350705010202 Pivot CapPivot Cap
-
360205505560 Socket Head ScrewSocket Head Screw
-
370207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
400a705008954 RH Carbon Black Footrest Support. Package ChromeRH Carbon Black Footrest Support. Package Chrome
-
400a705008954 RH Carbon Black Footrest Support. Package DarkRH Carbon Black Footrest Support. Package Dark
-
400b705009453 Rh ProtectorRh Protector
-
400c705009023 RH Frame Protector InsideRH Frame Protector Inside
-
400d705008950 Tube SupportTube Support
-
400e506152582 WasherWasher
-
400f250000719 Hex. Cap Screw Full ThreadHex. Cap Screw Full Thread
-
400g705009463 SliderSlider
-
400i705013628 Pivot PinPivot Pin
-
400j705013120 Black, RH Slider ClampBlack, RH Slider Clamp
-
400k250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
400l705008553 Back FlangeBack Flange
-
400m250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
400n705009455 Foot Board RhFoot Board Rh
-
400o705009230 Rh PadRh Pad
-
400p250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
400q250000997 Thin Socket Screw, Scotch Grip, M10Thin Socket Screw, Scotch Grip, M10
-
400r250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
400s207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
400v233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
400x705008277 RH Bright Chrome Rear Footrest Support. Package ChromeRH Bright Chrome Rear Footrest Support. Package Chrome
-
400x705009402 RH Carbon Black Rear Footrest Support. Package DarkRH Carbon Black Rear Footrest Support. Package Dark
-
400y705008166 Spacer BushingSpacer Bushing
-
400z705013628 Pivot PinPivot Pin
-
400aa293830005 Rubber BumperRubber Bumper
-
400ab705010203 Pivot CapPivot Cap
-
400ac244003560 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
400ad705010759 Carbon Black - RH Foot BoardCarbon Black - RH Foot Board
-
400ae705009234 Foot Board Pad, PassengerFoot Board Pad, Passenger
-
400af250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
400ag708000759 Rubber StopperRubber Stopper
-
400ah250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
400ai705008962 RH Fairing SupportRH Fairing Support
-
400aj234061670 Flat Washer 6 mmFlat Washer 6 mm
-
400ak210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
400al250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
400am705601419 Brake PedalBrake Pedal
-
400an705004933 Rubber PadRubber Pad
-
400ao210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
400ap705600458 BearingBearing
-
400aq503192496 WasherWasher
-
400ar503183800 WasherWasher
-
400as233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
400at207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
400au705601308 Master Cylinder RockerMaster Cylinder Rocker
-
400av705600458 BearingBearing
-
400aw705600541 BushingBushing
-
400ax293300191 O-RingO-Ring
-
400ay503183800 WasherWasher
-
400az705601229 Locking TabLocking Tab
-
400ba207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
400bb207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
400bc705601375 Brake Master Cylinder StopperBrake Master Cylinder Stopper
-
400bd250000725 Screw M4 X 16Screw M4 X 16
-
400be219400628 Brake Linkage Kit (410.7 mm)Brake Linkage Kit (410.7 mm)
-
400bf250000714 Flanged Screw M6 X 26Flanged Screw M6 X 26
-
400bg233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
400bh705601350 Quick-Attach BracketQuick-Attach Bracket
-
400bi250100178 Push NutPush Nut
-
400bj705601342 Light Switch BracketLight Switch Bracket
-
400bk250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
400bl705601343 Switch DeflectorSwitch Deflector
-
400bm250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
400bn705601506 Rod EndRod End
-
400bo705600468 Piston RodPiston Rod
-
400bp232081414 Hex. Nut M8Hex. Nut M8
-
400bq207283544 Hexagonal Head Cap Screw M8 X 35Hexagonal Head Cap Screw M8 X 35
-
400br232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
410705008219 SpacerSpacer
-
420250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
430233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440250200029 Washer M6Washer M6
-
450705010202 Pivot CapPivot Cap
-
460205505560 Socket Head ScrewSocket Head Screw
-
470207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
