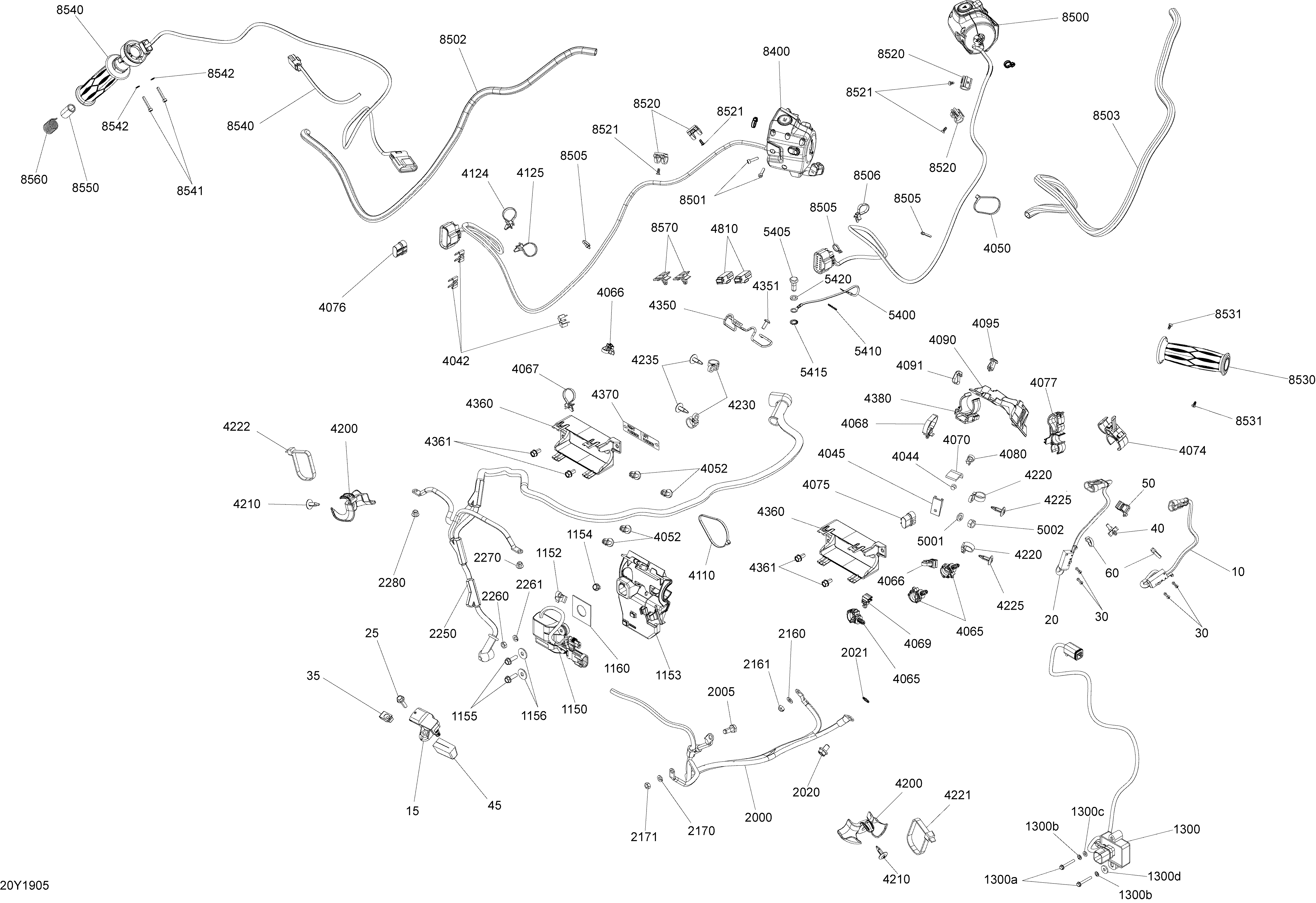

10- Electrical System Accessories для BRP 005 - F3 LTD SE6 - 2019
-
№АртикулНазвание
-
10710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
15707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
20710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
25207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
30293150150 Pop RivetPop Rivet
-
35250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
40293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
45707000586 Foam FilterFoam Filter
-
50710002899 Clip Tie-RapClip Tie-Rap
-
60293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
1150710004916 Dess ModuleDess Module
-
1152293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
1153710004308 Wire SupportWire Support
-
1154210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
1155210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
1156234062410 Flat Washer 6 mmFlat Washer 6 mm
-
1160293830091 Rubber BumperRubber Bumper
-
1300>1300d710006467 CCK Module Assy. Australia. Includes 1300 TO 1300dCCK Module Assy. Australia. Includes 1300 TO 1300d
-
1300a250000955 Hex. Screw Forming M4 X 30. AustraliaHex. Screw Forming M4 X 30. Australia
-
1300b211100002 Push Nut. AustraliaPush Nut. Australia
-
1300c213200016 Flat Washer, Emhart. AustraliaFlat Washer, Emhart. Australia
-
1300d234052400 Flat Washer 5 mm, Stainless. AustraliaFlat Washer 5 mm, Stainless. Australia
-
2000710006399 Starter Cable AssyStarter Cable Assy
-
2005207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
2020207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
2021234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
2160234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2161232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2170234161601 Lock Washer Helical M6Lock Washer Helical M6
-
2171232061600 Hex. Nut M6Hex. Nut M6
-
2250710005026 Pos CablePos Cable
-
2260232061600 Hex. Nut M6Hex. Nut M6
-
2261234161601 Lock Washer Helical M6Lock Washer Helical M6
-
2270293150173 Rivet 6,4 mmRivet 6,4 mm
-
2280293150173 Rivet 6,4 mmRivet 6,4 mm
-
4042710001222 LockLock
-
4044390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
4045270000141 ClipClip
-
4050293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4052293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4065293750083 Support CableSupport Cable
-
4066293750058 2-Pieces Fixing Tie Rap for Edges2-Pieces Fixing Tie Rap for Edges
-
4067293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4068710004947 Tie RapTie Rap
-
4069293750063 Clip Tie-RapClip Tie-Rap
-
4070709000401 Rubber PadRubber Pad
-
4074710004613 SupportSupport
-
4075710004901 Connector Plug. Canada/USAConnector Plug. Canada/USA
-
4076710004901 Connector Plug. Canada/USAConnector Plug. Canada/USA
-
4077710004669 Wire SupportWire Support
-
4080414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4090710004794 Harness HolderHarness Holder
-
4091414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4095293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4110293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4124293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4125293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4200710004931 Harness HolderHarness Holder
-
4210414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4220710004424 Tie RapTie Rap
-
4221414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4222414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4225414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4230710004424 Tie RapTie Rap
-
4235414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4350709401619 Wire GuideWire Guide
-
4351250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
4360710004472 Fuse Holder SupportFuse Holder Support
-
4361210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4370710003077 R/L Label DecalR/L Label Decal
-
4380710004299 Cable SupportCable Support
-
5001234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
5002232081414 Hex. Nut M8Hex. Nut M8
-
5400710006436 Fuel Tank CableFuel Tank Cable
-
5405207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
5410250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
5415234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
5420250200111 WasherWasher
-
8400710006576 Housing-Switch LHHousing-Switch LH
-
8500710004583 Housing-Switch RHHousing-Switch RH
-
8501250000494 Socket Screw, M4 X 16 Scotch GripSocket Screw, M4 X 16 Scotch Grip
-
8502710004231 Braided SleeveBraided Sleeve
-
8503710004231 Braided SleeveBraided Sleeve
-
8505293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8506293750074 Tie RapTie Rap
-
8520709401804 Wire GuideWire Guide
-
8521250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
8530709400625 Heating Handle GripHeating Handle Grip
-
8531250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
8535293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8540709400929 Throttle Heating GripThrottle Heating Grip
-
8541205042594 Socket Screw, M4 X 25Socket Screw, M4 X 25
-
8542234040600 Flat Washer 4 mmFlat Washer 4 mm
-
8545293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8550709401801 BushingBushing
-
8560709401937 SpringSpring
-
8570515175283 Housing SupportHousing Support
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
