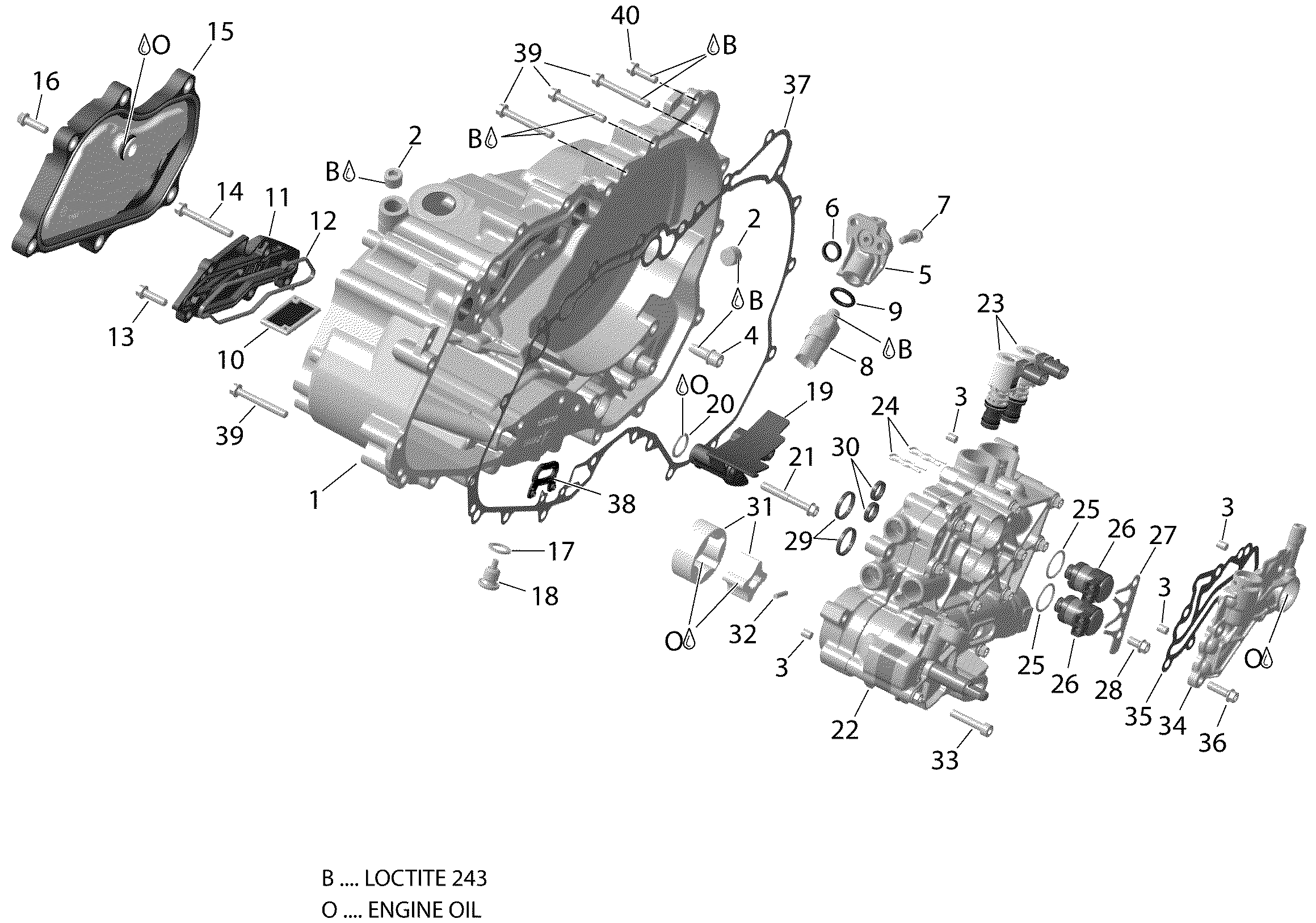

01- Clutch Cover - SE6 для BRP 003 - RT LTD SE6 - 2019
-
№АртикулНазвание
-
1420212907 Clutch Cover Ass'y. Includes 1 to 4Clutch Cover Ass'y. Includes 1 to 4
-
2420641308 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
3420232210 Center PinCenter Pin
-
4420841732 Torx Screw M8 X 18Torx Screw M8 X 18
-
5420212173 Pressure Sensor HousingPressure Sensor Housing
-
6420450310 GasketGasket
-
7420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420264166 Oil Pressure Switch Assy. Includes 8 to 9Oil Pressure Switch Assy. Includes 8 to 9
-
9420450350 O-RingO-Ring
-
10420656990 Oil SieveOil Sieve
-
11420210870 Oil Duct CoverOil Duct Cover
-
12420250630 GasketGasket
-
13420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
14420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
15420211156 Oil Filter CoverOil Filter Cover
-
16420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
17420250640 Sealing RingSealing Ring
-
18420241782 Magnetic Drain Plug M12 X 1.5Magnetic Drain Plug M12 X 1.5
-
19420224085 Oil Guiding PlateOil Guiding Plate
-
20420430220 O-RingO-Ring
-
21420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
22420210982 Hydraulic Housing Ass'y. Includes 22 to 30Hydraulic Housing Ass'y. Includes 22 to 30
-
23420264212 Solenoid Valve 3/2Solenoid Valve 3/2
-
24420939040 Spring ClipSpring Clip
-
25420656792 Solenoid Valve Ass'y. Includes 25 to 26Solenoid Valve Ass'y. Includes 25 to 26
-
27420651701 Retaining PlateRetaining Plate
-
28420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
29420450240 GasketGasket
-
30420450310 GasketGasket
-
31420456290 Oil Pump RotorOil Pump Rotor
-
32420232731 Needle PinNeedle Pin
-
33420840880 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
34420211124 Valve HousingValve Housing
-
35420450290 GasketGasket
-
36420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
37420450032 Gasket Ass`y. Includes 37 to 38Gasket Ass`y. Includes 37 to 38
-
39420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
40420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
