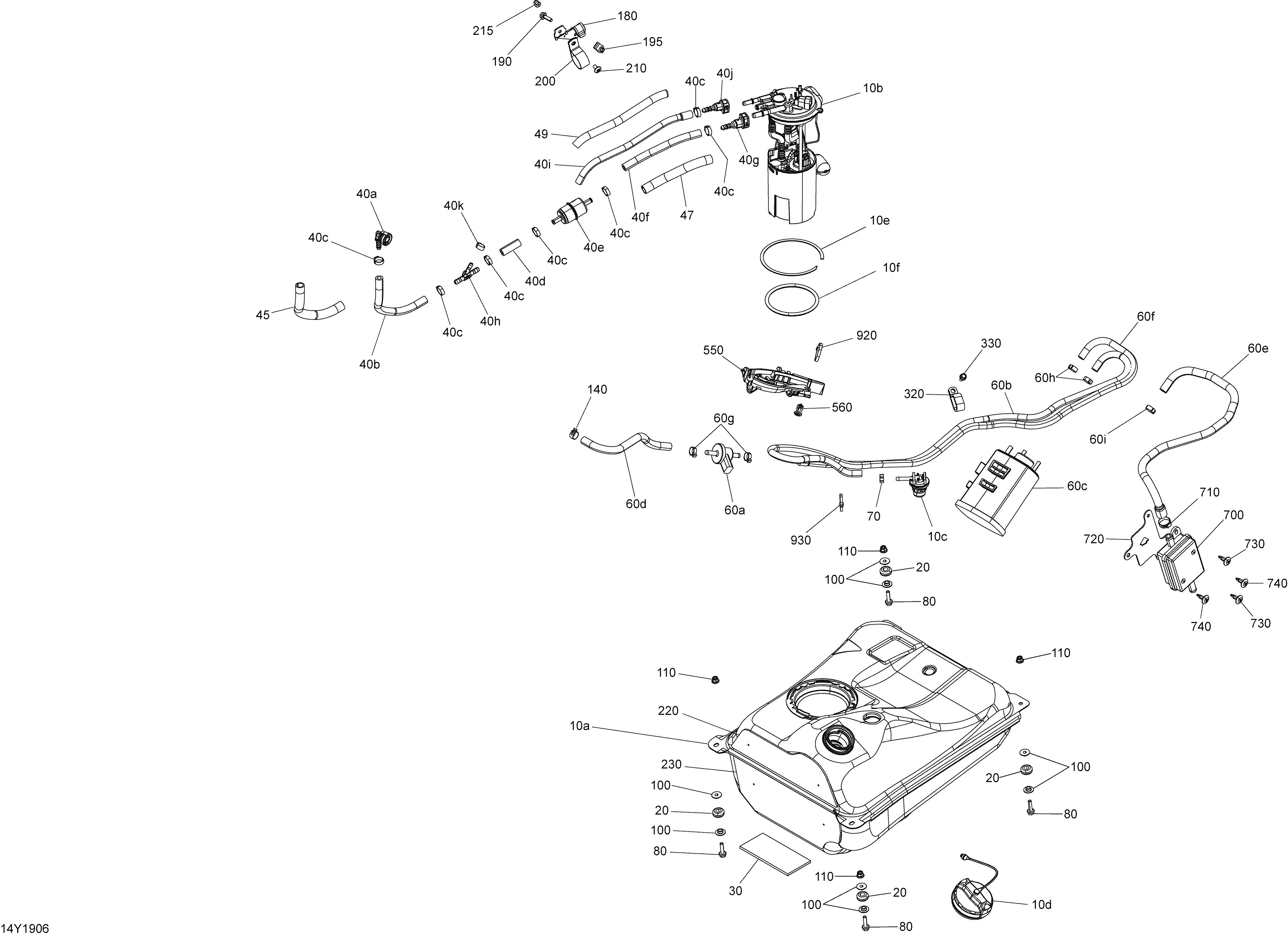

02- Fuel System для BRP 003 - RT LTD SE6 - 2019
-
№АртикулНазвание
-
10a219800299 Fuel TankFuel Tank
-
10b709000370 Fuel Pump ModuleFuel Pump Module
-
10c709000413 ROPS (roll-over protection structure)ROPS (roll-over protection structure)
-
10d709000683 Gaz CapGaz Cap
-
10e219800248 Seal KitSeal Kit
-
10f219800248 Seal KitSeal Kit
-
20709000582 GrommetGrommet
-
30709000130 CarpetCarpet
-
40a293710105 Elbow Fitting 90°Elbow Fitting 90°
-
40b709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
40c293650125 Oetiker ClampOetiker Clamp
-
40d709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
40e709001016 Fuel FilterFuel Filter
-
40f709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
40g709000684 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
40h709000453 Y FittingY Fitting
-
40i709000776 Formed HoseFormed Hose
-
40j709000686 Quick FittingQuick Fitting
-
40k293650046 Oetiker ClampOetiker Clamp
-
45415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
47513033231 Protector Tube, 16 mmProtector Tube, 16 mm
-
49409901800 Tubing 13 mmTubing 13 mm
-
60a709000443 Bleed ValveBleed Valve
-
60b709000656 Formed HoseFormed Hose
-
60c709000090 Vapor CanisterVapor Canister
-
60d709000657 HoseHose
-
60e709000523 Formed HoseFormed Hose
-
60f709000658 HoseHose
-
60g293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
60h293650025 Oetiker Gear ClampOetiker Gear Clamp
-
60i293650140 Oetiker ClampOetiker Clamp
-
70293650025 Oetiker Gear ClampOetiker Gear Clamp
-
80207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
100709000716 BushingBushing
-
110233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
140513033029 Universal Spring ClampUniversal Spring Clamp
-
180709000452 Fuel Filter SupportFuel Filter Support
-
190207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
195250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
200513033047 Open ClampOpen Clamp
-
210250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
215232361493 Domed Nut M6Domed Nut M6
-
220709000157 Reflective SheetReflective Sheet
-
230709000340 Reflective SheetReflective Sheet
-
320709000057 Open ClampOpen Clamp
-
330210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
550709000814 Hose SupportHose Support
-
560293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
700709000524 Air FilterAir Filter
-
710513033865 Spring ClampSpring Clamp
-
720709000526 Filter SupportFilter Support
-
730414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
740414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
920414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
930414115200 Tie-Rap 180 mmTie-Rap 180 mm
