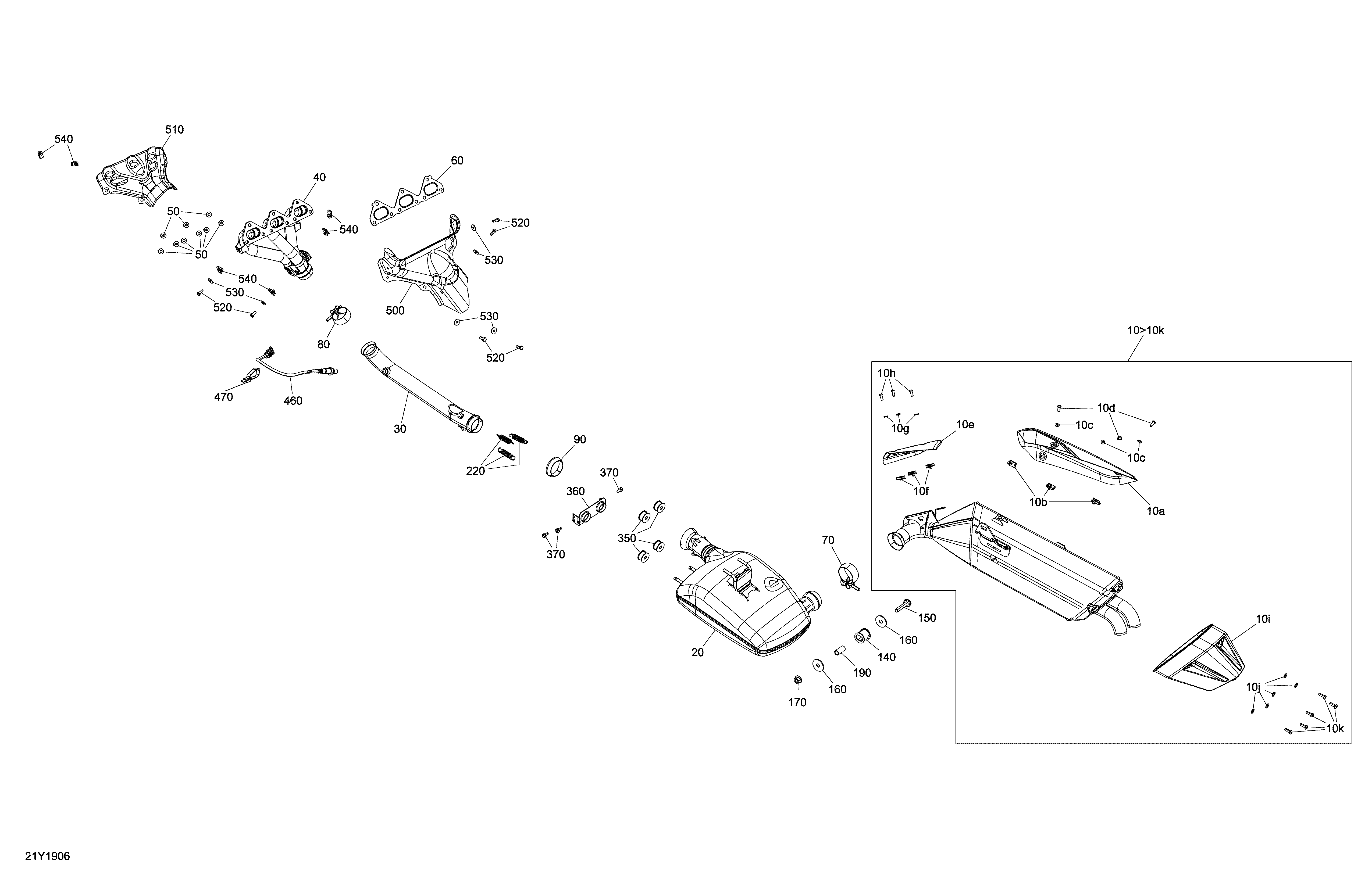

01- Exhaust System для BRP 003 - RT LTD SE6 - 2019
-
№АртикулНазвание
-
10>10k707602441 Muffler Exhaust Secondary B-322. Package DARK. Includes 10 TO 10kMuffler Exhaust Secondary B-322. Package DARK. Includes 10 TO 10k
-
10>10k707602602 Muffler Exhaust Secondary Chrome. Package CHROME. Includes 10 TO 10kMuffler Exhaust Secondary Chrome. Package CHROME. Includes 10 TO 10k
-
10a707601381 Carbon Black Heat Shield. Package DARKCarbon Black Heat Shield. Package DARK
-
10a707601383 Chrome Heat Shield. Package CHROMEChrome Heat Shield. Package CHROME
-
10b250100198 Panel Nut , M6 X 1.0. Package DARKPanel Nut , M6 X 1.0. Package DARK
-
10c234061670 Flat Washer 6 mm. Package DARKFlat Washer 6 mm. Package DARK
-
10c234061600 Flat Washer M6, Stainless. Package CHROMEFlat Washer M6, Stainless. Package CHROME
-
10d250000616 Socket Screw, M6 X 16. Package DARKSocket Screw, M6 X 16. Package DARK
-
10d250000437 Socket Screw, M6 X 16. Package CHROMESocket Screw, M6 X 16. Package CHROME
-
10e707601054 Carbon Black Heat Shield. Package DARKCarbon Black Heat Shield. Package DARK
-
10f250100198 Panel Nut , M6 X 1.0. Package DARKPanel Nut , M6 X 1.0. Package DARK
-
10g234061670 Flat Washer 6 mm. Package DARKFlat Washer 6 mm. Package DARK
-
10h250000616 Socket Screw, M6 X 16. Package DARKSocket Screw, M6 X 16. Package DARK
-
10i707601048 Trim Mufller Rear B-322. Package DARKTrim Mufller Rear B-322. Package DARK
-
10i707602605 Trim Mufller Rear Chome. Package CHROMETrim Mufller Rear Chome. Package CHROME
-
10j234061670 Flat Washer 6 mm. Package DARKFlat Washer 6 mm. Package DARK
-
10j234061600 Flat Washer M6, Stainless. Package CHROMEFlat Washer M6, Stainless. Package CHROME
-
10k250000616 Socket Screw, M6 X 16. Package DARKSocket Screw, M6 X 16. Package DARK
-
10k250000437 Socket Screw, M6 X 16. Package CHROMESocket Screw, M6 X 16. Package CHROME
-
20707602423 Muffler Exhaust PrimaryMuffler Exhaust Primary
-
30707602419 Pipe Exhaust, OutletPipe Exhaust, Outlet
-
40707601922 Exhaust ManifoldExhaust Manifold
-
50233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
60707601985 Exhaust SealExhaust Seal
-
70707600980 Exhaust ClampExhaust Clamp
-
80707600980 Exhaust ClampExhaust Clamp
-
90514054174 Exhaust GasketExhaust Gasket
-
140293830162 Anti-Vibration RubberAnti-Vibration Rubber
-
150207505046 Hex. Flanged Screw M10 X 50, Scotch GripHex. Flanged Screw M10 X 50, Scotch Grip
-
160506150000 Washer 10 mmWasher 10 mm
-
170233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
190503189282 BushingBushing
-
220415107100 SpringSpring
-
350707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
360707600661 Front BracketFront Bracket
-
370210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
460707600872 Oxygen SensorOxygen Sensor
-
470414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
500707601028 Inner Heat DeflectorInner Heat Deflector
-
510707601504 External Heat DeflectorExternal Heat Deflector
-
520207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
530234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
540250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
