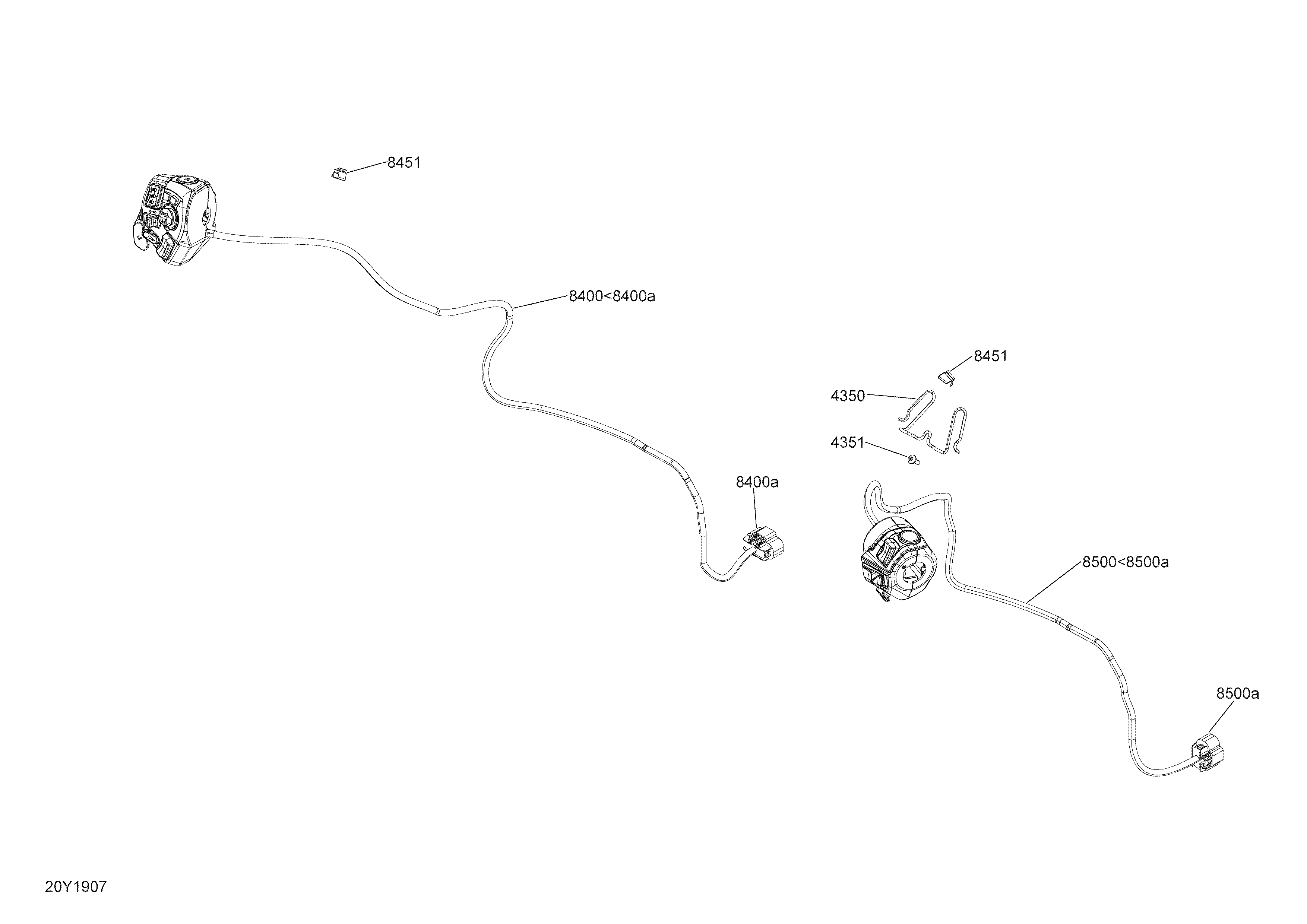

10- Electrical System Handlebar для BRP 003 - RT LTD SE6 - 2019
-
№АртикулНазвание
-
4350710003017 Grommet SpindleGrommet Spindle
-
4351250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
8400<8400a710006574 Switch Housing LH. Includes 8400 TO 8400aSwitch Housing LH. Includes 8400 TO 8400a
-
8400a710001943 HousingHousing
-
8451414227300 ClipClip
-
8500<8500a710004583 Switch Housing RH. Includes 8500 TO 8500aSwitch Housing RH. Includes 8500 TO 8500a
-
8500a710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
8501414227300 ClipClip
