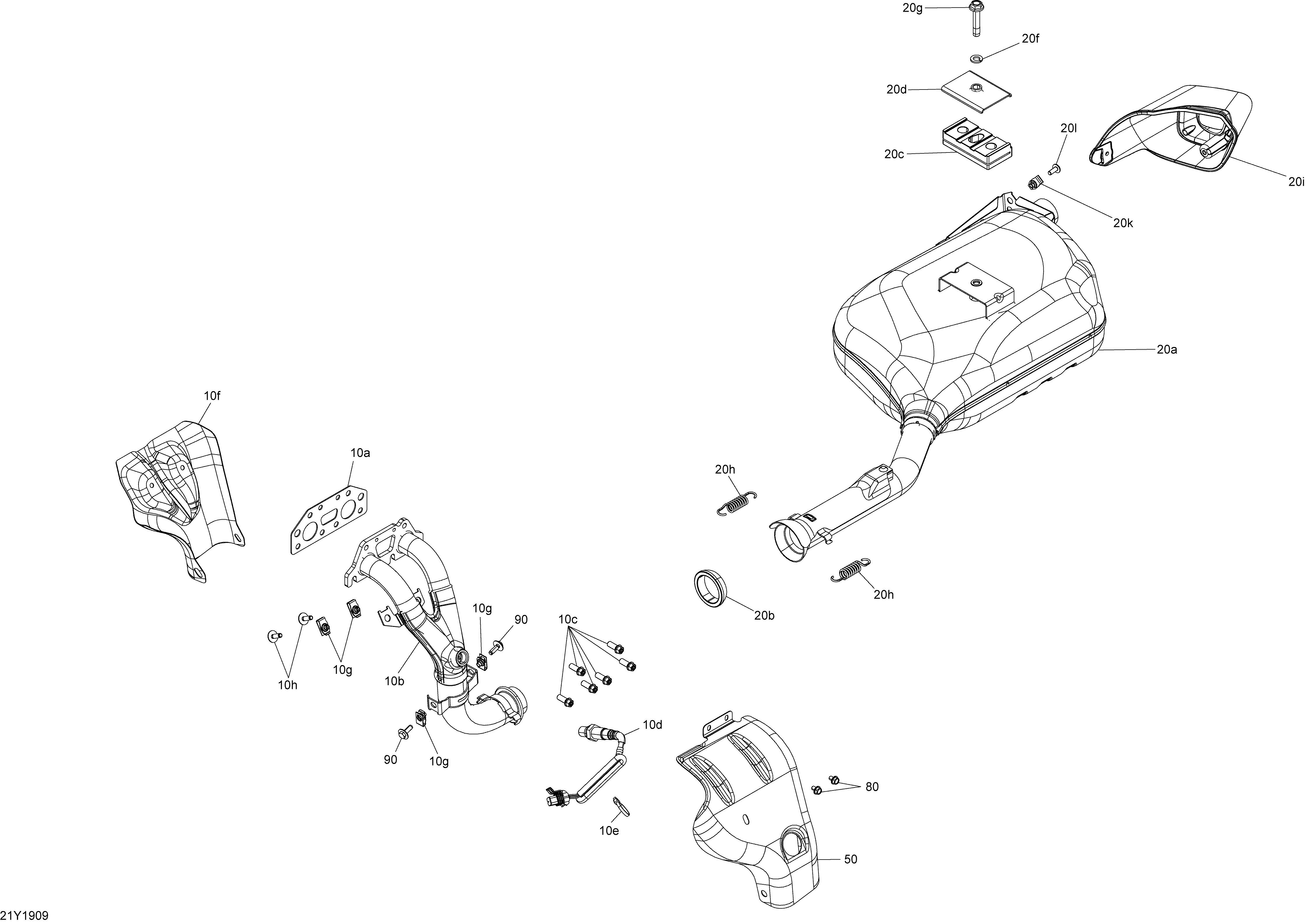

01- Engine - Exhaust - 600 ACE для BRP 001 - RYKER STD 600 ACE - 2019
-
№АртикулНазвание
-
10a707601939 Exhaust Manifold GasketExhaust Manifold Gasket
-
10b707601938 Exhaust ManifoldExhaust Manifold
-
10c250000973 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10d707600872 Oxygen SensorOxygen Sensor
-
10e293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
10f707602311 DeflectorDeflector
-
10g250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
10h250000965 Hex Screw M6 X 20Hex Screw M6 X 20
-
20a707602278 MufflerMuffler
-
20b707601033 Exhaust GasketExhaust Gasket
-
20c707602056 Rubber StopperRubber Stopper
-
20d707602413 Plate FastenerPlate Fastener
-
20f234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
20g250001079 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
20h514055198 SpringSpring
-
20i707602404 Muffler End Piece B-322Muffler End Piece B-322
-
20k250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
20l250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
50707602313 DeflectorDeflector
-
80210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
90250000965 Hex Screw M6 X 20Hex Screw M6 X 20
