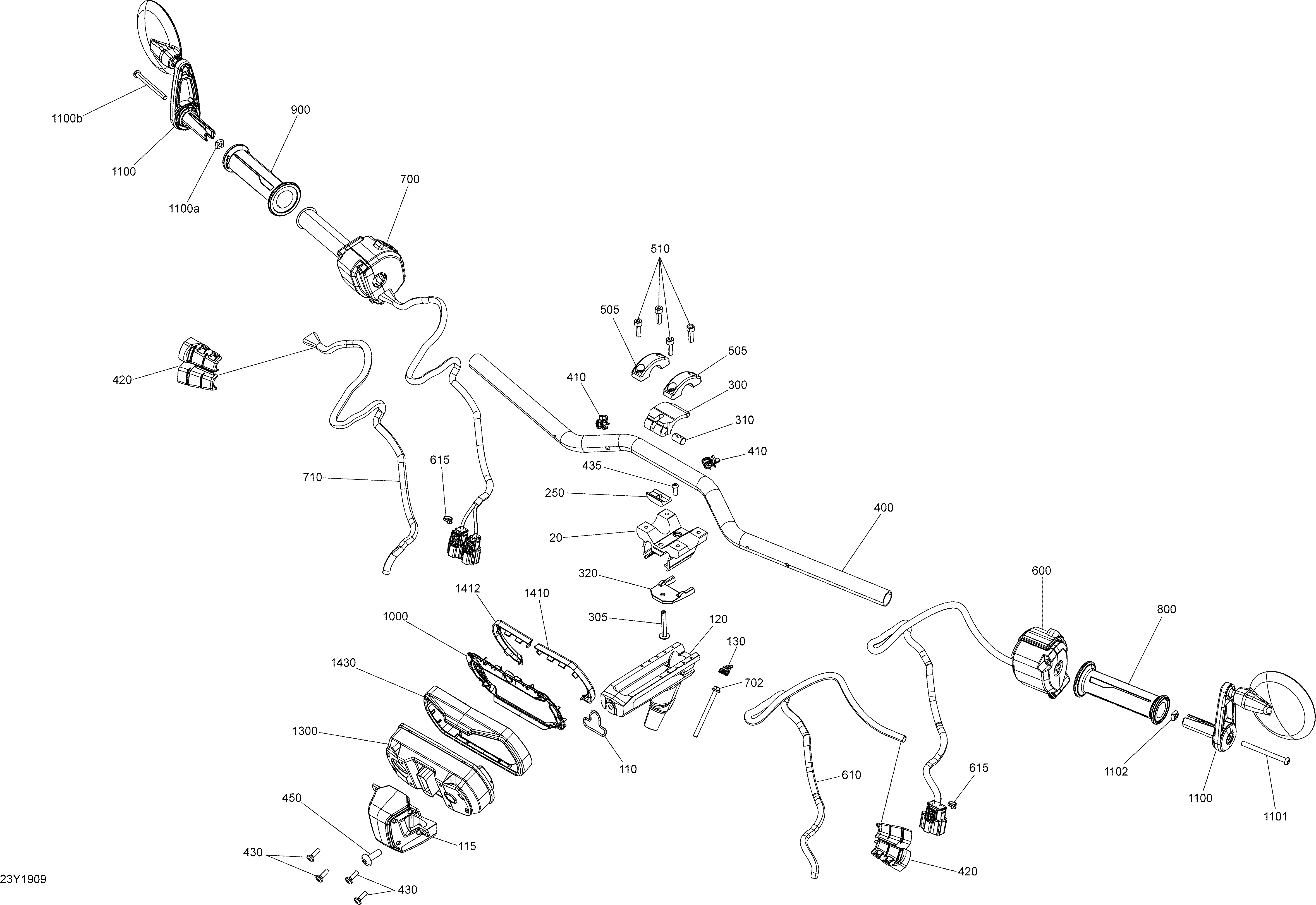

07- Steering - Handlebar / Cluster Support для BRP 001 - RYKER STD 600 ACE - 2019
-
№АртикулНазвание
-
20709402277 Slider, B-160-SBSlider, B-160-SB
-
110709402267 Steel Cable SupportSteel Cable Support
-
115709402243 Cluster Support, B-160-SBCluster Support, B-160-SB
-
120709402259 Stem Painted, B-160Stem Painted, B-160
-
130709402276 CapCap
-
250506153054 Compression BlockCompression Block
-
255709402378 ShimShim
-
300709402279 Release Lever, B-160Release Lever, B-160
-
305709402320 Torx-Truss M/S M6 X 40Torx-Truss M/S M6 X 40
-
310709402272 Clevis PinClevis Pin
-
320709402273 Rocker ArmRocker Arm
-
400709402265 Handle Bar, B-322SGHandle Bar, B-322SG
-
410709402101 Wire GuideWire Guide
-
420709402370 Wire GuideWire Guide
-
430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
435235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
-
450250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
505709402255 Handle Bar Clamp, B-160-SBHandle Bar Clamp, B-160-SB
-
510205562054 Screw-Socket Head M6 X 20 S.GripScrew-Socket Head M6 X 20 S.Grip
-
600710005274 LH Multifunction SwitchLH Multifunction Switch
-
610415130141 SleeveSleeve
-
615293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
620710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
-
700710005275 RH Multifunction Switch & ThrottleRH Multifunction Switch & Throttle
-
702230680054 Hex. Flanged Screw M8 X 100Hex. Flanged Screw M8 X 100
-
710415130141 SleeveSleeve
-
800709401984 LH Handle GripLH Handle Grip
-
900709401985 RH Handle GripRH Handle Grip
-
1000709402093 Cluster CapCluster Cap
-
1100<1100b705011225 Mirror Assy, B-160. Includes 1100 TO 1100bMirror Assy, B-160. Includes 1100 TO 1100b
-
1100a232862412 Square Nut M6Square Nut M6
-
1100b250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1101250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1102232862412 Square Nut M6Square Nut M6
-
1300710005165 Multifunction GaugeMultifunction Gauge
-
1410709402210 Deep Black, LH Trim for Cluster CapDeep Black, LH Trim for Cluster Cap
-
1412709402211 Deep Black, RH Trim for Cluster CapDeep Black, RH Trim for Cluster Cap
-
1430709402092 Cluster Cap RearCluster Cap Rear
