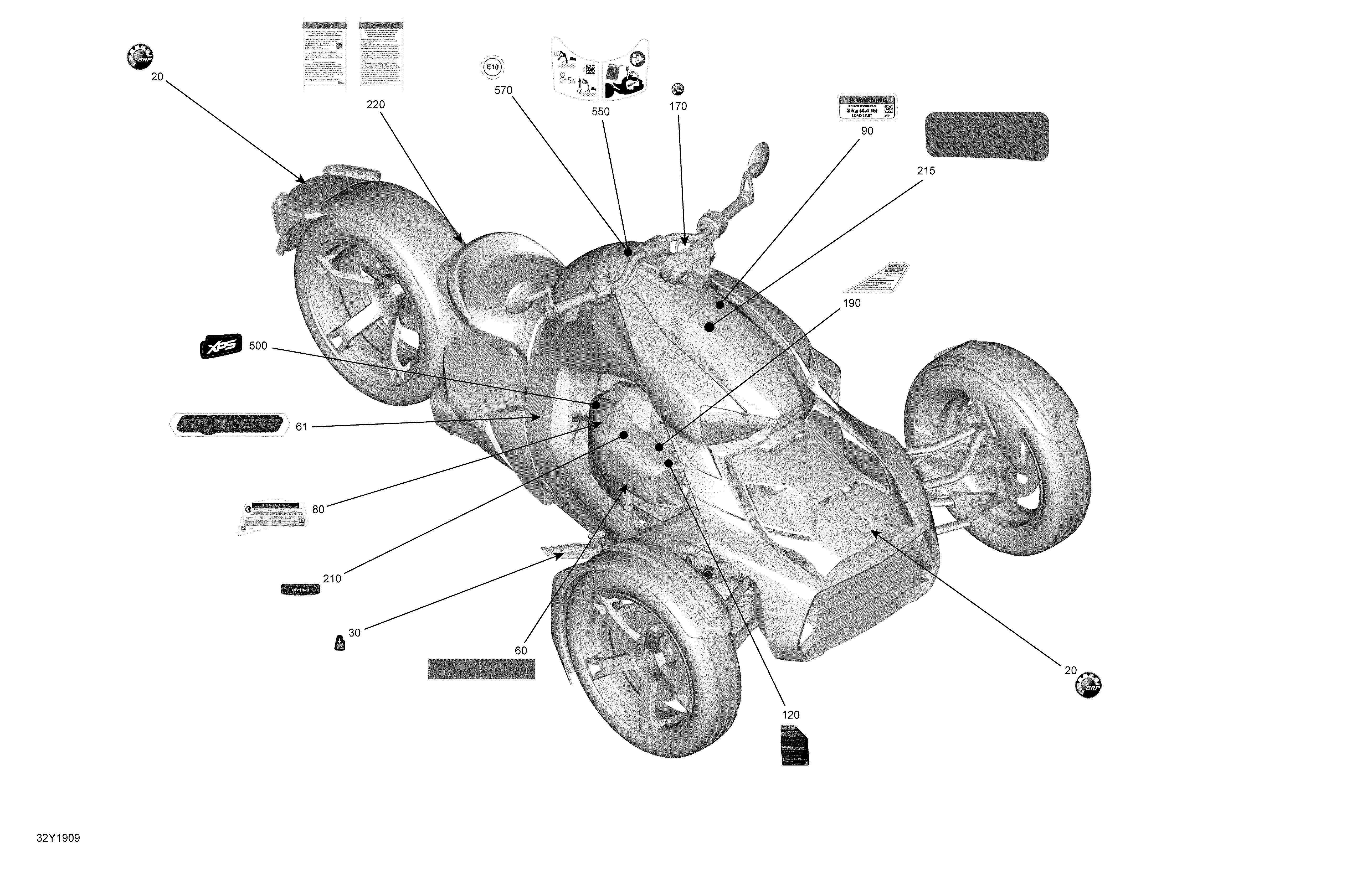

09- Decals для BRP 001 - RYKER STD 600 ACE - 2019
-
№АртикулНазвание
-
20516008738 Logo 48mm ''BRP''Logo 48mm ''BRP''
-
30704907708 Pictogram Footrest DecalPictogram Footrest Decal
-
40704908058 Hood Instruction DecalHood Instruction Decal
-
60704907568 Decal CAN-AM, B-259 Steel GreyDecal CAN-AM, B-259 Steel Grey
-
61704907570 Decal Lateral, RYKER Grey-Red-BlackDecal Lateral, RYKER Grey-Red-Black
-
80704907064 Decal Tire and Loading. Package STDDecal Tire and Loading. Package STD
-
90704907057 Decal, MAX Load 2KG (4.4lbs)Decal, MAX Load 2KG (4.4lbs)
-
120704907062 Warning DecalWarning Decal
-
170704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
190704907060 Caution Oil DecalCaution Oil Decal
-
210704907061 Decal Safety CardDecal Safety Card
-
215704907572 Decal, Identification 900. 900 ACE Engine. There is none for the 600 ACE EngineDecal, Identification 900. 900 ACE Engine. There is none for the 600 ACE Engine
-
220704907629 Warning Label, ENGWarning Label, ENG
-
500704907059 Decal XPS, B-160 Deep BlackDecal XPS, B-160 Deep Black
-
550704907425 Fuelling DecalFuelling Decal
-
570704907278 Decal Ethanol Percantage ''E10''. InternationalDecal Ethanol Percantage ''E10''. International
