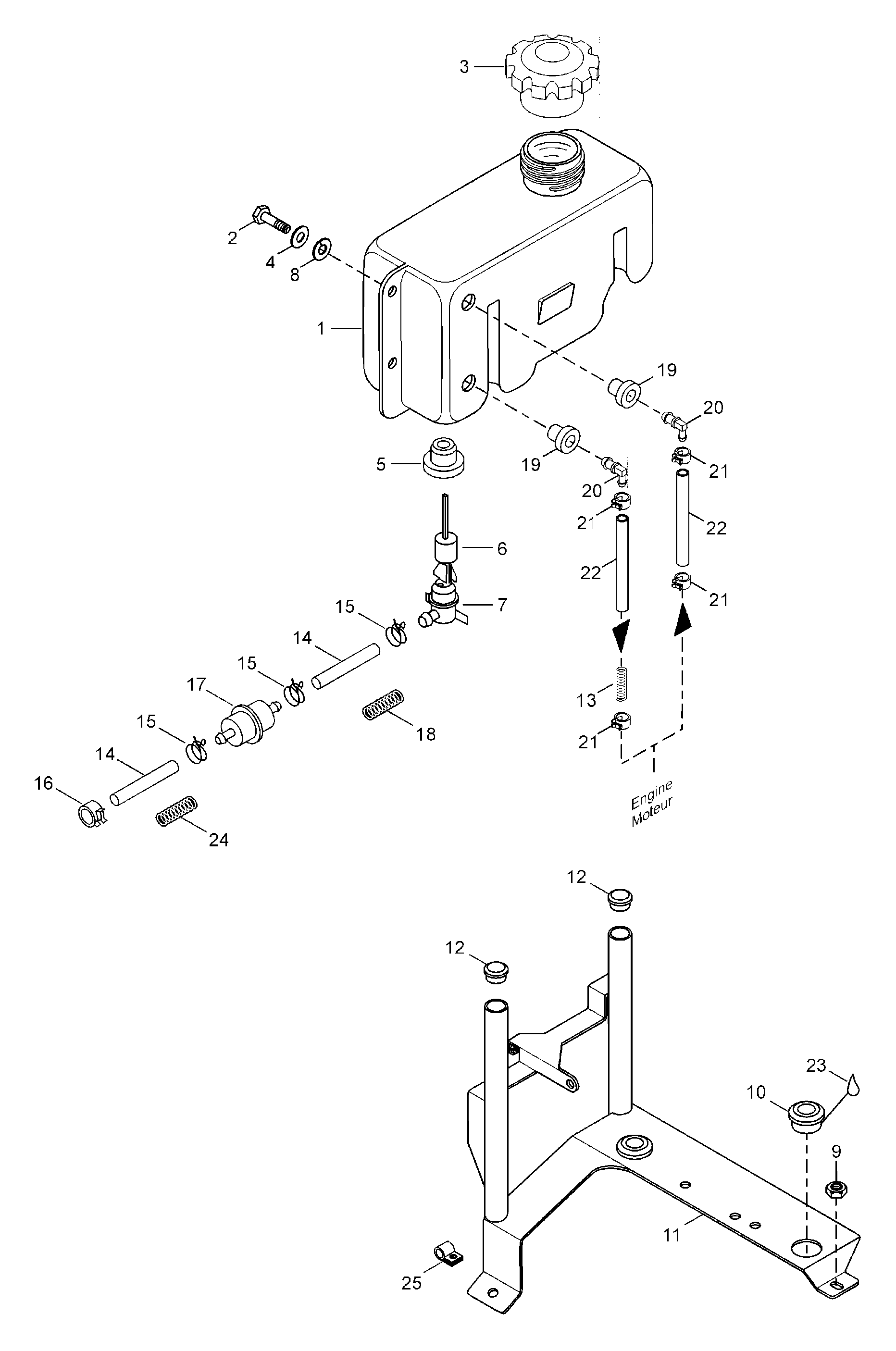

01- Oil Tank для BRP Lynx GLX 5900 LCE - 1999
-
№АртикулНазвание
-
15143073 Oil tankOil tank
-
240030 Screw M6x20Screw M6x20
-
3572071000 Oil tank capOil tank cap
-
420052 Lock washerLock washer
-
5570023000 GrommetGrommet
-
6414681900 FloatFloat
-
7414681800 Oil lever sensorOil lever sensor
-
820009 WasherWasher
-
933200 Nut M6Nut M6
-
1028022 GrommetGrommet
-
115243611 SupportSupport
-
1228136 PlugPlug
-
1325003 SpringSpring
-
1439046 Oil lineOil line
-
1527119F Universal spring claUniversal spring cla
-
16414420700 Universal spring claUniversal spring cla
-
17414536500 Oil filterOil filter
-
1828015 TubeTube
-
19570273900 GrommetGrommet
-
20414523600 Elbow fitting 90 degr.Elbow fitting 90 degr.
-
21414655700 Spring slipSpring slip
-
22414644800 Oil lineOil line
-
2527092 ClampClamp
