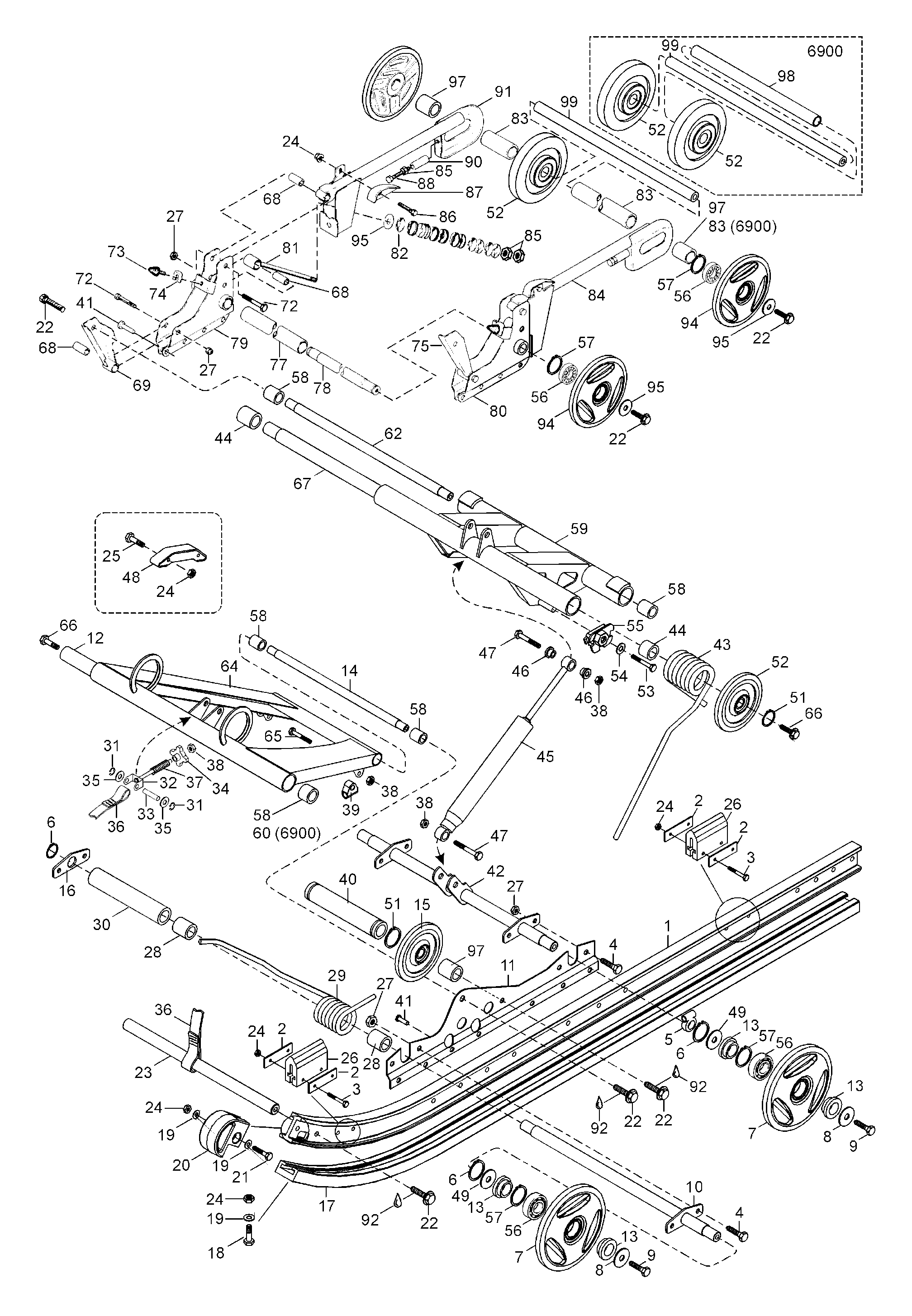

08- Rear Suspension для BRP Lynx GLX 5900 LCE - 1999
-
№АртикулНазвание
-
5142866 Slide frame assy R.H (Ref. 1, 11, 41, 79)Slide frame assy R.H (Ref. 1, 11, 41, 79)
-
5142865 Slide frame assy L.H (Ref. 1, 11, 41, 80)Slide frame assy L.H (Ref. 1, 11, 41, 80)
-
15142864 Slide railSlide rail
-
2548387 PlatePlate
-
340002 Screw M6x40Screw M6x40
-
440035 Screw M8x16Screw M8x16
-
5548804 Spring supportSpring support
-
631007 CirclipCirclip
-
7570066602 Support wheel Al 135Support wheel Al 135
-
820010 WasherWasher
-
940336 Screw M8x20Screw M8x20
-
10539653 Shaft weldedShaft welded
-
11538794 Support R.H.Support R.H.
-
11538793 Support L.H.Support L.H.
-
12542793 Upper axleUpper axle
-
13415112700 InsertInsert
-
14549695 Lower axleLower axle
-
15503188997 Bond wheel 135Bond wheel 135
-
16548469 Support plateSupport plate
-
17549582 Ski-linerSki-liner
-
1840030 Screw M6x20Screw M6x20
-
1920003 WasherWasher
-
20534578 Slide pieceSlide piece
-
2140031 Screw M6x25Screw M6x25
-
2240335 Screw M10x30Screw M10x30
-
23549718 Belt axleBelt axle
-
2433200 Nut M6Nut M6
-
26570023100 Rubber damperRubber damper
-
2733011 Nut elastic M8Nut elastic M8
-
28548841 Support sleeveSupport sleeve
-
295241177 Spring, L.H.Spring, L.H.
-
295241178 Spring, R.H.Spring, R.H.
-
305440313 SleeveSleeve
-
3141035 CirclipCirclip
-
325441643 Stop belt adjusterStop belt adjuster
-
335441645 SleeveSleeve
-
34572034000 ScrewScrew
-
3520005 WasherWasher
-
365442604 Stopper strapStopper strap
-
37414460600 SpringSpring
-
3833012 Nut elastic M10Nut elastic M10
-
39548799 Spring supportSpring support
-
40549680 Axle l=317Axle l=317
-
41544212 RivetRivet
-
42539655 AxleAxle
-
43538806 Spring R.H.Spring R.H.
-
43538805 Spring L.H.Spring L.H.
-
4431046 Slide bearingSlide bearing
-
4523016 ShockShock
-
46544417 SleeveSleeve
-
4740017 Screw M10x50Screw M10x50
-
4931089 ShimShim
-
5131001 CirclipCirclip
-
5340114 Screw M6x10Screw M6x10
-
5420003 WasherWasher
-
55572030900 Adjustment Cam, R.Adjustment Cam, R.
-
55572030800 Adjustment Cam, L.Adjustment Cam, L.
-
56405404500 BearingBearing
-
5731002 CirclipCirclip
-
58542770 SleeveSleeve
-
595343493 Rocking frame, rearRocking frame, rear
-
62549656 Lower axleLower axle
-
645242657 Rocker arm, frontRocker arm, front
-
6540014 Screw M10x40Screw M10x40
-
6640314 Screw M10x30Screw M10x30
-
675343492 Upper axle l=520Upper axle l=520
-
68545758 SleeveSleeve
-
695440350 Lever, R.H.Lever, R.H.
-
7240008 Screw M8x45Screw M8x45
-
73535455 Rubber damperRubber damper
-
745440645 ShimplateShimplate
-
755440349 Lever, L.H.Lever, L.H.
-
77541815 SleeveSleeve
-
78541816 Axle l=463Axle l=463
-
79539672 Support for axle L.H.Support for axle L.H.
-
80539673 Support for axle R.H.Support for axle R.H.
-
815440377 Extension screwExtension screw
-
8225004 Spring plateSpring plate
-
835443285 SleeveSleeve
-
845243098 Extension pipe L.H.Extension pipe L.H.
-
8533004 Nut M10Nut M10
-
8640030 Screw M6x20Screw M6x20
-
87548262 Crank blockCrank block
-
8840239 Screw M10x100Screw M10x100
-
90546668 SleeveSleeve
-
915243099 Extension pipe R.H.Extension pipe R.H.
-
94570066702 Support wheel Al 165Support wheel Al 165
-
9520011 WasherWasher
-
97546577 SleeveSleeve
-
995343284 Rear axle l=465Rear axle l=465
