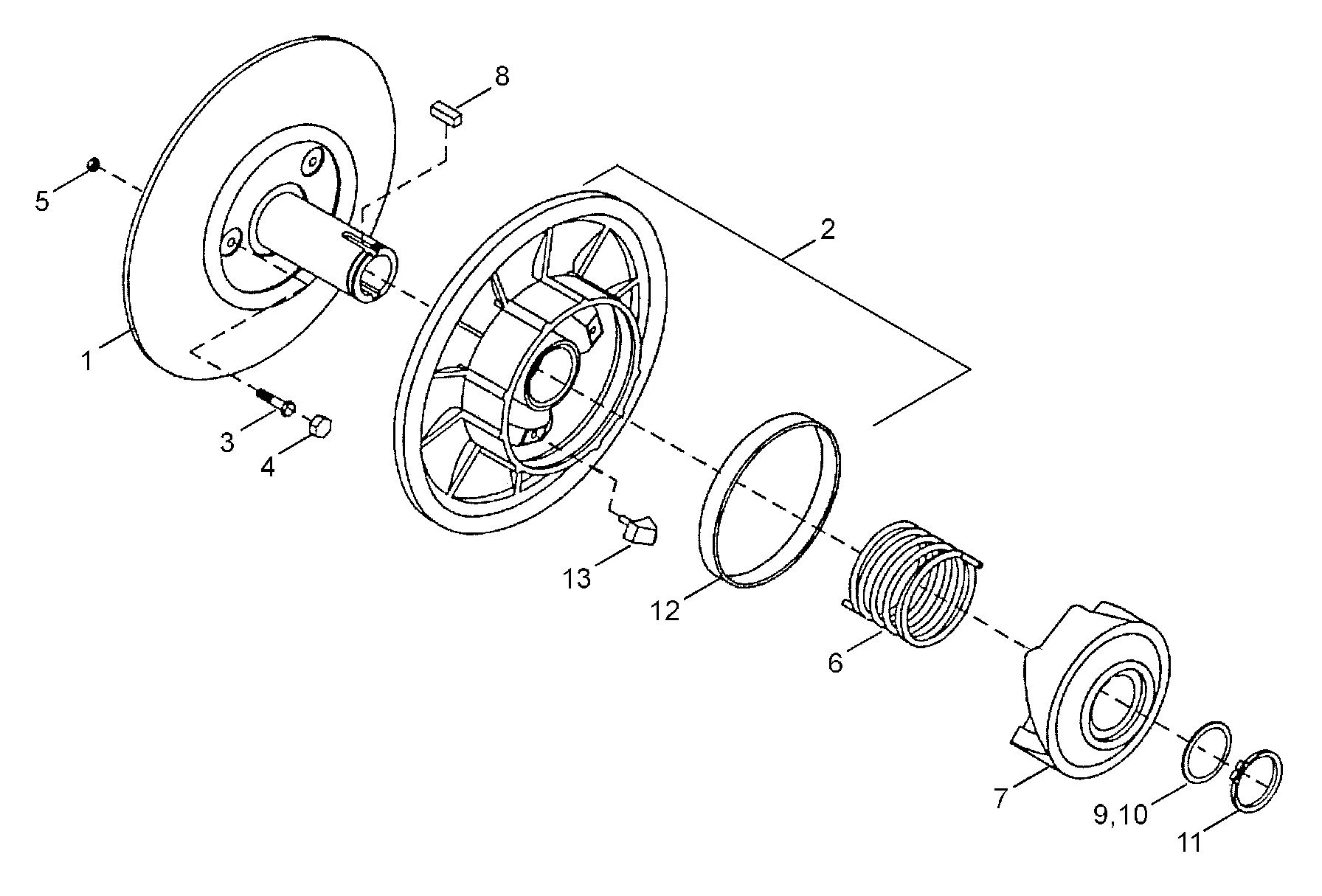

05- Driven Pulley для BRP Lynx GLX 5900 LCE - 1999
-
№АртикулНазвание
-
114124 Driven pulley assy. Includes items 1 thru 13Driven pulley assy. Includes items 1 thru 13
-
1417126310 Fixed half pulleyFixed half pulley
-
2140010 Sliding half pulleySliding half pulley
-
3417118900 Hexagonal head scrHexagonal head scr
-
4417119600 Plastic capPlastic cap
-
51471417 Nut M6Nut M6
-
6417119100 Spring blueSpring blue
-
7417123700 Fix cam 40Fix cam 40
-
8417119400 Sguare keySguare key
-
9417114900 Shim 0.05'’Shim 0.05'’
-
10417117000 Shim 0.025'’Shim 0.025'’
-
11140004 Snap ringSnap ring
-
12140005 Cam bushingCam bushing
-
13417212500 Cam shoeCam shoe
