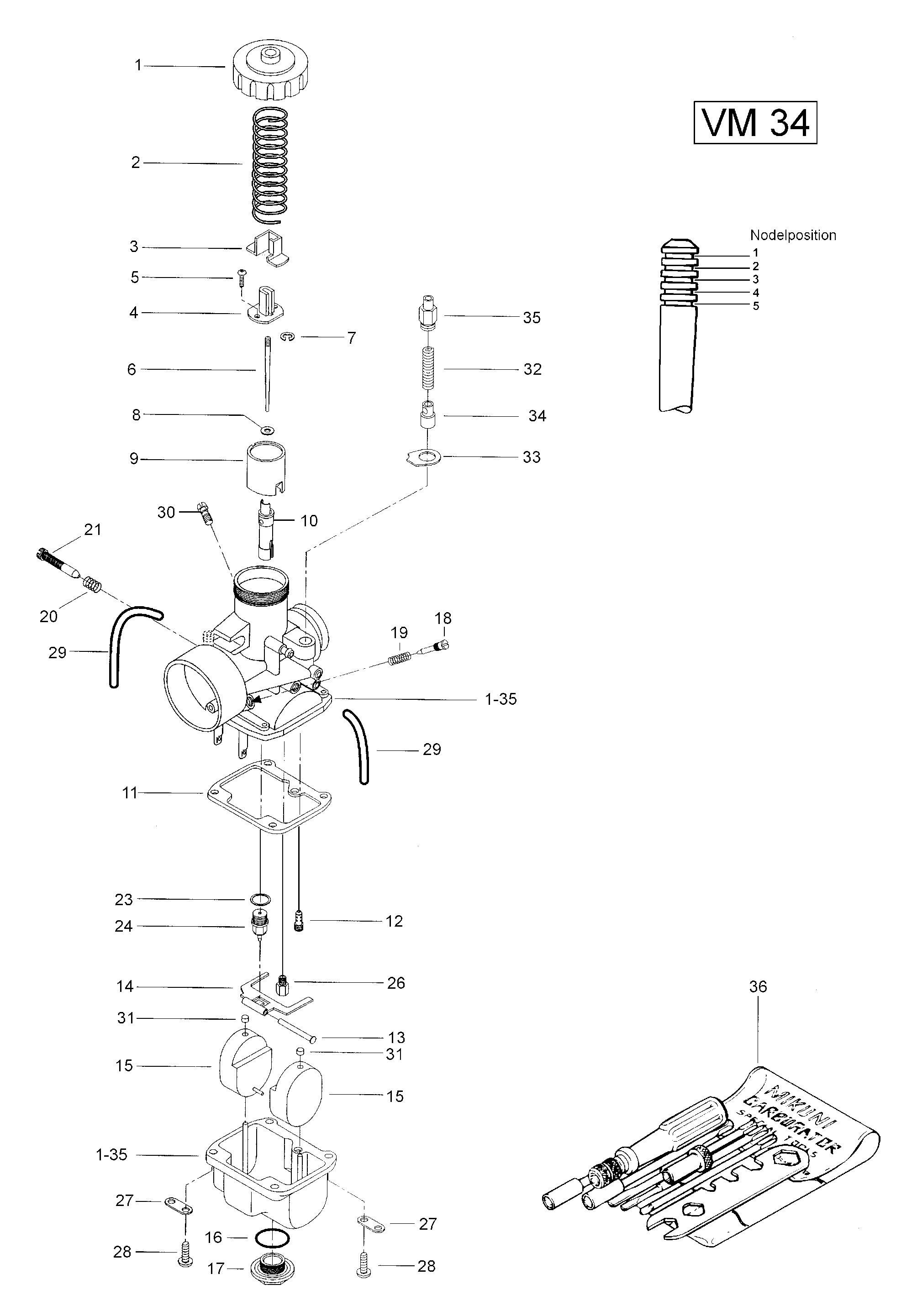

02- Carburetor для BRP Lynx GLX 5900 LCE - 1999
-
№АртикулНазвание
-
119062 Carburetor 34 MAG. Includes items 1 thru 35Carburetor 34 MAG. Includes items 1 thru 35
-
119063 Carburetor 34 P.T.O.. Includes items 1 thru 35Carburetor 34 P.T.O.. Includes items 1 thru 35
-
1404103700 CoverCover
-
2404154800 Throttle valve springThrottle valve spring
-
3404103000 PlatePlate
-
4404160800 ConnectorConnector
-
5404121300 Screw with washerScrew with washer
-
6404101900 Jet needle 6DH4-2Jet needle 6DH4-2
-
7404152400 E-ringE-ring
-
8404117000 O-ringO-ring
-
9404128400 Slide 2.5Slide 2.5
-
10404100700 Needle jet 159 P-2Needle jet 159 P-2
-
12404109100 Pilot jet PJ 40Pilot jet PJ 40
-
13404103300 Float arm pinFloat arm pin
-
14404107600 Float armFloat arm
-
15404107100 FloatFloat
-
16404107300 O-ringO-ring
-
17404107400 Plug screwPlug screw
-
18404149000 Idle adjusting screwIdle adjusting screw
-
19404101800 SpringSpring
-
20404101700 SpringSpring
-
21404102800 Throttle stop screwThrottle stop screw
-
23404101600 Gasket ringGasket ring
-
24404147400 Needle valve 1.5Needle valve 1.5
-
26404100200 Main jet 240 MAGMain jet 240 MAG
-
26404100300 Main jet 250 P.T.O.Main jet 250 P.T.O.
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + lock washerScrew + lock washer
-
29404161802 Vent tubeVent tube
-
29404109800 Vent tube MAGVent tube MAG
-
30404159100 NippleNipple
-
31404105800 CapCap
-
32404127400 SpringSpring
-
33404160400 PlatePlate
-
34404161000 Plunger assyPlunger assy
-
35404161100 Holder guideHolder guide
-
36404112000 Tool kitTool kit
