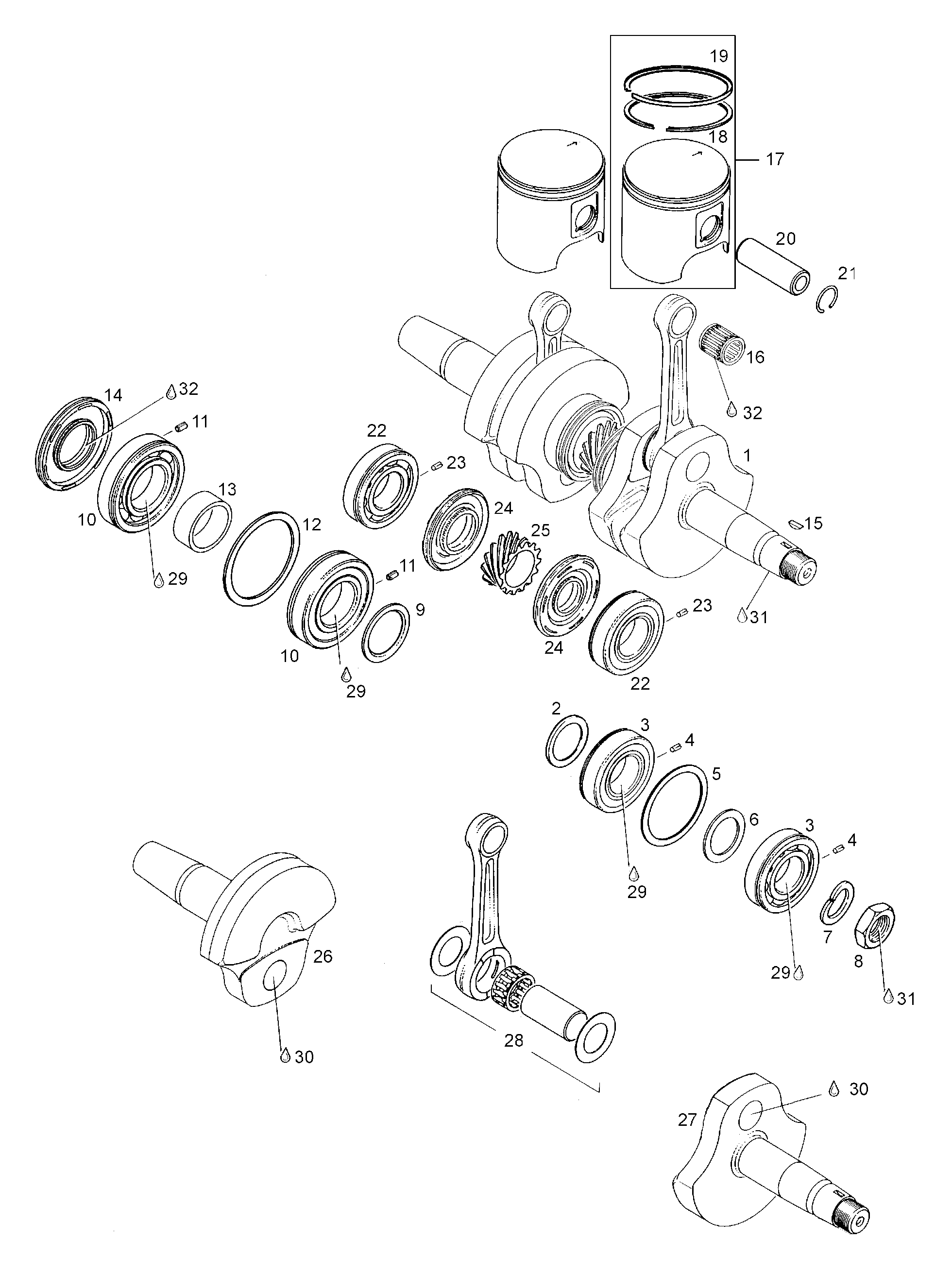

01- Crankshaft Assy для BRP Lynx G-Touring 500 - 1999
-
№АртикулНазвание
-
1420886932 Crankshaft assy. Includes items 1 thru 15 Notice ref. numbers 7 and 8 not included ref. number 1-15 crankshaft assy.Crankshaft assy. Includes items 1 thru 15 Notice ref. numbers 7 and 8 not included ref. number 1-15 crankshaft assy.
-
2420827445 SpacerSpacer
-
3420932589 Ball bearing 6206 assy. Includes items 3 thru 4Ball bearing 6206 assy. Includes items 3 thru 4
-
4420929972 Drive pinDrive pin
-
5420827050 Retainer diskRetainer disk
-
6420427684 Adjuster washerAdjuster washer
-
7420945759 Lock washerLock washer
-
8420842230 Nut M22Nut M22
-
9420827760 Shim, 2 mmShim, 2 mm
-
10420832574 Bearing 6207 assy. Includes items 10 thru 11Bearing 6207 assy. Includes items 10 thru 11
-
11420929972 PinPin
-
12420927710 Retaining diskRetaining disk
-
13420847684 Distance sleeveDistance sleeve
-
14420831950 Oil sealOil seal
-
15420246015 Woodruff-keyWoodruff-key
-
16420832438 Needle cageNeedle cage
-
17420887553 Piston 69.39 mm. Includes items 17 thru 19Piston 69.39 mm. Includes items 17 thru 19
-
17420887554 Piston 69.64 mm. Includes items 17 thru 19Piston 69.64 mm. Includes items 17 thru 19
-
18420915985 Retangular ring 69.50 mmRetangular ring 69.50 mm
-
18420915986 Retangular ring 69.75mmRetangular ring 69.75mm
-
19420815045 Semi-trap. ring 69.50mmSemi-trap. ring 69.50mm
-
19420815046 Semi-trap. ring 69.75mmSemi-trap. ring 69.75mm
-
20420916186 Piston pinPiston pin
-
21420945735 CirclipCirclip
-
22420832538 Bearing 6206 assy. Includes items 22 thru 23Bearing 6206 assy. Includes items 22 thru 23
-
23420929972 Drive pinDrive pin
-
24420831990 Oil sealOil seal
-
25420935748 Central gear 14TCentral gear 14T
-
26420818660 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
27420818690 Crankshaft MAG.-sideCrankshaft MAG.-side
-
28420886955 Rod repair kit MAG. sideRod repair kit MAG. side
-
28420886956 Rod repair kit PTO. sideRod repair kit PTO. side
-
29420297434 Loctite anti-seizeLoctite anti-seize
-
30420897340 Loctite 14486Loctite 14486
-
31420899785 Loct.221/viol.Loct.221/viol.
