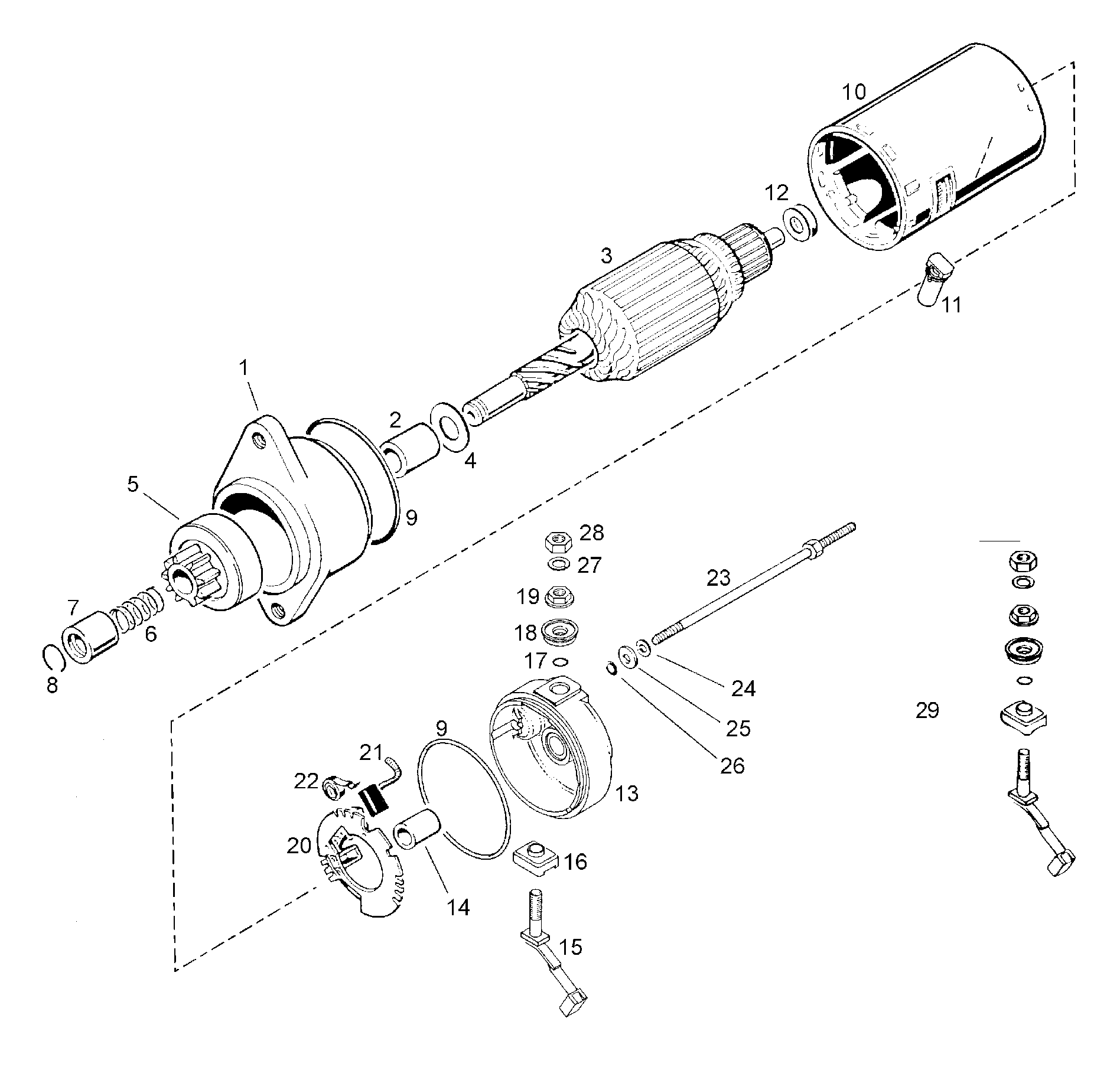

10- Electric Starter для BRP Lynx G-Touring 500 - 1999
-
№АртикулНазвание
-
15343740 Electric starter assy. Includes items 1 thru 28Electric starter assy. Includes items 1 thru 28
-
1420866880 Bearinghousing + bushing. Includes items 1 thru 2Bearinghousing + bushing. Includes items 1 thru 2
-
3420866870 Rotor assyRotor assy
-
5420866850 Bendix wheelBendix wheel
-
6420939030 SpringSpring
-
7420927040 StopStop
-
8420845360 Lock ringLock ring
-
9420850500 O-ringO-ring
-
10420866860 Stator assyStator assy
-
11420860600 RubberRubber
-
12420827600 ShimShim
-
13420866900 End plate + bushing. Includes items 13 thru 19End plate + bushing. Includes items 13 thru 19
-
15420866892 BrushBrush
-
16420260820 Isolating bushingIsolating bushing
-
17420230530 O-ringO-ring
-
18420260800 Connector seathConnector seath
-
19420242780 Nut M6Nut M6
-
20420866890 Brush holder assy . Includes items 20 thru 22Brush holder assy . Includes items 20 thru 22
-
20410208600 Brush holderBrush holder
-
21420866185 BrushBrush
-
23420841860 ScrewScrew
-
2420013 Spring washerSpring washer
-
2520002 Washer A5,5Washer A5,5
-
26420850510 O-ringO-ring
-
2720052 Lock washer A6Lock washer A6
-
28420242211 Nut M6Nut M6
-
29410212100 Brush kitBrush kit
