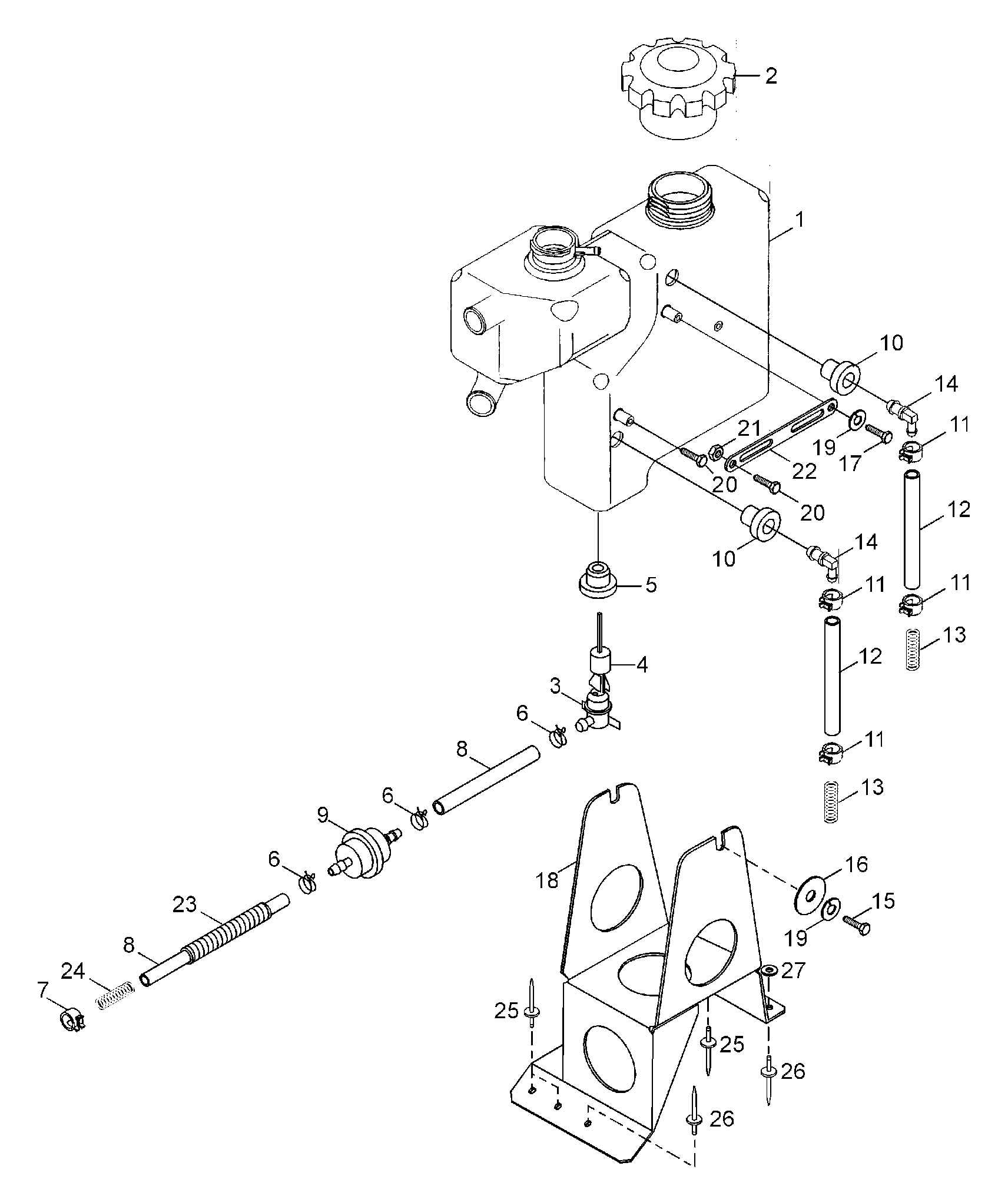

01- Oil Tank для BRP Lynx G-Touring 500 - 1999
-
№АртикулНазвание
-
1519000014 Oil/cooling liquid tankOil/cooling liquid tank
-
2572071000 Oil tank capOil tank cap
-
3414681800 Switch-levelSwitch-level
-
4414681900 FloatFloat
-
5570023000 Seal for sensorSeal for sensor
-
627119F ClampClamp
-
7414420700 ClampClamp
-
839046 Hose 11/8Hose 11/8
-
9414536500 Oil filterOil filter
-
10570273900 GrommetGrommet
-
11414655700 ClampClamp
-
1239052 Hose 13.5/10.5Hose 13.5/10.5
-
1325003 SpringSpring
-
14414523600 Fitt ing-elbowFitt ing-elbow
-
1540114 Screw M6x10Screw M6x10
-
1620009 WasherWasher
-
1740211 Screw M6x35Screw M6x35
-
185243061 Support weld.Support weld.
-
1920052 Spring washerSpring washer
-
2040030 Screw M6x20Screw M6x20
-
2133010 Nut elastic M6Nut elastic M6
-
225443932 Support plateSupport plate
-
2328015 TubingTubing
-
245444054 Spring l=60mmSpring l=60mm
-
245444055 Spring l=190mmSpring l=190mm
-
2536070 RivetRivet
-
2636087 RivetRivet
-
2720002 WasherWasher
