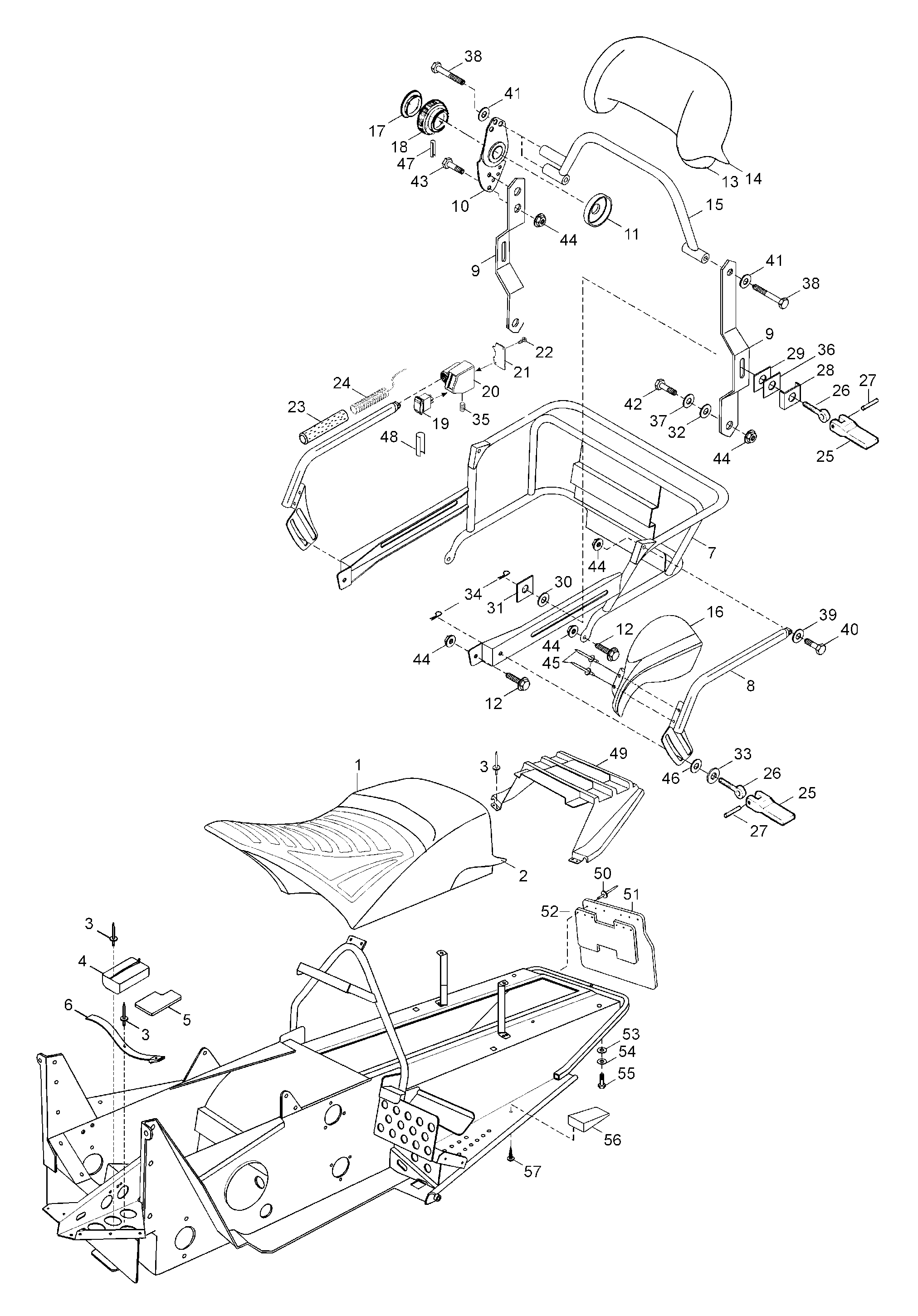

09- Body для BRP Lynx G-Touring 500 - 1999
-
№АртикулНазвание
-
15244747 Seat assySeat assy
-
25342823 Seat coverSeat cover
-
336036 RivetRivet
-
45342513 Tool boxTool box
-
55342514 FoamFoam
-
6548455 Tool bag beltTool bag belt
-
75142969 Rack assyRack assy
-
85342839 L.H. ArmL.H. Arm
-
85342838 R.H. ArmR.H. Arm
-
95342974 R.H. ArmR.H. Arm
-
95342975 L.H. ArmL.H. Arm
-
10414813300 ReclinerRecliner
-
115342954 SleeveSleeve
-
1240316 Screw M8x20Screw M8x20
-
135343163 Backrest foamBackrest foam
-
145343164 Backrest coverBackrest cover
-
155342906 BackrestBackrest
-
16572089400 R.H. ProtectorR.H. Protector
-
16572089500 L.H. ProtectorL.H. Protector
-
17414821000 CapCap
-
18414820900 StripStrip
-
19410108500 SwitchSwitch
-
20572089200 Heater switch housingHeater switch housing
-
21572089300 PlatePlate
-
22414473200 ScrewScrew
-
23415050300 GripGrip
-
245344091 Heater+tab+housingHeater+tab+housing
-
24410110000 Heater elementHeater element
-
255243419 Lock leverLock lever
-
26517257600 Eye boltEye bolt
-
27414821400 PinPin
-
28517257300 GuideGuide
-
29517251300 ShimplateShimplate
-
30414819500 Sleeve bearingSleeve bearing
-
315443899 Thread PlateThread Plate
-
3220083 WasherWasher
-
3320084 WasherWasher
-
3441048 Hair pinHair pin
-
35414440800 Screw M8x10Screw M8x10
-
36570027400 Rubber plateRubber plate
-
3720011 WasherWasher
-
3840036 Screw M8x20Screw M8x20
-
3920004 WasherWasher
-
4040006 Screw M8x35Screw M8x35
-
4120072 Lock washerLock washer
-
4240855 Screw M8x25Screw M8x25
-
4340037 Screw M8x25Screw M8x25
-
4433201 Nut elastic M8Nut elastic M8
-
4536037 RivetRivet
-
4620085 Washer, nylonWasher, nylon
-
4741007 PinPin
-
48418001800 DecalDecal
-
495243127 Rear bumber guardRear bumber guard
-
5036072 RivetRivet
-
51534727 Snow guardSnow guard
-
525340584 SupportSupport
-
5320010 WasherWasher
-
5420014 Lock washerLock washer
-
5540047 Screw M8x30Screw M8x30
-
56572088800 Foot rest L.H.Foot rest L.H.
-
56572088700 Foot rest R.H.Foot rest R.H.
-
5740177 ScrewScrew
