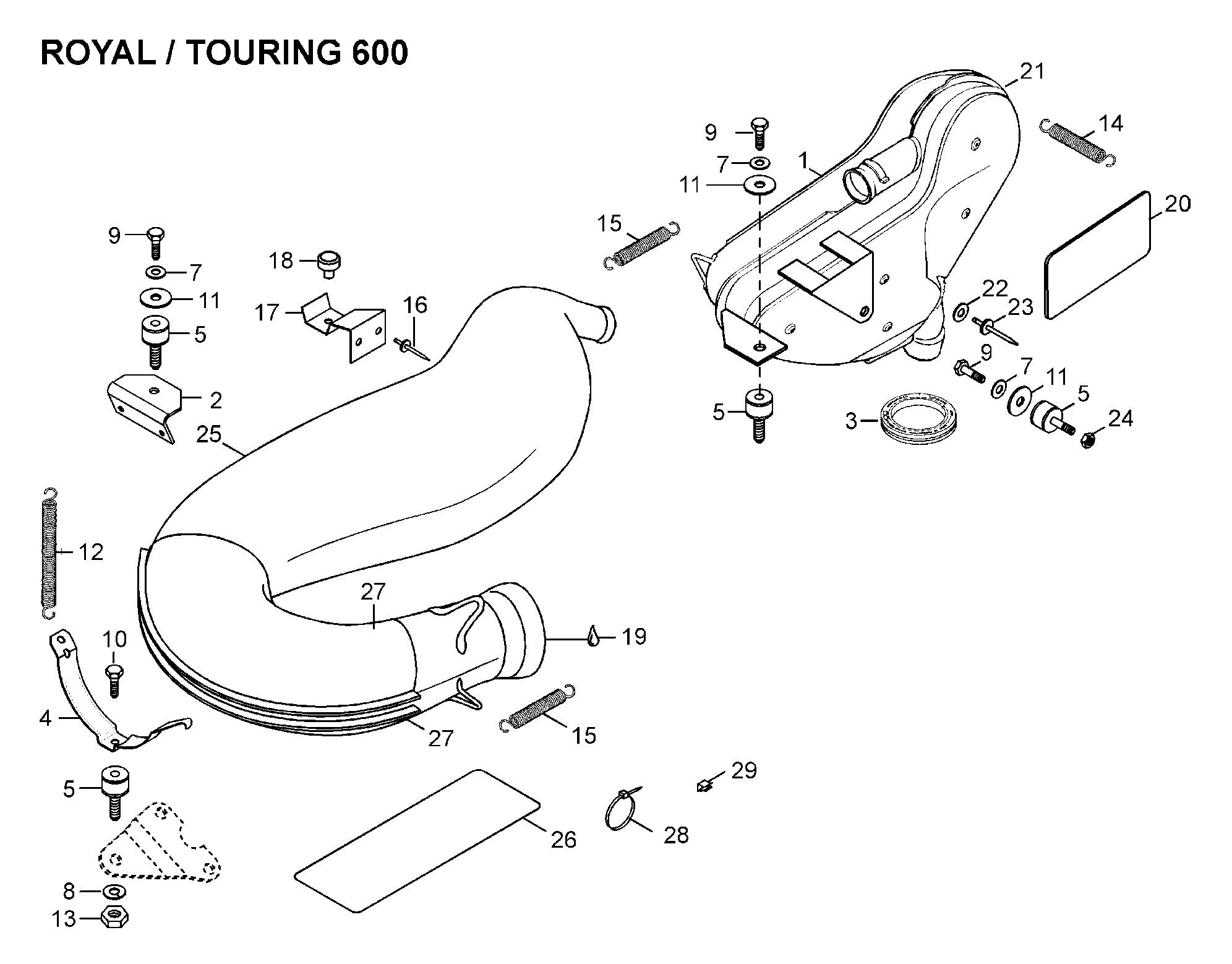

01- Muffler для BRP Lynx G-Touring 600 - 1999
-
№АртикулНазвание
-
25443959 Tunepipe support, rearTunepipe support, rear
-
3570027300 Rubber for grommetRubber for grommet
-
4535108 SupportSupport
-
528245 Rubber mountRubber mount
-
720072 Lock washerLock washer
-
820014 Spring washerSpring washer
-
940035 Screw M8x16Screw M8x16
-
1040116 Screw M8x12Screw M8x12
-
1120010 WasherWasher
-
12542497 SpringSpring
-
1333011 Nut elastic M8Nut elastic M8
-
14414851900 SpringSpring
-
15414893700 SpringSpring
-
1636489 RivetRivet
-
175343750 Lug Weld.Lug Weld.
-
18570048700 Rubber bumberRubber bumber
-
19413710300 Loctite 17914Loctite 17914
-
20514030400 Insulator L.H.Insulator L.H.
-
20514033900 Insulator R.H.Insulator R.H.
-
21514030300 Deflector L.H.Deflector L.H.
-
21514033800 Deflector R.H.Deflector R.H.
-
2220008 WasherWasher
-
2336083 RivetRivet
-
2433201 Nut elastic M8Nut elastic M8
-
255141540 Tune pipeTune pipe
