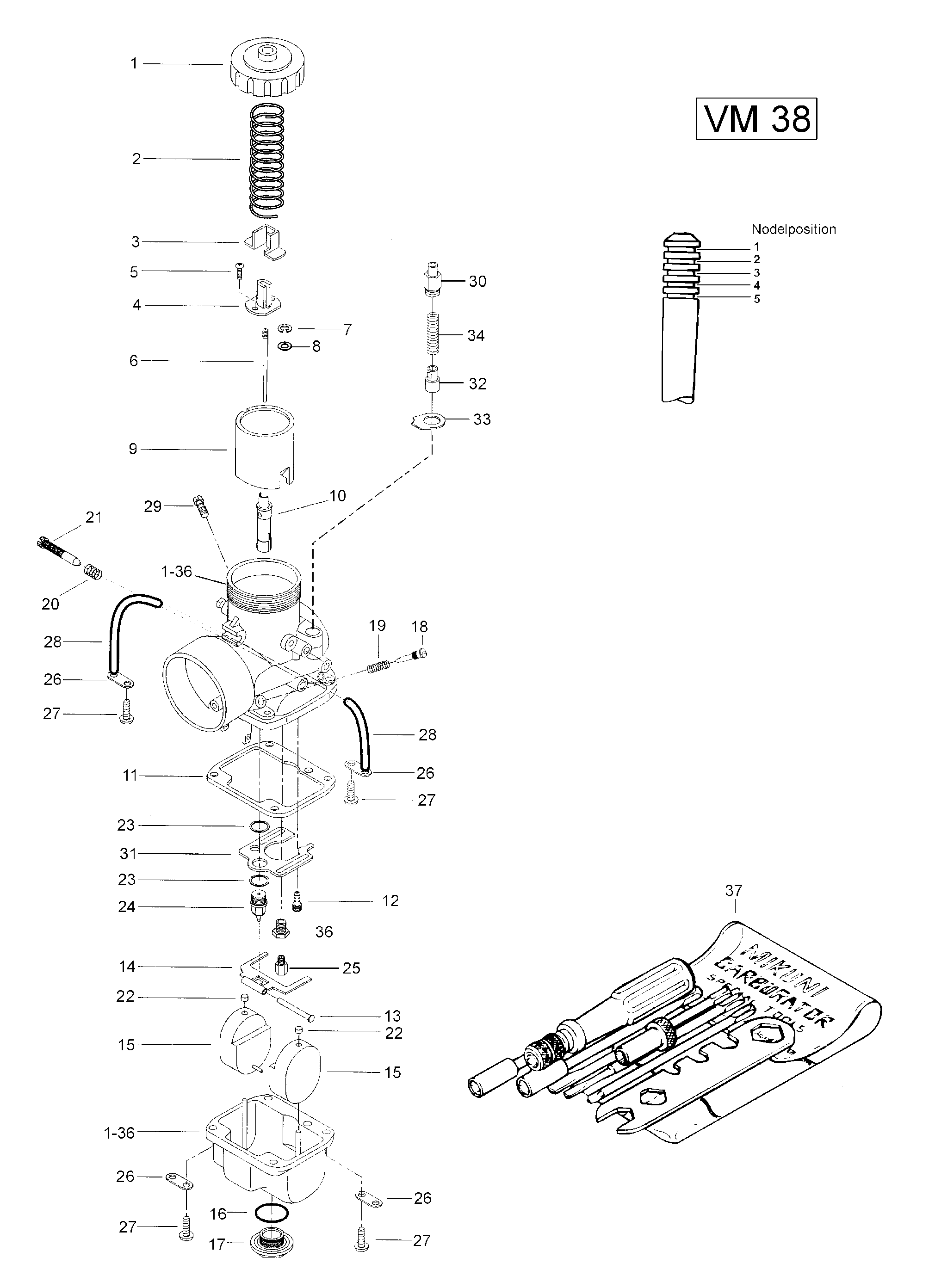

02- Carburetor для BRP Lynx G-Touring 600 - 1999
-
№АртикулНазвание
-
119067 Carburetor VM38 MAG. Includes items 1 thru 36Carburetor VM38 MAG. Includes items 1 thru 36
-
119068 Carburetor VM38 PTO. Includes items 1 thru 36Carburetor VM38 PTO. Includes items 1 thru 36
-
1404105100 CoverCover
-
2404154800 Throttle valve springThrottle valve spring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw with washerScrew with washer
-
6404124400 Jet needle 6DH8-2Jet needle 6DH8-2
-
7404152400 E-ringE-ring
-
8404117000 PackingPacking
-
9404131300 Trottle valve 2.5Trottle valve 2.5
-
10404155000 Needle jet 480P-4Needle jet 480P-4
-
11404104700 GasketGasket
-
12404109100 Pilot jet 40Pilot jet 40
-
13404103300 Float arm pinFloat arm pin
-
14404105000 Float armFloat arm
-
15404105400 FloatFloat
-
16404101500 WasherWasher
-
17404105600 Plug ScrewPlug Screw
-
18404149000 Idle adjusting screwIdle adjusting screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404102800 Throttle stop screwThrottle stop screw
-
22404105800 CapCap
-
23404101600 Gasket washerGasket washer
-
24404147400 Needle valve 1,5VNeedle valve 1,5V
-
25404106000 Main jet 350 MAGMain jet 350 MAG
-
25404104900 Main jet 340 PTOMain jet 340 PTO
-
26404103000 Tube retainer plateTube retainer plate
-
27404102000 Screw + lock washerScrew + lock washer
-
28404161802 Vent tubeVent tube
-
29404153400 NippleNipple
-
30404127200 Support guideSupport guide
-
31404112700 Baffle plateBaffle plate
-
32404127500 Plunger ass’yPlunger ass’y
-
33404156400 PlatePlate
-
34404127400 SpringSpring
-
36404105500 Screw guideScrew guide
-
37404112000 Tool kitTool kit
