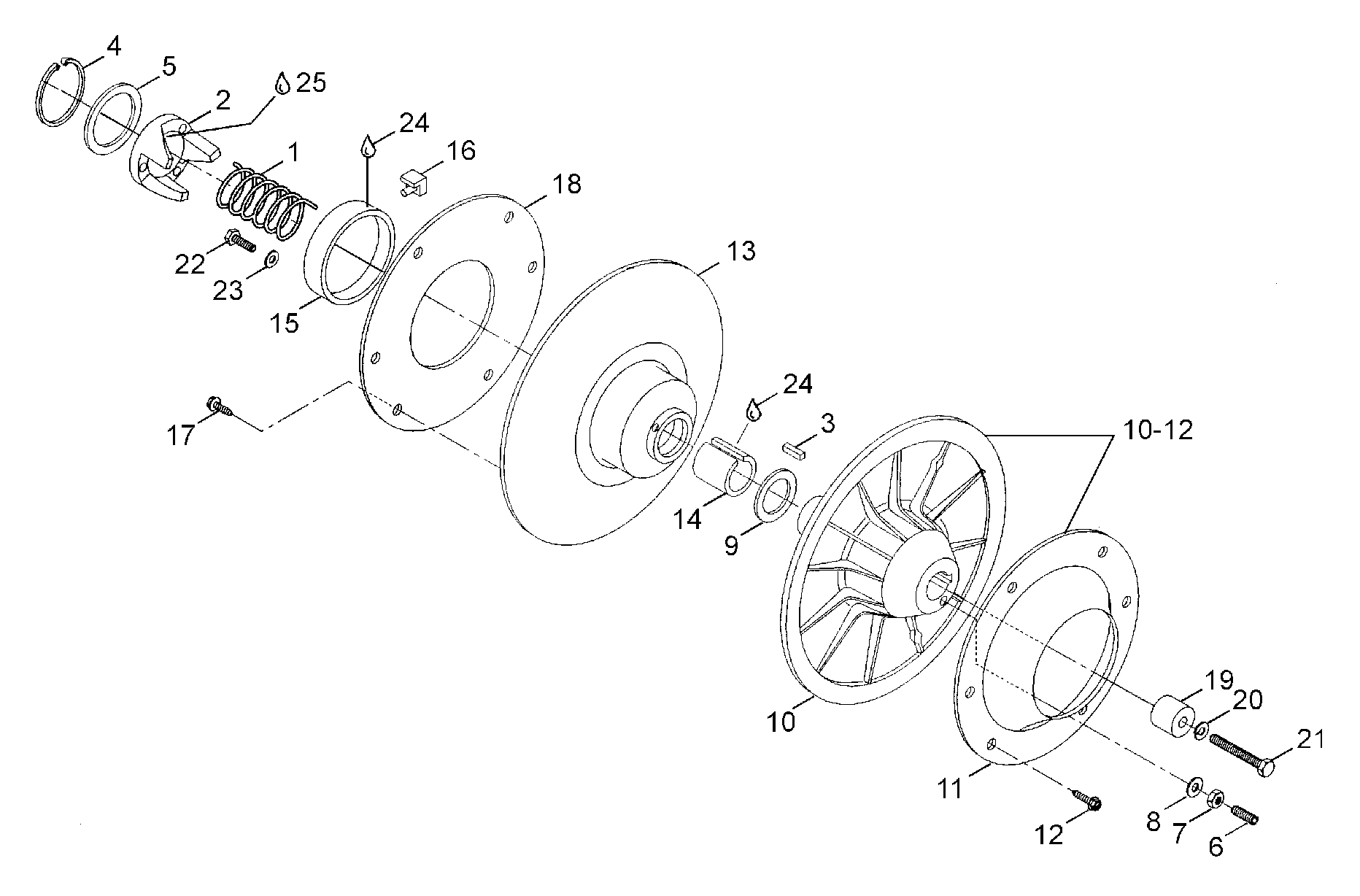

05- Driven Pulley для BRP Lynx G-Touring 600 - 1999
-
№АртикулНазвание
-
114112 Driven pullley. Includes items 1 thru 18Driven pullley. Includes items 1 thru 18
-
1414558900 Spring, beigeSpring, beige
-
2417126337 grad Cam 47 degr.grad Cam 47 degr.
-
3414820800 KeyKey
-
4371903100 CirclipCirclip
-
5504141800 WasherWasher
-
6223563065 ScrewScrew
-
7228061045 NutNut
-
8420245370 WasherWasher
-
9504141900 Thrust washerThrust washer
-
10504142200 Fixed half pulley assy. Includes items 10 thru 12Fixed half pulley assy. Includes items 10 thru 12
-
10504141600 Fixed half pulleyFixed half pulley
-
11504142000 CupCup
-
12732601067 Screw M5x11Screw M5x11
-
13504143600 Sliding pulley assy. Includes items 13 thru 18Sliding pulley assy. Includes items 13 thru 18
-
14415011200 BushingBushing
-
15414873100 Bushing garlock kitBushing garlock kit
-
16414918000 Cam slide shoeCam slide shoe
-
17732601067 Screw M5x11Screw M5x11
-
18504142100 RingRing
-
195441472 SpacerSpacer
-
2020014 WasherWasher
-
2140009 Screw M8x50Screw M8x50
-
22732600022 S.T. Screw M5x12S.T. Screw M5x12
-
23399910000 WasherWasher
-
24413703100 Loctite 609 10ccLoctite 609 10cc
-
25413701000 Loctite 767, 12ozLoctite 767, 12oz
