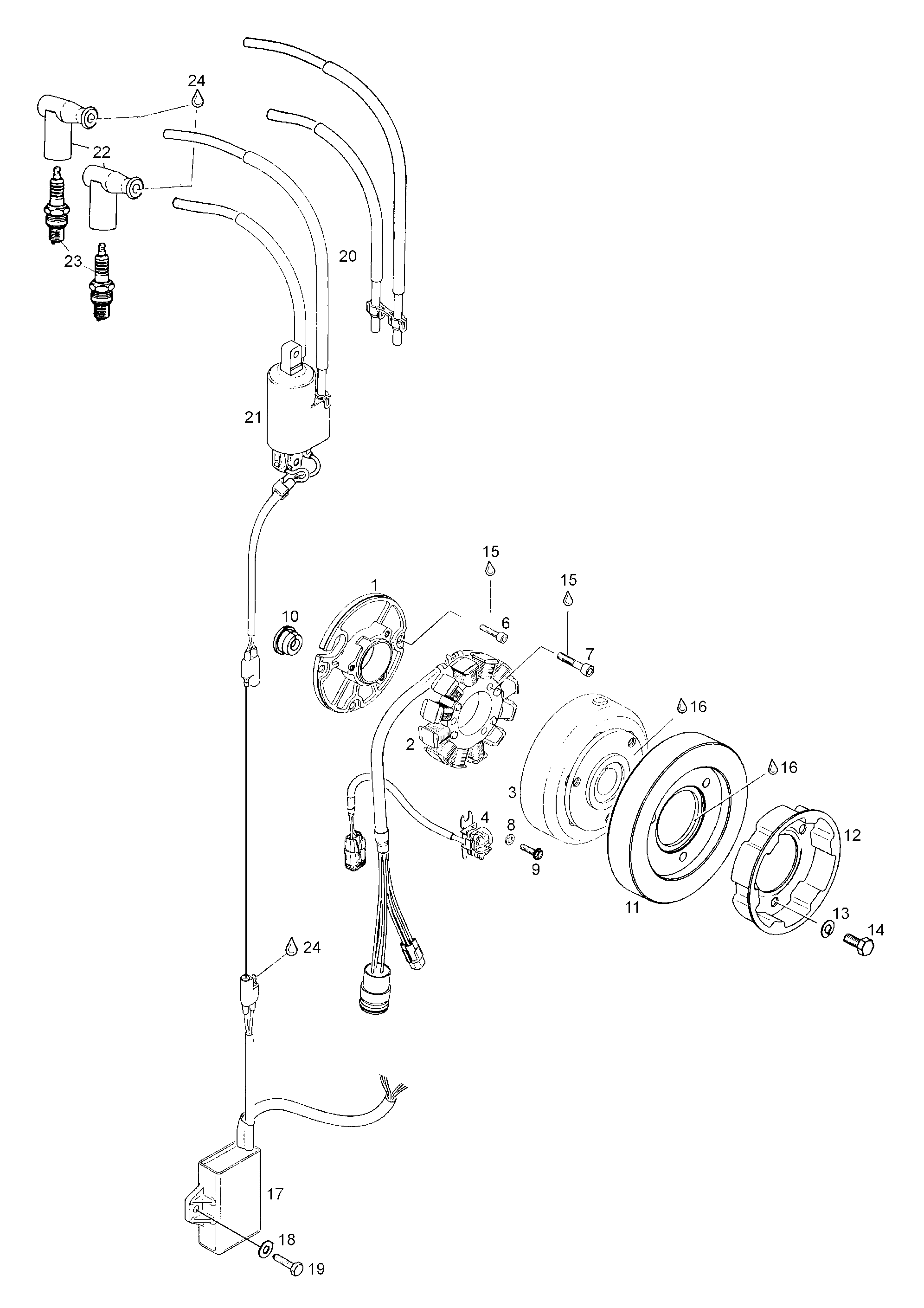

03- Fly Wheel для BRP Lynx G-Touring 600 - 1999
-
№АртикулНазвание
-
1420810262 Stator plateStator plate
-
2420888112 MZ-generator 12V/220W. Includes items 2 thru 4MZ-generator 12V/220W. Includes items 2 thru 4
-
2420886582 Stator assyStator assy
-
3420886592 Magneto flywheelMagneto flywheel
-
4420965649 Pick up assyPick up assy
-
6420941540 Allen screw M5x20Allen screw M5x20
-
7420840886 Allen screw M6x30Allen screw M6x30
-
820002 WasherWasher
-
9420941925 Taptite screw M5x16Taptite screw M5x16
-
10420860965 Cable grommetCable grommet
-
11420866759 FlywheelFlywheel
-
12420852411 Starting pulleyStarting pulley
-
1320014 Lock washerLock washer
-
1440036 Hex. screw M8x20Hex. screw M8x20
-
15420899785 Loctite 221/viol.Loctite 221/viol.
-
16420899788 Loctite 648/greenLoctite 648/green
-
17415085300 CDI-box RX494CDI-box RX494
-
1820003 WasherWasher
-
1940031 Screw M6x25Screw M6x25
-
20420965033 Spark plug cableSpark plug cable
-
21415085400 Ignition coil RX494Ignition coil RX494
-
22278000237 Spark plug protectorSpark plug protector
-
23414961100 Spark plug BR9Spark plug BR9
-
24420897330 Lithium-greaseLithium-grease
