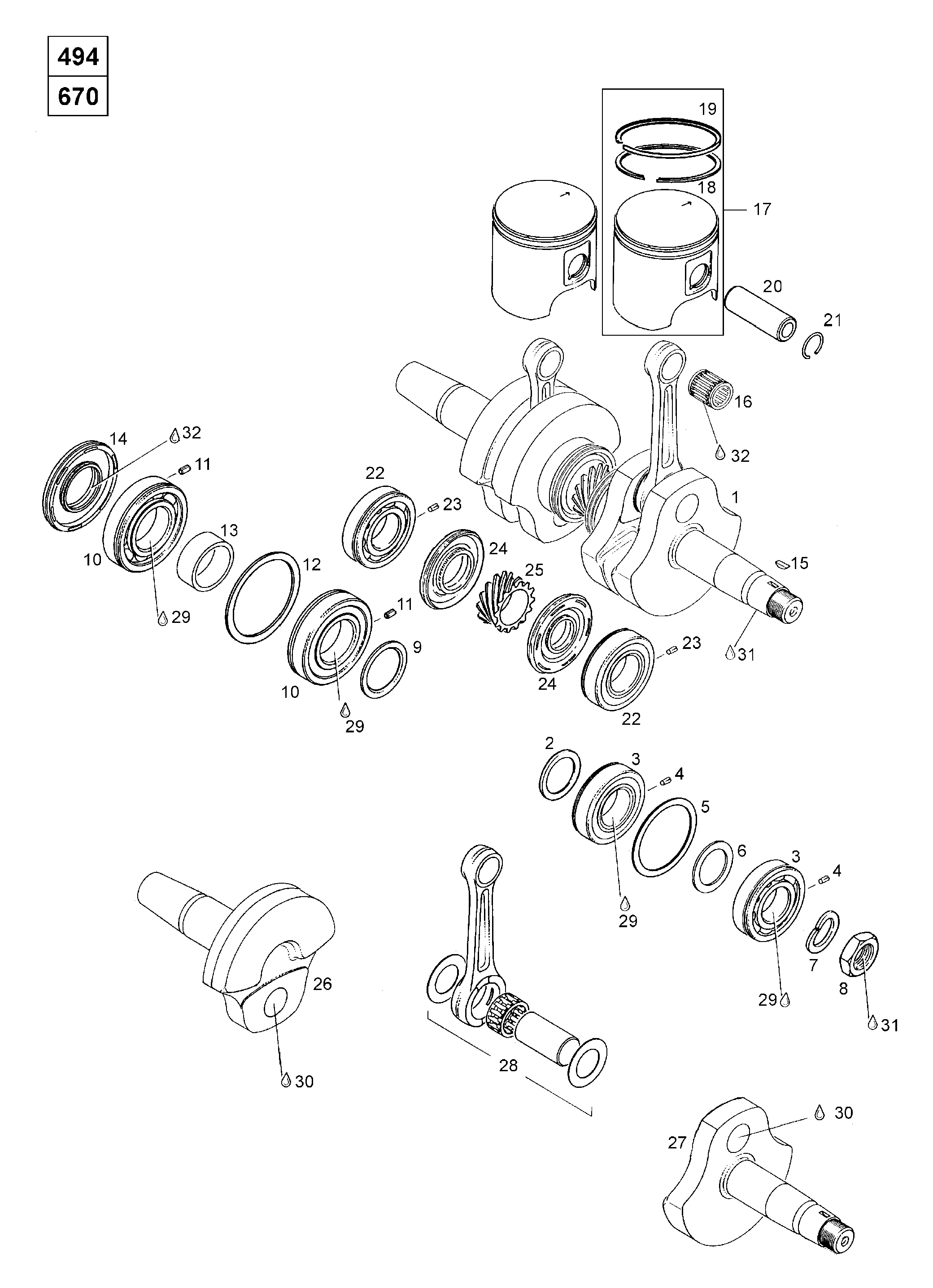

01- Crankshaft Assy для BRP Lynx Rave Big Pipe X - 1999
-
№АртикулНазвание
-
1420887984 Crankshaft assy. Includes items 1 thru 15 Notice ref. numbers 7 and 8 not included ref. number 1-15 crankshaft assy.Crankshaft assy. Includes items 1 thru 15 Notice ref. numbers 7 and 8 not included ref. number 1-15 crankshaft assy.
-
2420827445 SpacerSpacer
-
3420832538 Ball bearing assy. Includes items 3 thru 4Ball bearing assy. Includes items 3 thru 4
-
4420929972 Drive pinDrive pin
-
5420827050 Retainer diskRetainer disk
-
6420427684 Adjuster washerAdjuster washer
-
7420945759 Lock washerLock washer
-
8420842230 Nut M22Nut M22
-
9420827760 Shim, 2 mmShim, 2 mm
-
10420832574 Bearing 6207 assy. Includes items 10 thru 11Bearing 6207 assy. Includes items 10 thru 11
-
11420929972 PinPin
-
12420927710 Retaining diskRetaining disk
-
13420847684 Distance sleeveDistance sleeve
-
14420831950 Oil sealOil seal
-
15420246015 Woodruff-keyWoodruff-key
-
16420832425 Needle cageNeedle cage
-
17420887615 Piston 77.90 mm. Includes items 17 thru 19Piston 77.90 mm. Includes items 17 thru 19
-
17420887616 Piston 78.15 mm. Includes items 17 thru 19Piston 78.15 mm. Includes items 17 thru 19
-
18420815020 Retangular ring 78.00Retangular ring 78.00
-
18420815021 Retangular ring 78.25Retangular ring 78.25
-
19420815090 Semi-trap. ring 78.00mSemi-trap. ring 78.00m
-
19420815091 Semi-trap. ring 78.25mSemi-trap. ring 78.25m
-
20420916370 Piston pinPiston pin
-
21420845100 CirclipCirclip
-
22420832538 Bearing 6206 assy. Includes items 22 thru 23Bearing 6206 assy. Includes items 22 thru 23
-
23420929972 Drive pinDrive pin
-
24420831990 Oil sealOil seal
-
25420935748 Central gear 14TCentral gear 14T
-
26420818704 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
27420818734 Crankshaft MAG.-sideCrankshaft MAG.-side
-
28420887988 Repair kit MAG. sideRepair kit MAG. side
-
28420887989 Repair kit P.T.O. sideRepair kit P.T.O. side
-
29420297434 Loctite 15378Loctite 15378
-
30420897340 Loctite 14486Loctite 14486
-
31420899785 Loct.221/viol.Loct.221/viol.
