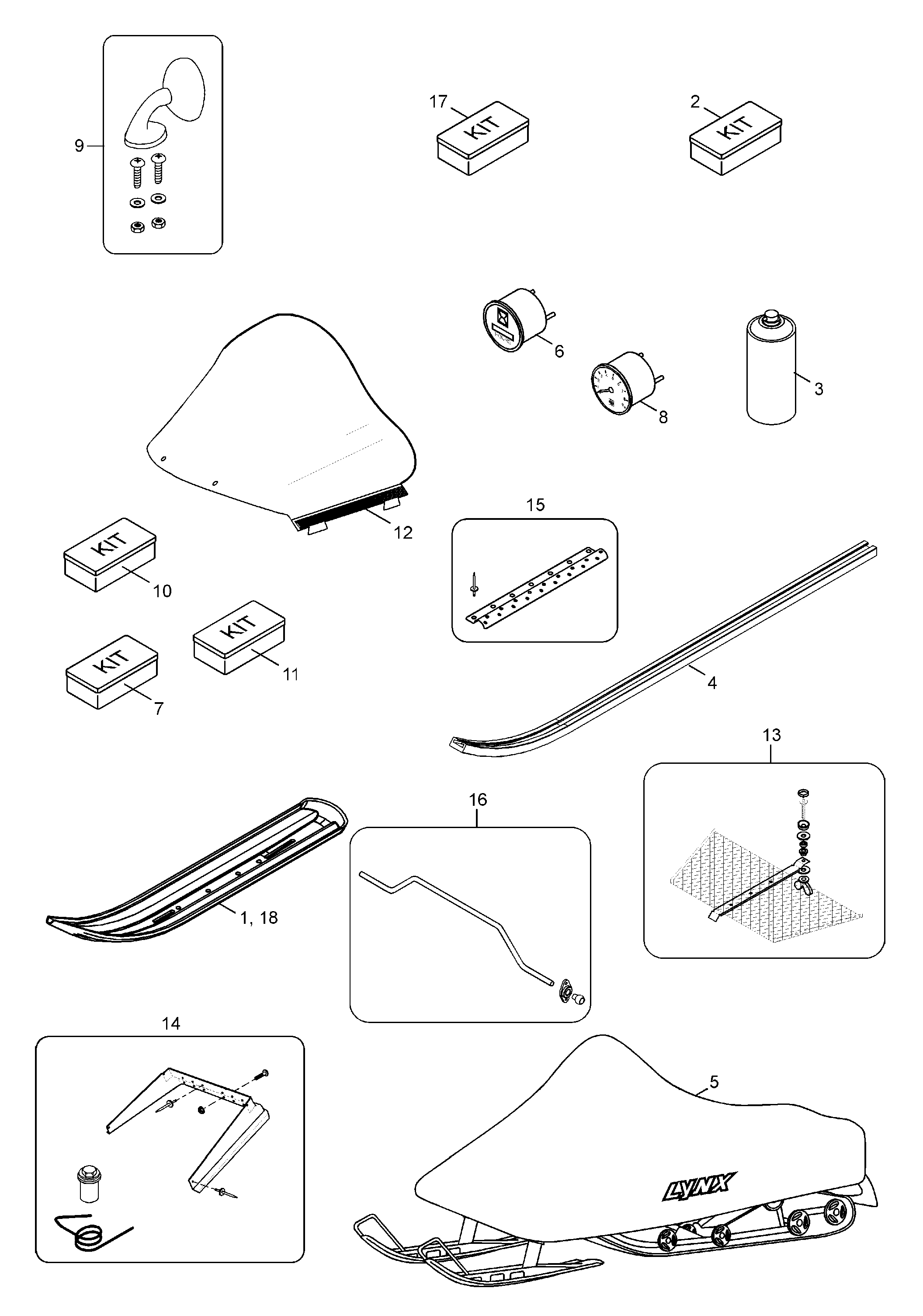

11- Accessories для BRP Lynx Rave Big Pipe X - 1999
-
№АртикулНазвание
-
11471007 Skiliner, blackSkiliner, black
-
11471007S Skiliner, blueSkiliner, blue
-
11471007K skiliner, yellowskiliner, yellow
-
25342688 Electric starter satsElectric starter sats
-
31328 Spray-paint, redSpray-paint, red
-
45343349 Runner shoe, redRunner shoe, red
-
45341936 Runner shoe, yellowRunner shoe, yellow
-
65343943 Hour Meter KitHour Meter Kit
-
75245043 Convertible Seat KitConvertible Seat Kit
-
85342093 Temperature Gauge KitTemperature Gauge Kit
-
9211216501 Mirror kitMirror kit
-
105243729 Plastic ski assyPlastic ski assy
-
115342689 Reverse kitReverse kit
-
125143620 Windscreen, highWindscreen, high
-
125144974 Windsc.low, blackWindsc.low, black
-
135342325 Grid kitGrid kit
-
145342324 Ice KitIce Kit
-
155345050 Side Binding redSide Binding red
-
155345051 Side Binding yellowSide Binding yellow
-
155345052 Side Binding blackSide Binding black
-
165342815 Sway bar kit d14Sway bar kit d14
-
175145073 Add. bottom protec. redAdd. bottom protec. red
-
175145074 Add. bottom protec. yellowAdd. bottom protec. yellow
-
175145075 Add. bottom protec. blueAdd. bottom protec. blue
-
175145076 Add. bottom protec. blackAdd. bottom protec. black
