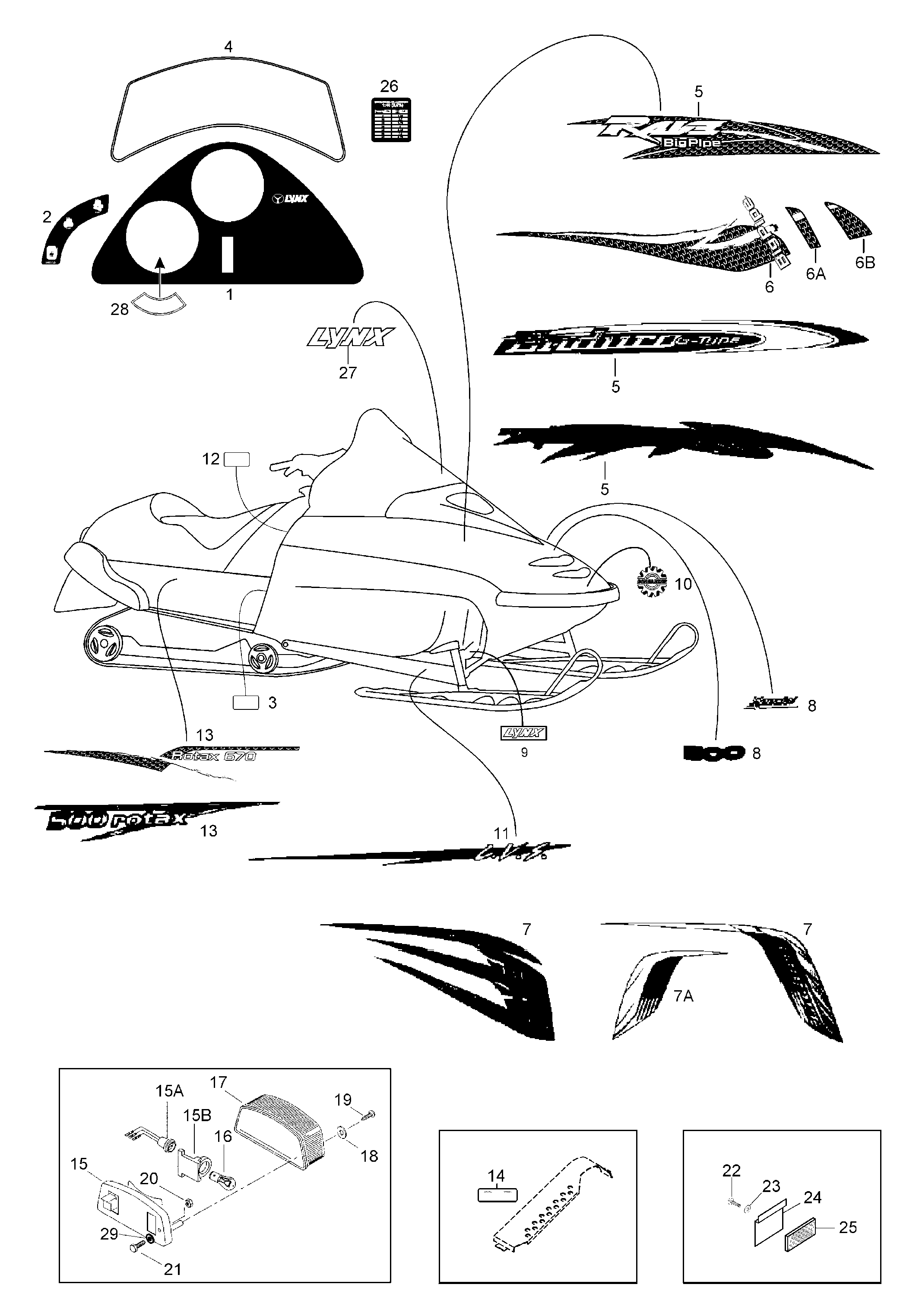

09- Decals для BRP Lynx Rave Big Pipe X - 1999
-
№АртикулНазвание
-
5144228 Rave, chassie (11, 13)Rave, chassie (11, 13)
-
5144227 Rave, hood (1, 2, 5, 6 - 6B, 10, 27)Rave, hood (1, 2, 5, 6 - 6B, 10, 27)
-
5143364 Rave inst. decal (3, 4, 12, 14)Rave inst. decal (3, 4, 12, 14)
-
15241570 Control panel decalControl panel decal
-
25444818 Grip heater decalGrip heater decal
-
3418002200 CE-decalCE-decal
-
45241725 Instruction DecalInstruction Decal
-
55244546 RAVE B. P. -decal R.H.RAVE B. P. -decal R.H.
-
55244547 RAVE B. P. -decal L.H.RAVE B. P. -decal L.H.
-
65244548 Hood decal, upperHood decal, upper
-
6a5344549 Hood decal, middleHood decal, middle
-
6b5344550 Hood decal, lowerHood decal, lower
-
10516000282 Logo-BombardierLogo-Bombardier
-
115244554 Decal L.V.S. L.H.Decal L.V.S. L.H.
-
115244553 Decal L.V.S. R.H.Decal L.V.S. R.H.
-
12544068 Oil check decalOil check decal
-
135244552 Framedecal L.H.Framedecal L.H.
-
135244551 Framedecal R,H.Framedecal R,H.
-
14546820 Pulley decalPulley decal
-
15b414979411 Rubber damperRubber damper
-
155341214 Taillamp assy. Includes items 15 thru 20Taillamp assy. Includes items 15 thru 20
-
15414979400 Taillamp housingTaillamp housing
-
15a414979400 SocketSocket
-
16410504000 BulbBulb
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1940613 ScrewScrew
-
2033200 Nut M6Nut M6
-
2140002 Screw M6x40Screw M6x40
-
2240073 Screw 3.5x16Screw 3.5x16
-
225342485 Front reflector kit. Includes items 22 thru 25Front reflector kit. Includes items 22 thru 25
-
2320037 WasherWasher
-
245442484 Bracket of reflectorBracket of reflector
-
2521060 ReflectorReflector
-
275444539 Decal-LynxDecal-Lynx
-
285444852 Decal RPM limitsDecal RPM limits
-
2920009 WasherWasher
