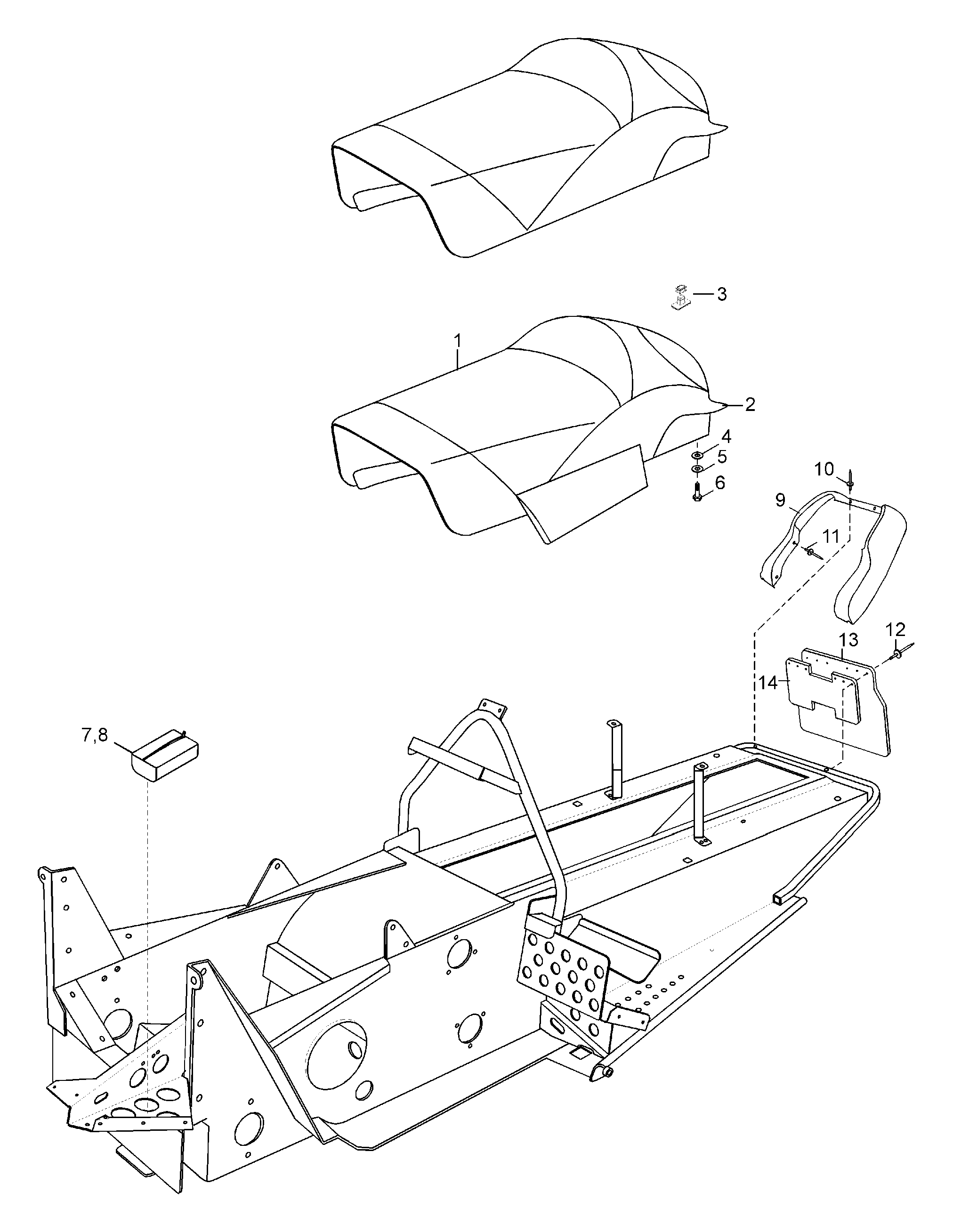

09- Body для BRP Lynx Rave Big Pipe X - 1999
-
№АртикулНазвание
-
15244397 Seat assy. Includes items 1 thru 2Seat assy. Includes items 1 thru 2
-
25344396 Seat coverSeat cover
-
328354 Seat BuckleSeat Buckle
-
420010 WasherWasher
-
520014 Lock washerLock washer
-
640047 Screw M8x30Screw M8x30
-
75443355 Tool box with tools. Includes items 7 thru 8Tool box with tools. Includes items 7 thru 8
-
834015 Tool boxTool box
-
95243388 Rear bumber guardRear bumber guard
-
1036036 RivetRivet
-
1236072 RivetRivet
-
13534727 Snow guardSnow guard
-
145340584 SupportSupport
