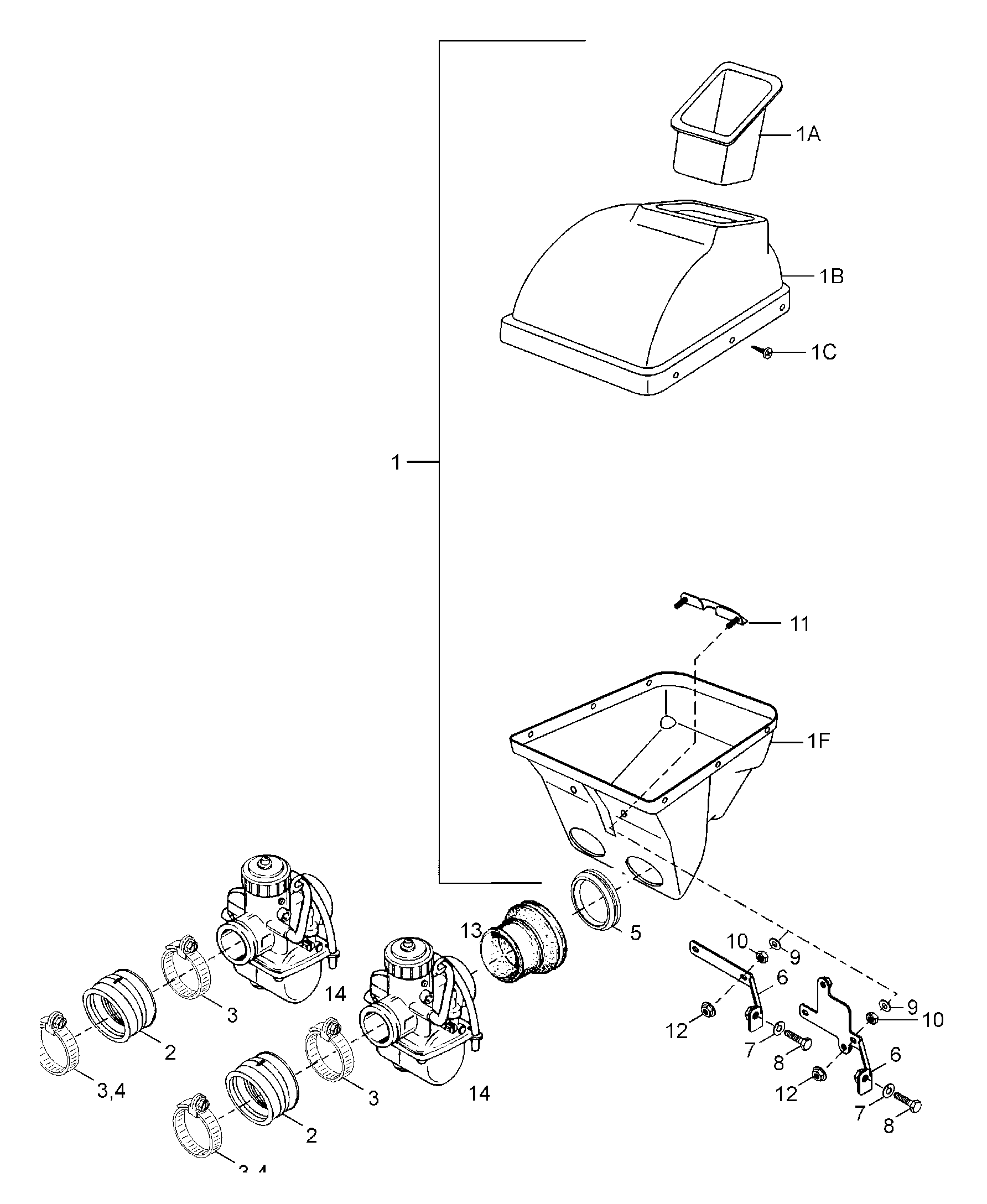

01- Air Silencer для BRP Lynx Rave Snowcross - 1999
-
№АртикулНазвание
-
1a5343654 Suction inletSuction inlet
-
1b5343652 Plastic coverPlastic cover
-
1c414644300 Dart windshieldDart windshield
-
1f5343651 Plastic bottomPlastic bottom
-
21472168 Rubber flangeRubber flange
-
3414532800 ClampClamp
-
5570049000 Intake adaptor VM40Intake adaptor VM40
-
65444007 SupportSupport
-
720061 Spring washerSpring washer
-
840029 Screw M6x16Screw M6x16
-
920009 WasherWasher
-
1033200 NutNut
-
115443981 SupportSupport
-
13570136900 Rubber connectorRubber connector
-
141472105 Carburetor TM40Carburetor TM40
