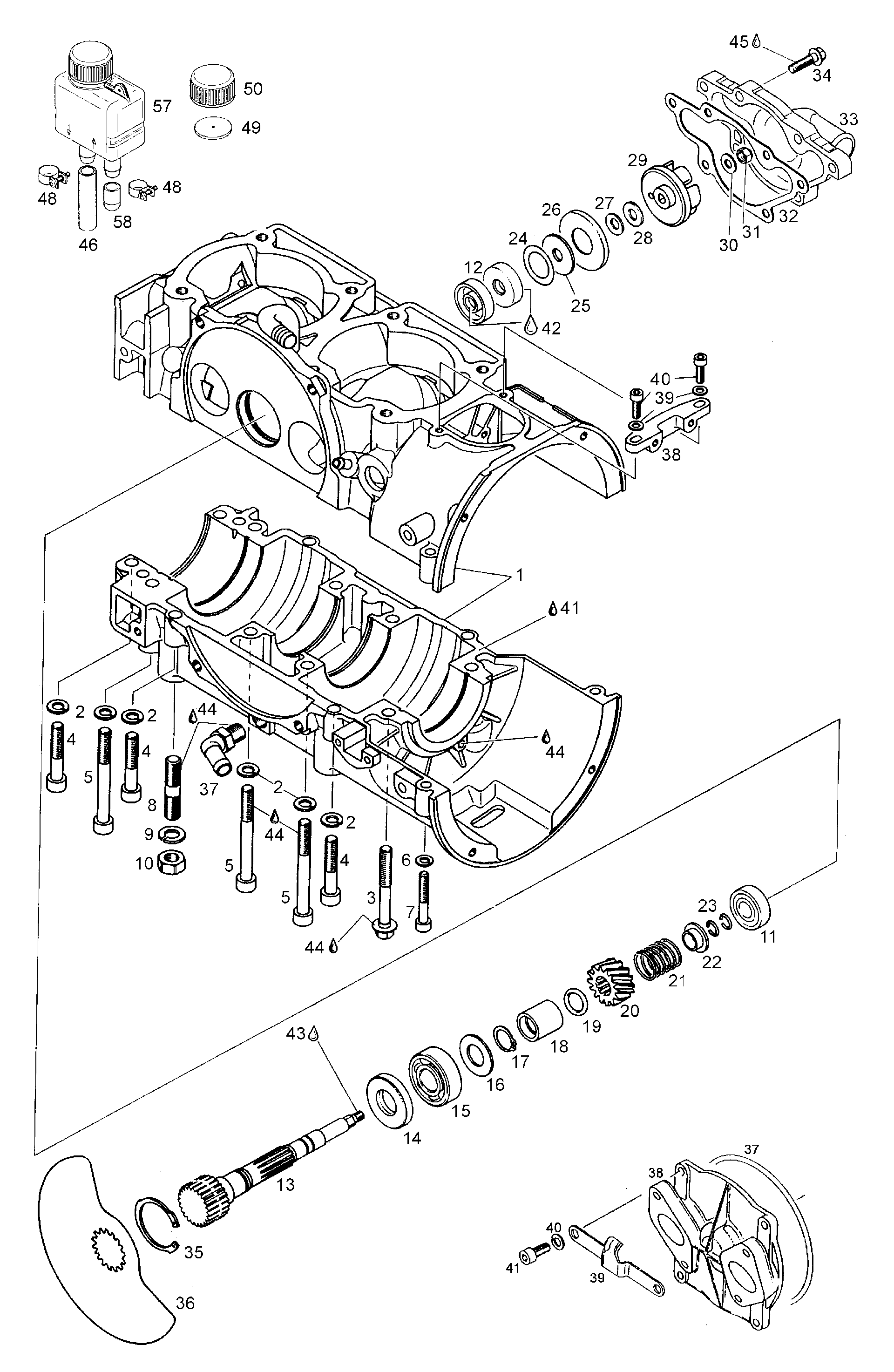

05- Crankcase для BRP Lynx Rave Snowcross - 1999
-
№АртикулНазвание
-
11472174 CrankcaseCrankcase
-
2420945752 Lock washerLock washer
-
3420841306 Screw, M8x65Screw, M8x65
-
4420841561 Allen screw M8x45Allen screw M8x45
-
5420841831 Allen screw M8x75Allen screw M8x75
-
6420945751 Lock washerLock washer
-
7420241816 Allen screw M6x40Allen screw M6x40
-
8420940400 Stud M10x25Stud M10x25
-
9420945753 Lock washerLock washer
-
10420242091 Nut M10Nut M10
-
11420932797 BearingBearing
-
12420850710 Oil sealOil seal
-
131472176 Rotary valve shaftRotary valve shaft
-
14420930580 Oil sealOil seal
-
15420932032 BearingBearing
-
16420227439 ShimShim
-
17420845450 SleeveSleeve
-
18420847282 ShimShim
-
19420831500 O-ringO-ring
-
20420935735 Rotary valve gear 14TRotary valve gear 14T
-
21420938810 SpringSpring
-
22420827430 Spring holding cupSpring holding cup
-
23420845160 CirclipCirclip
-
24420944462 Shim 0.5 mmShim 0.5 mm
-
25420850890 Rubber washerRubber washer
-
26420827970 Supporting plateSupporting plate
-
27420227945 Thrust washerThrust washer
-
28420227155 Friction washerFriction washer
-
29420922036 ImpellerImpeller
-
30420244211 WasherWasher
-
31420842042 Lock nut M6Lock nut M6
-
32420931355 GasketGasket
-
33420922551 Pump housingPump housing
-
34420240031 Screw M6x25Screw M6x25
-
35420845260 Snap ringSnap ring
-
361472172 Rotary valve, 501Rotary valve, 501
-
37420831360 O-ringO-ring
-
381472175 Rotary valve coverRotary valve cover
-
39420851345 Intake silencer plateIntake silencer plate
-
40420945752 Lock washerLock washer
-
41420240071 Allen screw M8x20Allen screw M8x20
-
42420922245 Angular tubeAngular tube
-
43420851280 Pick up fixationPick up fixation
-
44420827800 WasherWasher
-
45420240181 Allen screw M5x20Allen screw M5x20
-
46420956231 Oil line 140mmOil line 140mm
-
46420956232 Oil line 330mmOil line 330mm
-
48420951260 ClampClamp
-
49420850350 GasketGasket
-
50420956250 Oil tank capOil tank cap
-
52420899784 Loctite 574/orangeLoctite 574/orange
-
54420899788 Loctite 648/greenLoctite 648/green
-
55420899785 Loctite 221/viol.Loctite 221/viol.
-
56420897651 Loctite 243/blueLoctite 243/blue
-
57420956240 Oil tank capOil tank cap
-
58420960279 Closure capClosure cap
