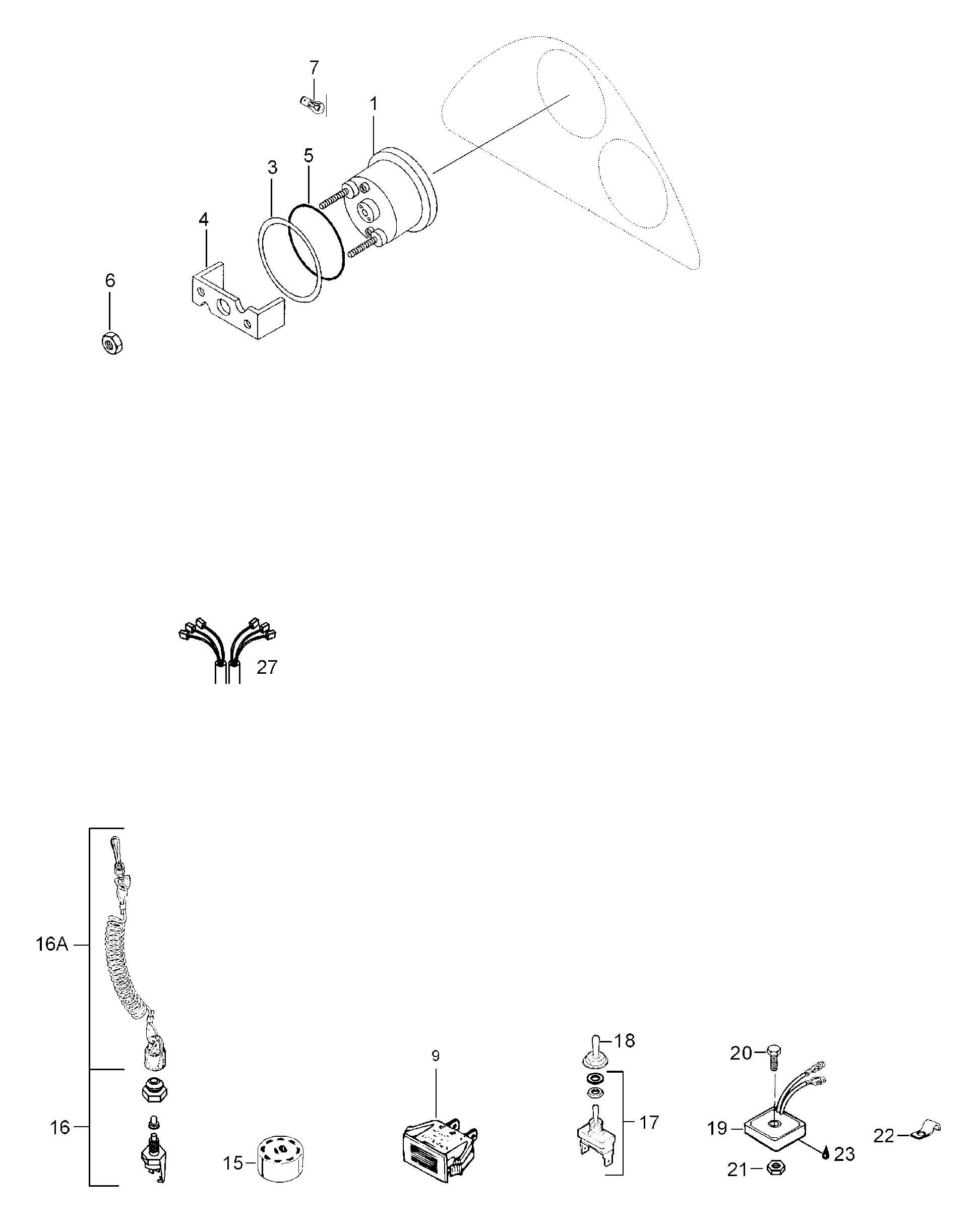

10- Electric для BRP Lynx Rave Snowcross - 1999
-
№АртикулНазвание
-
1415096500 Tachometer whiteTachometer white
-
3517258500 WasherWasher
-
4414806500 HolderHolder
-
5414807100 O-ringO-ring
-
633009 Nut elastic M6Nut elastic M6
-
7410504200 Instrumentation bulbInstrumentation bulb
-
9410109700 Lamp-pilotLamp-pilot
-
15572150700 Ignition switch blockIgnition switch block
-
16544957 Emercency switch. Includes items 16 thru 16Emercency switch. Includes items 16 thru 16
-
16a4299163 Switch cap assySwitch cap assy
-
17410110700 SwitchSwitch
-
18570013900 Rubber cover for switRubber cover for swit
-
195441403 Regulator assyRegulator assy
-
2040003 Screw M6x35Screw M6x35
-
2133010 Nut elastic M6Nut elastic M6
-
22414227300 ClampClamp
-
23413706400 Litium greaseLitium grease
-
275242790 Wire assyWire assy
