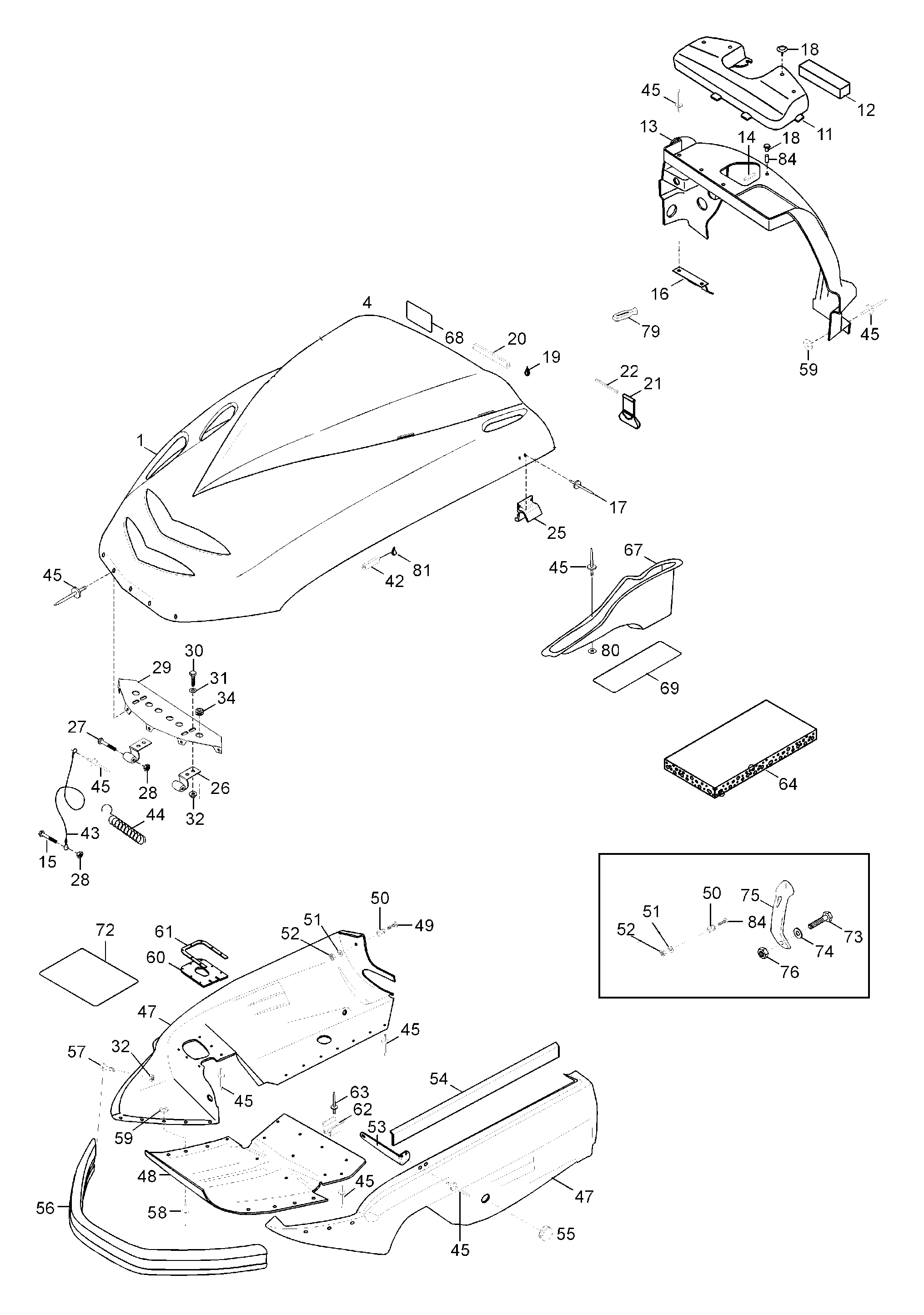

09- Hood для BRP Lynx Rave Snowcross - 1999
-
№АртикулНазвание
-
11472142 Hood redHood red
-
115343385 Intake coverIntake cover
-
125343389 FoamFoam
-
135144790 Rear hoodRear hood
-
1428413 Sealing listSealing list
-
1540247 Screw M5x16Screw M5x16
-
165343015 Bracket, consoleBracket, console
-
1736009 RivetRivet
-
18414644300 Dart-windshieldDart-windshield
-
1932045 Loctite 406Loctite 406
-
205442148 Rubber ribbonRubber ribbon
-
21547233 Pull rubberPull rubber
-
2241011 Spring PinSpring Pin
-
255441542 GuideGuide
-
265440164 Hinge weld.Hinge weld.
-
2740235 Screw M5x35Screw M5x35
-
2833009 Nut elastic M5Nut elastic M5
-
3040029 Screw M6x16Screw M6x16
-
3120009 WasherWasher
-
3233200 Nut M6Nut M6
-
4033010 Nut elastic M6Nut elastic M6
-
425441964 TrimTrim
-
435441558 Retainer CableRetainer Cable
-
442505171211 SpringSpring
-
4536036 RivetRivet
-
475141335 Bottom pan, L.H.Bottom pan, L.H.
-
475141333 Bottom pan, R.H.Bottom pan, R.H.
-
485142892 Bottom pan, middleBottom pan, middle
-
4940168 Slot screwSlot screw
-
50542307 Counter rollCounter roll
-
5120037 WasherWasher
-
5233008 Nut elastic M4Nut elastic M4
-
535343856 Bracket R.H.Bracket R.H.
-
535343855 Bracket L.H.Bracket L.H.
-
54537206 SupportSupport
-
55570277300 CapCap
-
565241557 BumperBumper
-
5740031 Screw M6x25Screw M6x25
-
5836037 RivetRivet
-
5920008 WasherWasher
-
605342198 GrommetGrommet
-
615342199 PlatePlate
-
625342387 GuideGuide
-
6336083 RivetRivet
-
64414632400 (74'' x 34'' x 1/2)(74'' x 34'' x 1/2)
-
675342183 Air deflector brakeAir deflector brake
-
695342366 Reflector tapeReflector tape
-
7340170 Screw M5x20Screw M5x20
-
7420008 WasherWasher
-
75570027100 Hood latchHood latch
-
7633009 Nut elastic M5Nut elastic M5
-
8132045 Loctite 406Loctite 406
-
845443985 Rubber sleeveRubber sleeve
