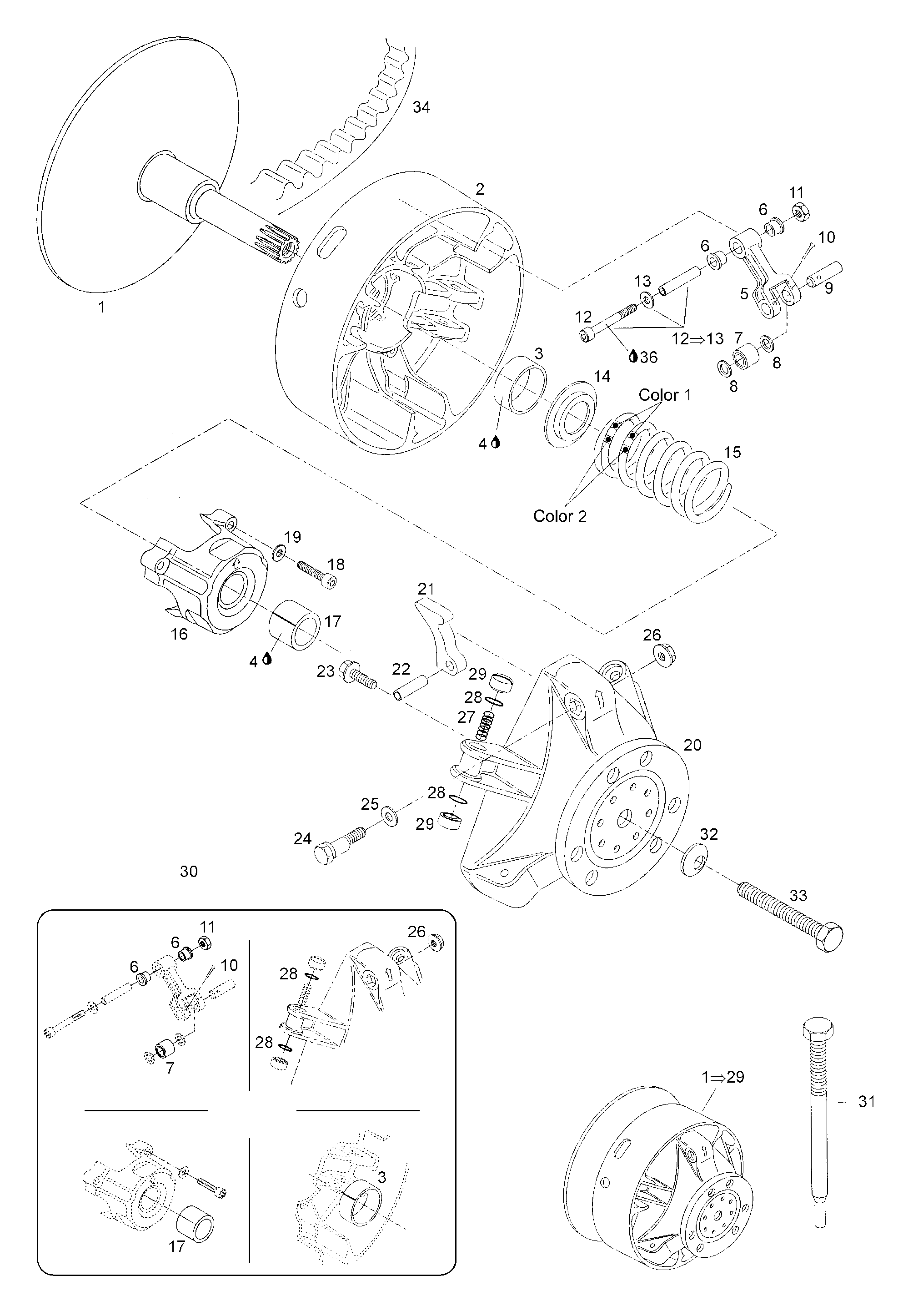

05- Clutch для BRP Lynx Sport XR 500F - 1999
-
№АртикулНазвание
-
114252 Drive pulley assy. Includes items 1 thru 29Drive pulley assy. Includes items 1 thru 29
-
1417222071 Inner half assyInner half assy
-
2417222049 Outer half assy. Includes items 2 thru 3Outer half assy. Includes items 2 thru 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609Loctite 609
-
5417003801 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004309 PinPin
-
10732958001 Cotter pinCotter pin
-
1133010 Nut elastic M6Nut elastic M6
-
12417004800 Fitting screw assy. Includes items 12 thru 13Fitting screw assy. Includes items 12 thru 13
-
12222965065 Allen screw M6x50Allen screw M6x50
-
13224061151 Flat washer 6mmFlat washer 6mm
-
14417222044 Spring seatSpring seat
-
15414689500 Spring blue/yellowSpring blue/yellow
-
16417222157 Spring cover assy. Includes items 16 thru 17Spring cover assy. Includes items 16 thru 17
-
17417004501 Spring cover bushingSpring cover bushing
-
18222964066 Allen screw M6x40Allen screw M6x40
-
19420245370 Friction washerFriction washer
-
20417004700 Gouvernor cup assyGouvernor cup assy
-
21417005291 Ramp 291Ramp 291
-
22732804009 Dowel tube M8x24Dowel tube M8x24
-
23732601249 Screw M6x18Screw M6x18
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26228467045 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-RingO-Ring
-
29417005800 Shoe sliderShoe slider
-
30417011008 Clutch repair kitClutch repair kit
-
31529007900 Puller inner halfPuller inner half
-
32732900026 Washer M12Washer M12
-
3340800 ScrewScrew
-
34414633800 Drive beltDrive belt
