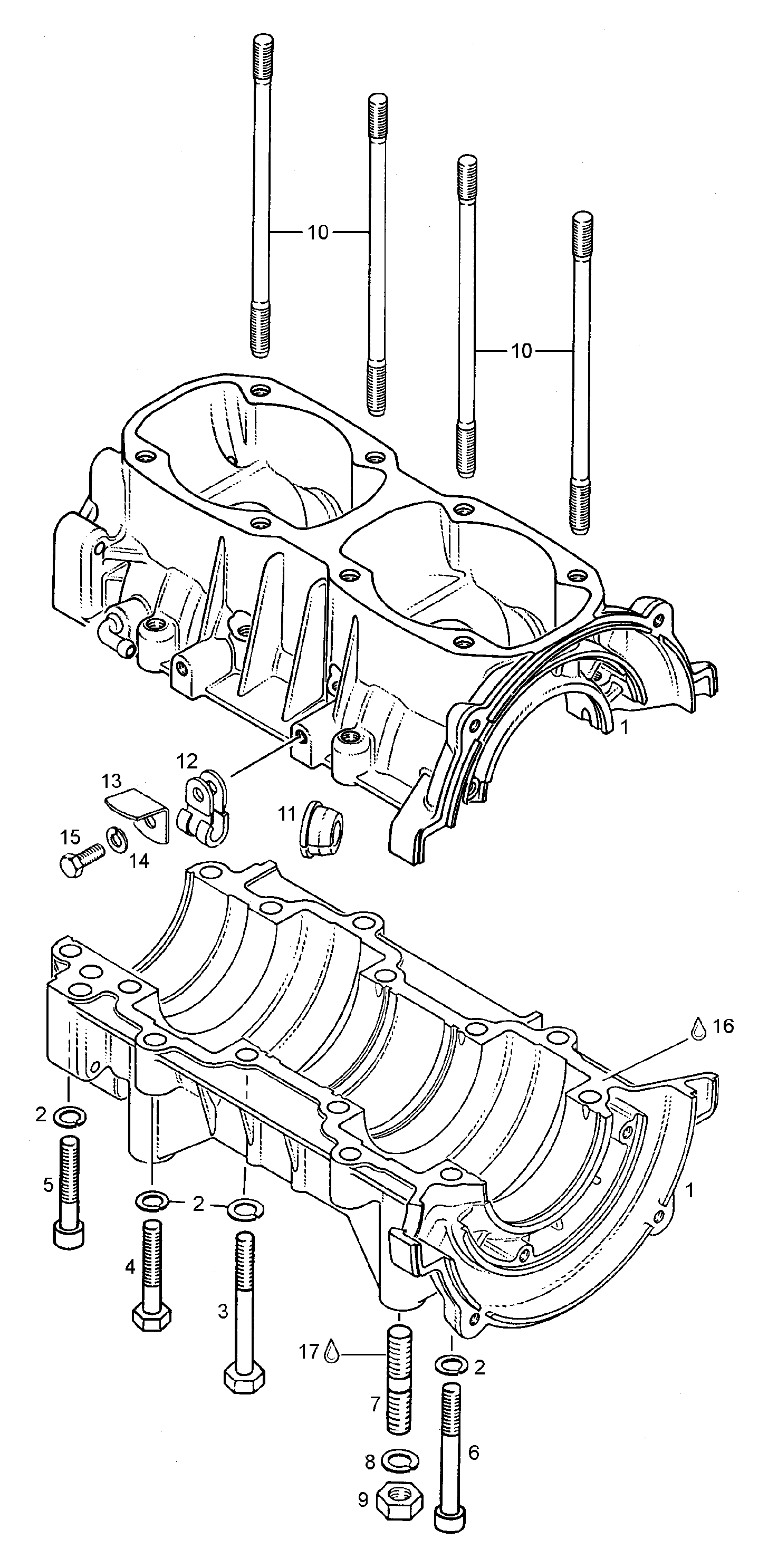

05- Crankcase для BRP Lynx Sport XR 500F - 1999
-
№АртикулНазвание
-
1420887794 Crankcase assy (ref. 11 included)Crankcase assy (ref. 11 included)
-
2420945752 Spring washerSpring washer
-
3420841201 Screw M8x70Screw M8x70
-
4420940631 Screw M8x45Screw M8x45
-
5420841561 Allen screw M8x45Allen screw M8x45
-
6420841841 Allen screw M8x65Allen screw M8x65
-
7420640030 Stud M10Stud M10
-
8420945753 Lock washerLock washer
-
933004 Nut M10Nut M10
-
10420840556 Stud M8x173.5Stud M8x173.5
-
11420860962 Cable grommetCable grommet
-
12420853412 Cable clampCable clamp
-
13420953310 Wire supportWire support
-
14420945751 Lock washerLock washer
-
15420241186 Screw M6x16Screw M6x16
-
16420899784 Loctite 242/orangeLoctite 242/orange
-
17420899785 Loctite 221/violetLoctite 221/violet
