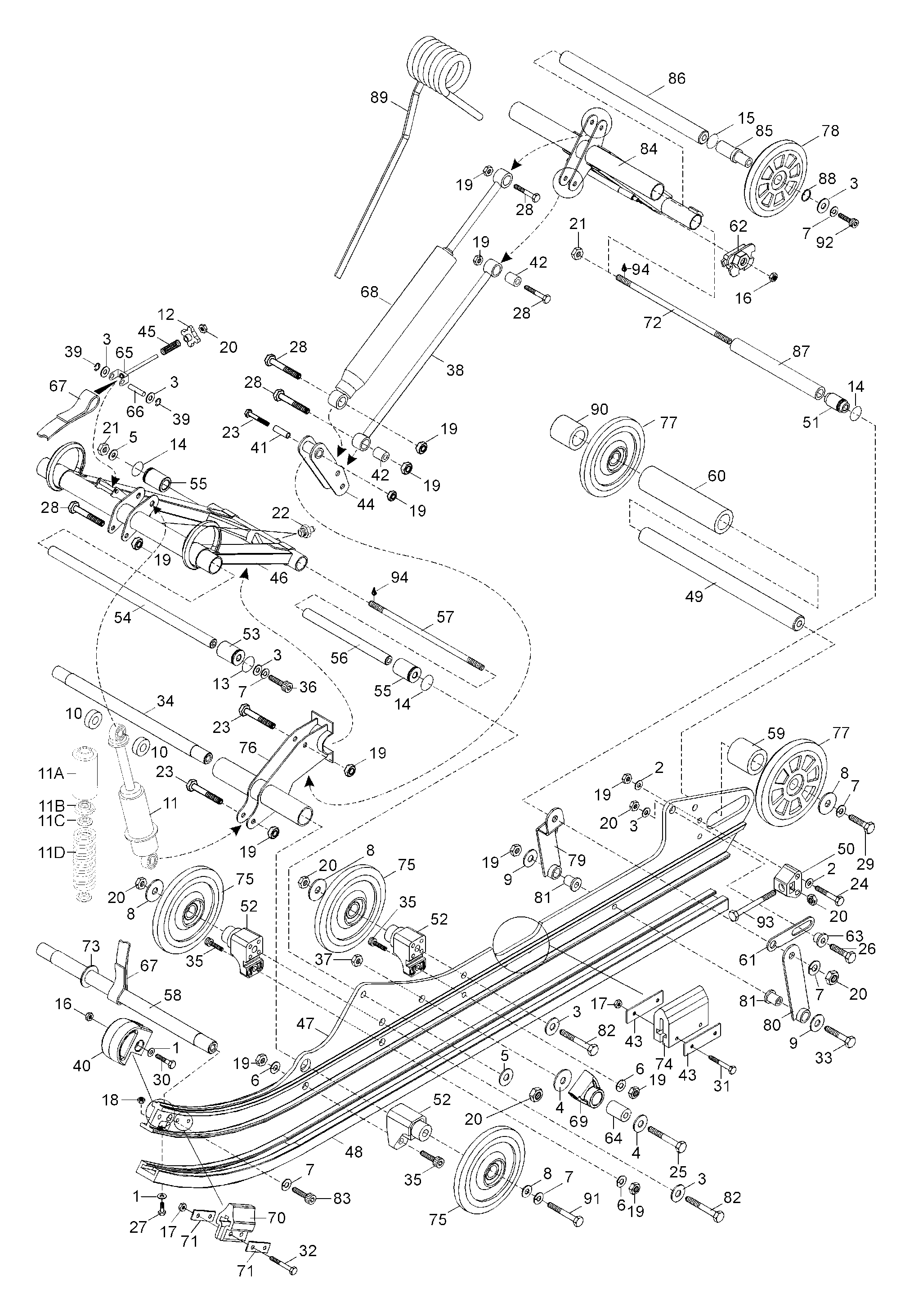

08- Rear Suspension для BRP Lynx Sport XR 500F - 1999
-
№АртикулНазвание
-
120003 WasherWasher
-
220004 WasherWasher
-
320005 WasherWasher
-
420010 WasherWasher
-
5512056700 Lock waherLock waher
-
620014 Lock washerLock washer
-
720068 Lock washerLock washer
-
820023 WasherWasher
-
920078 WasherWasher
-
105443753 SleeveSleeve
-
1123226 Schok frontSchok front
-
11a503188930 ProtectorProtector
-
11b503140600 Spring stopperSpring stopper
-
11c503141600 CapCap
-
11d414968600 SpringSpring
-
12572034000 Adjuster knobAdjuster knob
-
1328404 O-ringO-ring
-
1428406 O-ringO-ring
-
1528405 O-ringO-ring
-
1633200 Nut M6Nut M6
-
1733009 Nut elastic M5Nut elastic M5
-
1833010 Nut elastic M6Nut elastic M6
-
1933011 Nut elastic M8Nut elastic M8
-
2033012 Nut elastic M10Nut elastic M10
-
2133030 Lock nut M10Lock nut M10
-
2234011 Crease nippleCrease nipple
-
2340009 Screw M8x50Screw M8x50
-
2440008 Screw M8x45Screw M8x45
-
2540010 Screw M8x55Screw M8x55
-
2640042 Screw M10x35Screw M10x35
-
2740845 Screw M6x25Screw M6x25
-
2840007 Screw M8x40Screw M8x40
-
2940041 Screw M10x30Screw M10x30
-
3040031 Screw M6x25Screw M6x25
-
3140128 Screw M5x40Screw M5x40
-
3240231 Screw M5x30Screw M5x30
-
3340011 Screw M8x60Screw M8x60
-
345343471 Shaft l=218Shaft l=218
-
3540289 Allen screw M8x25Allen screw M8x25
-
3640134 Allen screw M10x45Allen screw M10x45
-
3733201 Nut elastic M8Nut elastic M8
-
385441795 Pull rodPull rod
-
3941035 CirclipCirclip
-
40534578 Front protectorFront protector
-
415444713 SleeveSleeve
-
42414802600 SleeveSleeve
-
43548387 Support plateSupport plate
-
445344711 Lever weldLever weld
-
45414460600 SpringSpring
-
465242880 Front armFront arm
-
475244820 RunnerRunner
-
485343595 Slider shoeSlider shoe
-
495341511 Rear Axle l=340Rear Axle l=340
-
505341633 LugLug
-
515441524 SleeveSleeve
-
525443748 Wheel SupportWheel Support
-
535441491 SleeveSleeve
-
545441492 Shaft l=393Shaft l=393
-
555441493 SleeveSleeve
-
565441494 SleeveSleeve
-
575441495 StudStud
-
585441508 Shaft l=219Shaft l=219
-
595441512 SleeveSleeve
-
605441513 SleeveSleeve
-
615442566 GuardGuard
-
62572030800 Cam adjuster L.H.Cam adjuster L.H.
-
62572030900 Cam adjuster R.H.Cam adjuster R.H.
-
635441533 SleeveSleeve
-
645443387 SleeveSleeve
-
655441643 Bracket weldBracket weld
-
665441645 PinPin
-
675442878 Stopper StrapStopper Strap
-
6823227 Shock rearShock rear
-
695442112 Spring RollerSpring Roller
-
705442191 Rubber StopperRubber Stopper
-
715442192 Support plateSupport plate
-
725441526 StudStud
-
734181158 Snap ringSnap ring
-
74570023100 Rubber StopperRubber Stopper
-
7546035 Support wheel blackSupport wheel black
-
765242874 Shock SupportShock Support
-
7746032 Support wheel blackSupport wheel black
-
78572091400 Support wheel blackSupport wheel black
-
795344800 Space support R.H.Space support R.H.
-
795344799 Space Support L.H.Space Support L.H.
-
805443659 Space supportSpace support
-
815441632 SleeveSleeve
-
8240226 Screw M10x80Screw M10x80
-
8340241 Allen screw M10x30Allen screw M10x30
-
845243457 Welded Rear ArmWelded Rear Arm
-
855443535 SleeveSleeve
-
865443767 Shaft l=310Shaft l=310
-
875441525 SleeveSleeve
-
8831001 CirclipCirclip
-
895342898 SpringSpring
-
895342897 SpringSpring
-
905444099 SleeveSleeve
-
9140081 Screw M10x100Screw M10x100
-
9240341 Screw M10x75Screw M10x75
-
9340239 Screw M10x100Screw M10x100
-
94413707400 Loctite 271, 10ccLoctite 271, 10cc
