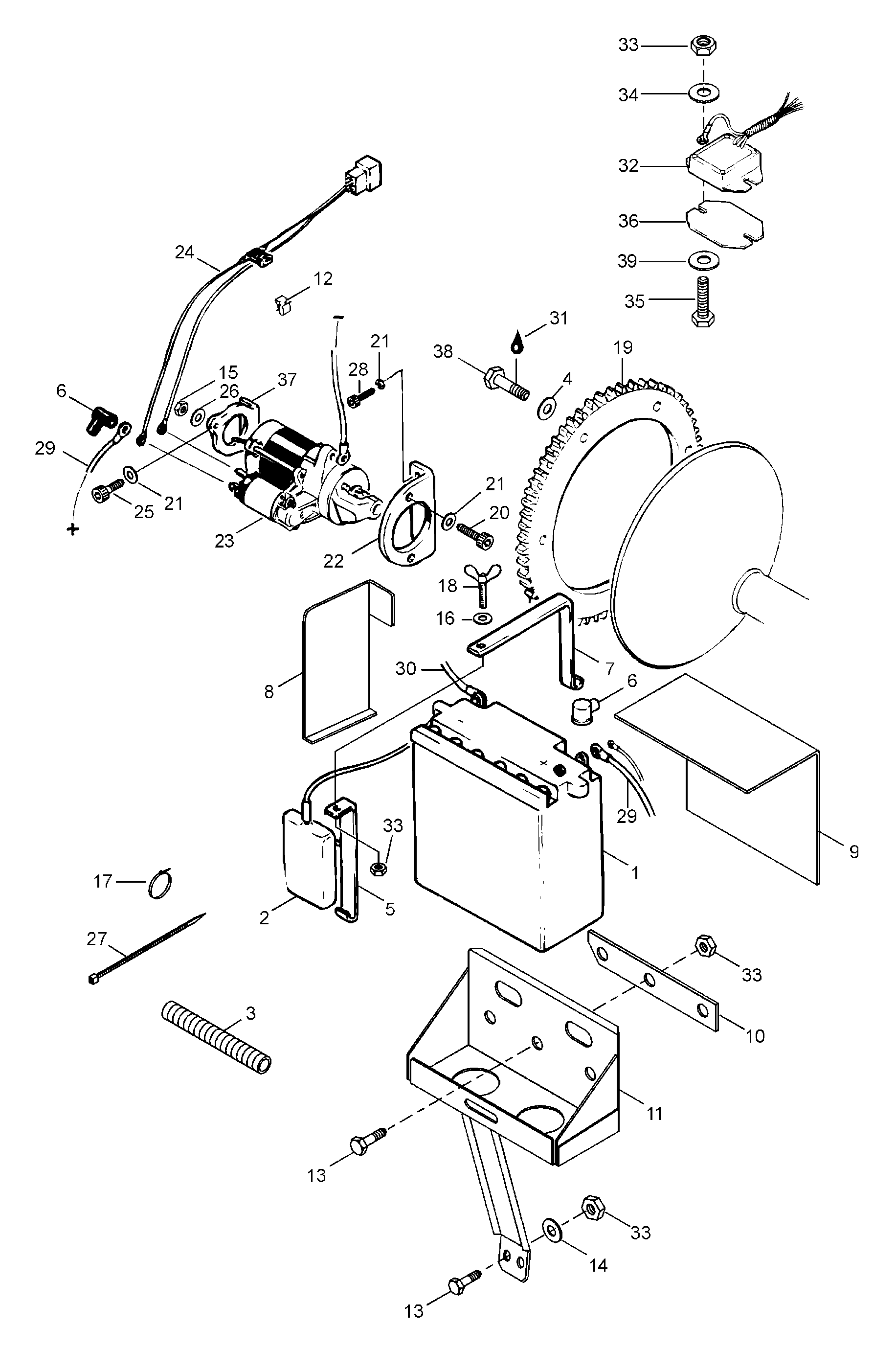

10- Electric Starter Kit для BRP Lynx Sport XR 500F - 1999
-
№АртикулНазвание
-
142200 BatteryBattery
-
21461402 Owerflow bottleOwerflow bottle
-
328012 Cable coverCable cover
-
431081 ShimShim
-
5547274 Steel stripSteel strip
-
6570151000 Cable coverCable cover
-
7547273 Steel stripSteel strip
-
8537271 Heat coverHeat cover
-
9527272 RubberRubber
-
10546264 Rear supportRear support
-
11537248 SupportSupport
-
12414227300 ClipClip
-
1340029 Screw M6x16Screw M6x16
-
1420009 WasherWasher
-
1533009 Nut elastic M5Nut elastic M5
-
1620052 Spring washerSpring washer
-
1727100 FasteningFastening
-
1840108 Screw M6x20Screw M6x20
-
19415043100 Ring gear Z=86Ring gear Z=86
-
2040289 Allen screw M8x25Allen screw M8x25
-
2120014 Lock WasherLock Washer
-
22420951415 Holder frontHolder front
-
23410212400 StarterStarter
-
245440682 CableCable
-
2540066 Allen screw M8x16Allen screw M8x16
-
2620008 WasherWasher
-
2727026 FasteningFastening
-
2840305 Allen screw M8x20Allen screw M8x20
-
295440661 Cable, +Cable, +
-
305440660 Cable, -Cable, -
-
31413707400 Loctite 271, 10ccLoctite 271, 10cc
-
32549264 RectifierRectifier
-
3333010 Nut elastic M6Nut elastic M6
-
3420003 WasherWasher
-
3540030 Screw M6x20Screw M6x20
-
36544741 Cooling plateCooling plate
-
37420951426 Support rearSupport rear
-
38732601246 Screw M8x16Screw M8x16
-
3920033 WasherWasher
