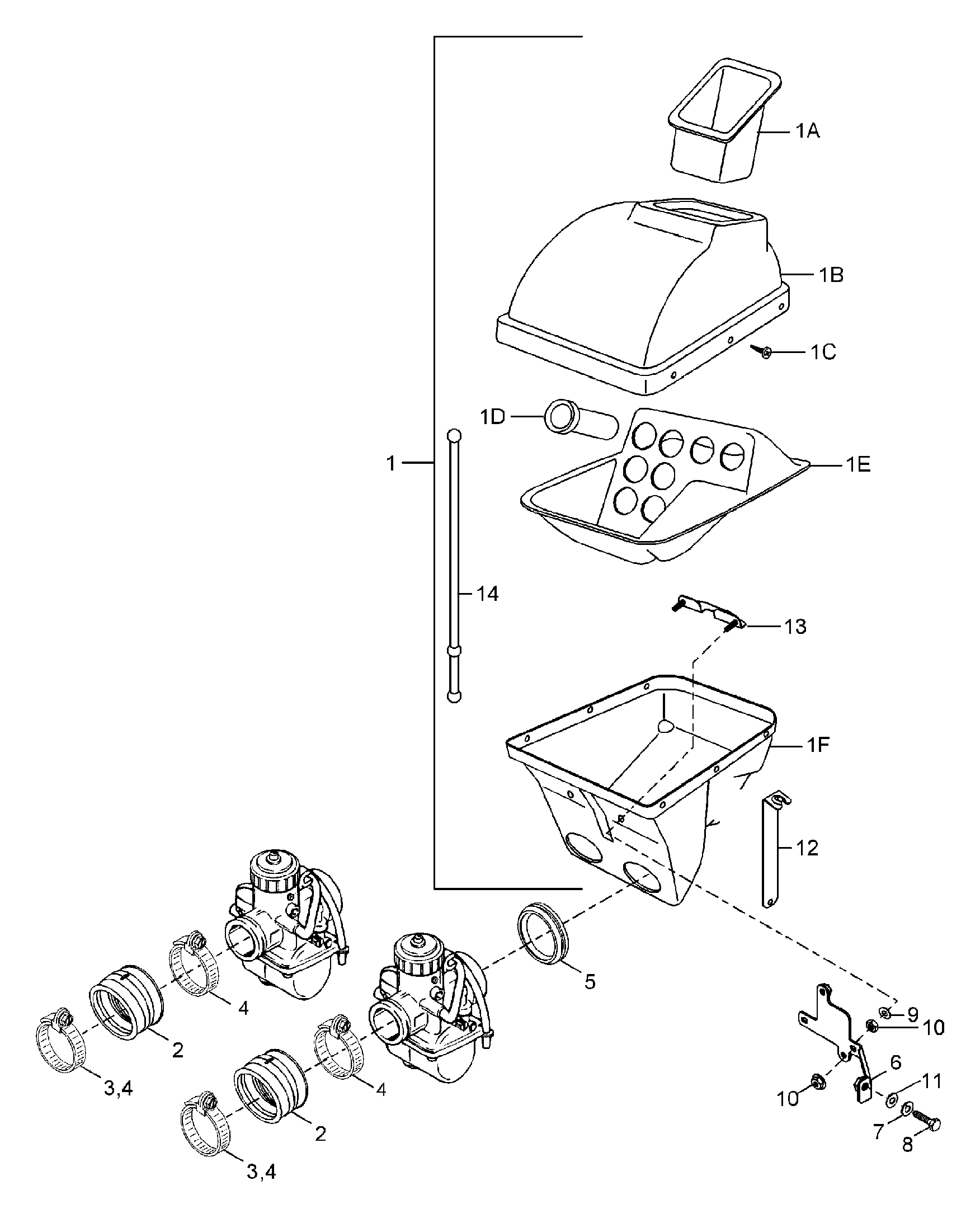

01- Air Silencer для BRP Lynx G-Touring 700 - 2000
-
№АртикулНазвание
-
1e5343653 Plastic WallPlastic Wall
-
1f5343651 Plastic BottomPlastic Bottom
-
1a5343654 Suction InletSuction Inlet
-
1b5343652 Plastic CoverPlastic Cover
-
1c414644300 Dart windshieldDart windshield
-
1d5444445 Inlet pipeInlet pipe
-
2570029600 Rubber flangeRubber flange
-
4414532800 ClampClamp
-
5570049000 Intake adaptor VM40Intake adaptor VM40
-
65444007 SupportSupport
-
720052 Spring washerSpring washer
-
840115 Screw M6x12Screw M6x12
-
920009 WasherWasher
-
1033200 Nut M6Nut M6
-
1120100 Washer, hardenedWasher, hardened
-
135443981 SupportSupport
