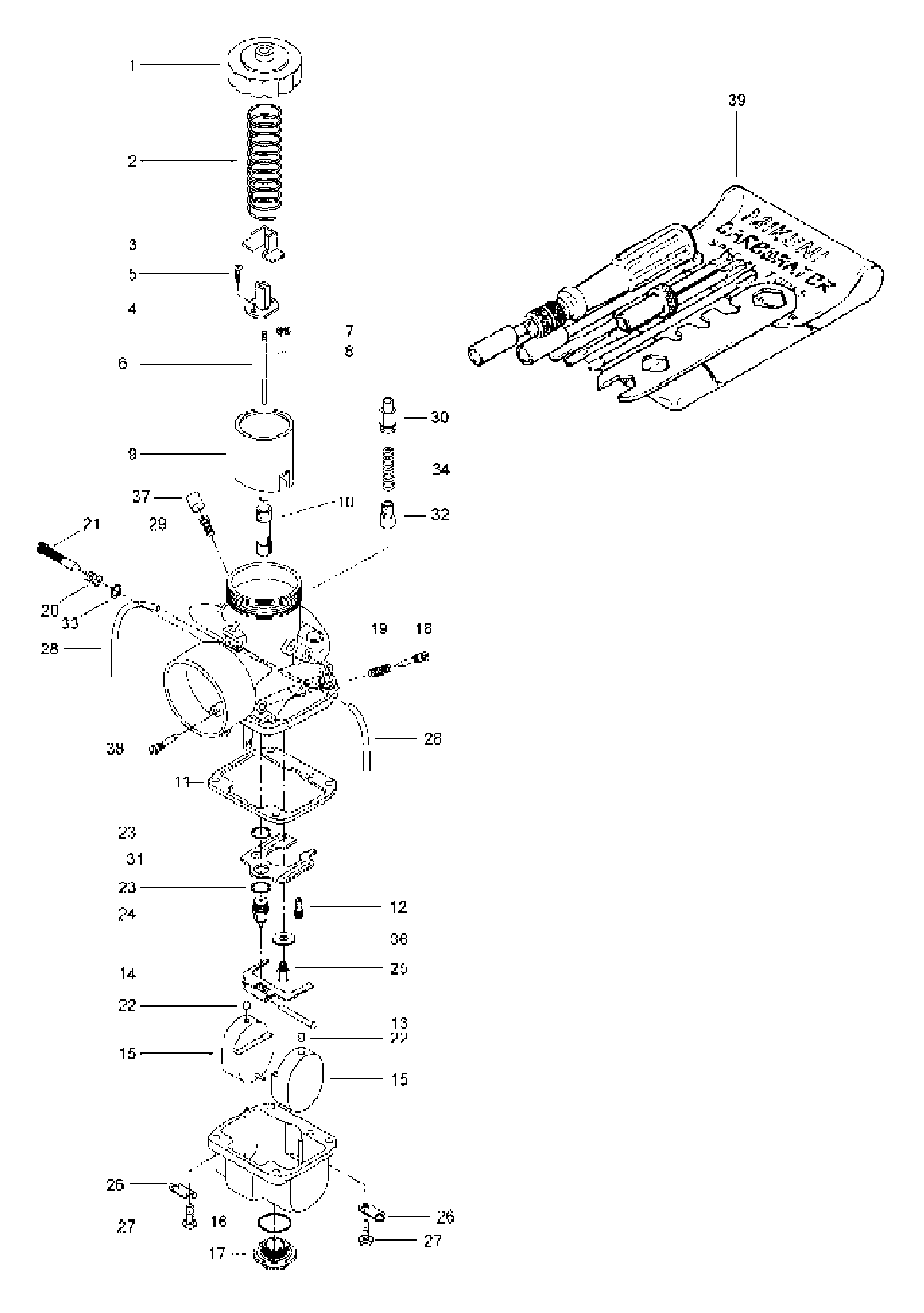

02- Carburetor для BRP Lynx G-Touring 700 - 2000
-
№АртикулНазвание
-
1404126800 CoverCover
-
2404156500 Throttle valve springThrottle valve spring
-
3404128100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw with washerScrew with washer
-
6404147200 Jet needle 7EG06-2Jet needle 7EG06-2
-
7404152200 E-ringE-ring
-
8404117000 PackingPacking
-
9404132300 Trottle valve 2.5Trottle valve 2.5
-
10404147600 Needle jet 224AA-4Needle jet 224AA-4
-
11404104700 GasketGasket
-
12404109400 Pilot jet 45Pilot jet 45
-
13404103300 Float arm pinFloat arm pin
-
14404161823 Float armFloat arm
-
15404105400 FloatFloat
-
16404112800 WasherWasher
-
17404112900 Plug ScrewPlug Screw
-
18404149000 Idle adjusting screwIdle adjusting screw
-
19404139800 Spring (air screw)Spring (air screw)
-
20404101700 Spring (adjustm. Screw)Spring (adjustm. Screw)
-
21404151900 Throttle stop screwThrottle stop screw
-
22404105800 CapCap
-
23404101600 Gasket washerGasket washer
-
24404147400 Needle valve 1,5VNeedle valve 1,5V
-
25404104900 Main jet 340Main jet 340
-
26404103000 Tube retainer plateTube retainer plate
-
27404102000 Screw + lock washerScrew + lock washer
-
28404161814 Vent tubeVent tube
-
29404153400 NippleNipple
-
30404161100 Guide holderGuide holder
-
31404112700 Baffle plateBaffle plate
-
32404161845 Plunger ass’yPlunger ass’y
-
33270500018 WasherWasher
-
34404161844 SpringSpring
-
36404116700 RingRing
-
38404131700 Plug screwPlug screw
-
39404112000 Tool kitTool kit
