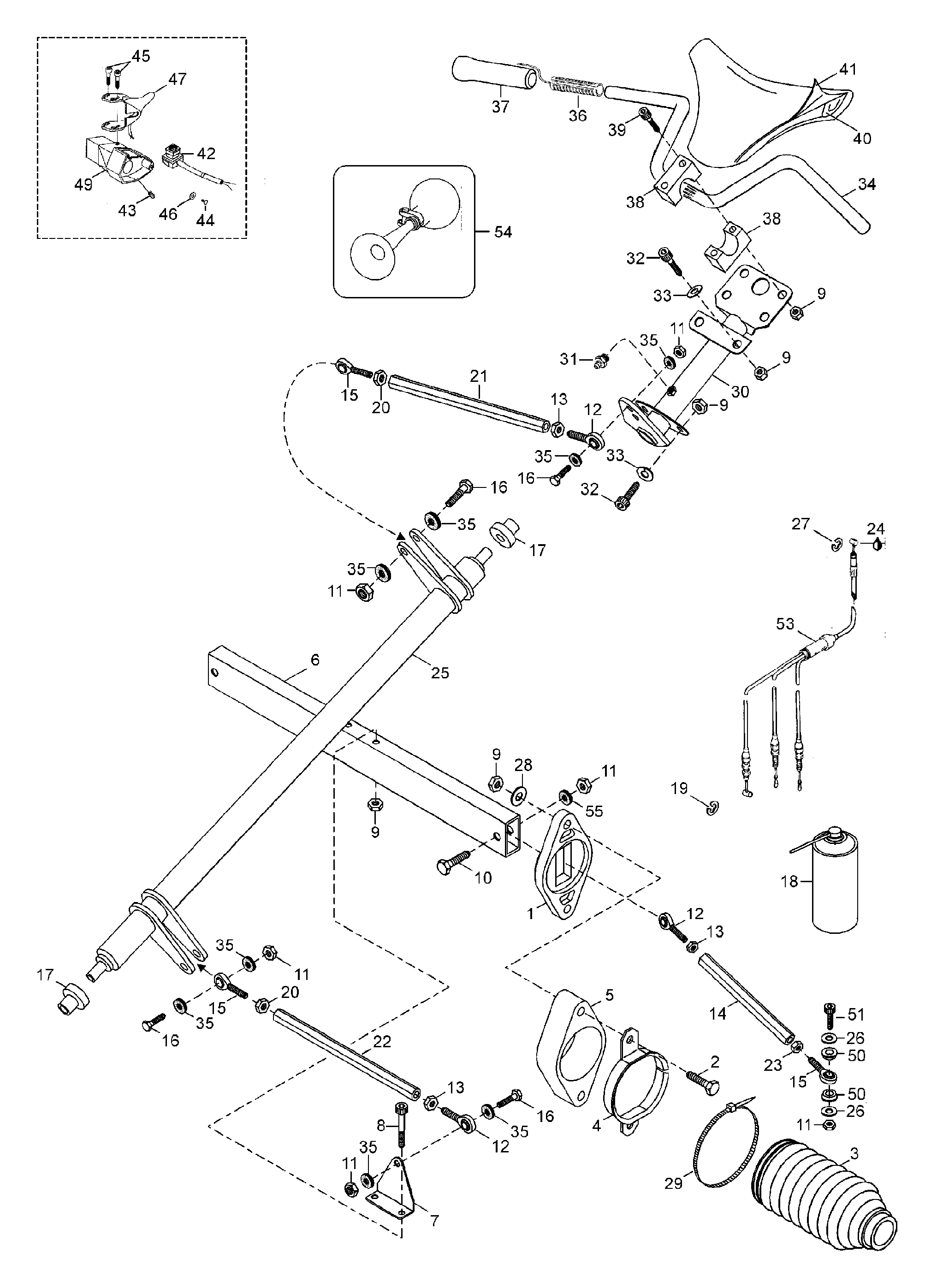

07- Steering для BRP Lynx G-Touring 700 - 2000
-
№АртикулНазвание
-
15343486 BearingBearing
-
240012 Screw M8x80Screw M8x80
-
3570068300 Tie-rod capTie-rod cap
-
45343720 BracketBracket
-
55343597 Support for bearingSupport for bearing
-
65344649 Steering beamSteering beam
-
75441549 PlatePlate
-
840290 Allen screw M8x55Allen screw M8x55
-
933011 Nut elastic M8Nut elastic M8
-
1040042 Screw M10x35Screw M10x35
-
1133012 Nut elastic M10Nut elastic M10
-
12311031L Joint ball L.H.Joint ball L.H.
-
133310934L Nut M10Nut M10
-
145343556 Tie RodTie Rod
-
15311031R Joint ball, R.H.Joint ball, R.H.
-
1640014 Screw M10x40Screw M10x40
-
1731084 Glide bearingGlide bearing
-
1832123 Spray oilSpray oil
-
1931035 CirclipCirclip
-
2033004 Nut elastic M10Nut elastic M10
-
215344322 Tie RodTie Rod
-
225343558 Tie RodTie Rod
-
2333069 Nut M10Nut M10
-
24413701700 Dielectric greaseDielectric grease
-
255343040 Main tubeMain tube
-
2620005 WasherWasher
-
2731038 CirclipCirclip
-
2820010 WasherWasher
-
2927121 Tie rapTie rap
-
305243030 Main tube upperMain tube upper
-
3134011 Grease FittingGrease Fitting
-
3240305 Allen screw M8x20Allen screw M8x20
-
3320014 Lock washerLock washer
-
345244519 Handle barHandle bar
-
3520105 Washer, hardenedWasher, hardened
-
36515175387 Heating elementHeating element
-
375340464 GripGrip
-
38548448 Steering clampSteering clamp
-
3940131 Allen screw M8x40Allen screw M8x40
-
405242077 Steering pad foamSteering pad foam
-
415244989 CoverCover
-
42414612700 Switch killSwitch kill
-
43414440800 Screw M8x10Screw M8x10
-
44414473200 ScrewScrew
-
45732601143 ScrewScrew
-
4620026 WasherWasher
-
475341802 Heated throttle handleHeated throttle handle
-
49572028600 Throttle handle hous.Throttle handle hous.
-
50547068 WasherWasher
-
5140134 Allen screw M10x45Allen screw M10x45
-
535241349 Throttle cableThrottle cable
-
5421003 Condor HornCondor Horn
-
5520105 washerwasher
