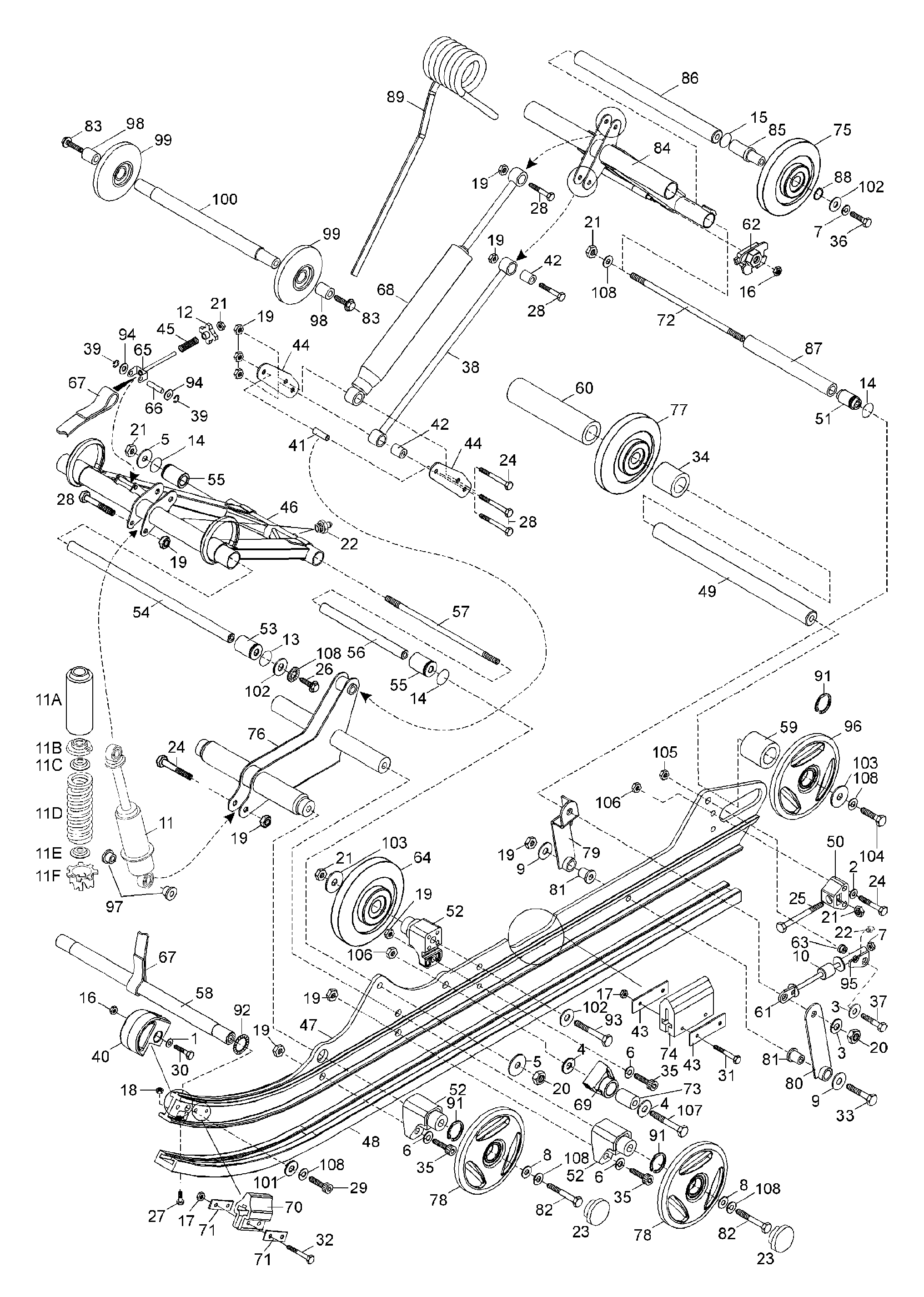

08- Rear Suspension для BRP Lynx G-Touring 700 - 2000
-
№АртикулНазвание
-
120003 WasherWasher
-
220104 WasherWasher
-
320105 Washer, hardenedWasher, hardened
-
420010 WasherWasher
-
5512056700 Lock waherLock waher
-
620104 Washer, hardenedWasher, hardened
-
733013 Nut elastic M12Nut elastic M12
-
8503183300 Washer, hardenedWasher, hardened
-
920078 WasherWasher
-
105445580 Rubber StopperRubber Stopper
-
1123226 Schok frontSchok front
-
11a503188930 ProtectorProtector
-
11b503140600 Spring stopperSpring stopper
-
11c503141600 CapCap
-
11d415039600 SpringSpring
-
11e23177001 Plastic protector sleevePlastic protector sleeve
-
11f23176001 Preload adjuster camPreload adjuster cam
-
12572034000 Knob adjusterKnob adjuster
-
1328404 O-ringO-ring
-
1428406 O-ringO-ring
-
1528405 O-ringO-ring
-
1633200 Nut M6Nut M6
-
1733009 Nut elastic M5Nut elastic M5
-
1833010 Nut elastic M6Nut elastic M6
-
1933011 Nut elastic M8Nut elastic M8
-
2033030 Lock nut M10Lock nut M10
-
2133012 Nut elastic M10Nut elastic M10
-
2234011 Crease nippleCrease nipple
-
23570063600 Wheel capWheel cap
-
2440008 Screw M8x45Screw M8x45
-
2540239 Screw M10x100Screw M10x100
-
2640341 Screw M10x75Screw M10x75
-
2740845 Allenscrew M6x25Allenscrew M6x25
-
2840006 Screw M8x35Screw M8x35
-
2940241 Allenscrew M10x30Allenscrew M10x30
-
3040031 Screw M6x25Screw M6x25
-
3140128 Screw M5x40Screw M5x40
-
3240231 Screw M5x30Screw M5x30
-
3340011 Screw M8x60Screw M8x60
-
345444099 SleeveSleeve
-
3540289 Allen screw M8x25Allen screw M8x25
-
3640134 Allen screw M10x45Allen screw M10x45
-
37222003565 Screw M10x35Screw M10x35
-
385441795 Pull rodPull rod
-
3941035 CirclipCirclip
-
40534578 Front protectorFront protector
-
415444713 SleeveSleeve
-
42414802600 SleeveSleeve
-
43548387 Support plateSupport plate
-
445444671 LeverLever
-
445444670 LeverLever
-
45414460600 SpringSpring
-
465244729 Front armFront arm
-
475243150 RunnerRunner
-
485343151 Slider shoeSlider shoe
-
495346023 Rear Axle l=340Rear Axle l=340
-
505341633 LugLug
-
515441524 SleeveSleeve
-
52503189504 Wheel SupportWheel Support
-
535441491 SleeveSleeve
-
545441492 Shaft l=393Shaft l=393
-
555441493 SleeveSleeve
-
565441494 SleeveSleeve
-
575441495 StudStud
-
585441508 Shaft l=219Shaft l=219
-
595441512 SleeveSleeve
-
605441513 SleeveSleeve
-
615445575 GuardGuard
-
62572030800 Cam adjuster L.H.Cam adjuster L.H.
-
62572030900 Cam adjuster R.H.Cam adjuster R.H.
-
635441533 SleeveSleeve
-
6446035 Idler wheel, blackIdler wheel, black
-
655441643 Bracket weldBracket weld
-
665441645 PinPin
-
675442878 Stopper StrapStopper Strap
-
6823227 Shock rearShock rear
-
695442112 Spring RollerSpring Roller
-
705442191 Rubber StopperRubber Stopper
-
715442192 Support plateSupport plate
-
725441526 StudStud
-
735443387 SleeveSleeve
-
74570023100 Rubber StopperRubber Stopper
-
75572091400 Support wheel blackSupport wheel black
-
765244588 Shock SupportShock Support
-
7746032 Support wheel blackSupport wheel black
-
785345345 Support wheel 135/blueSupport wheel 135/blue
-
795343435 Space support R.H.Space support R.H.
-
795343434 Space Support L.H.Space Support L.H.
-
805443659 Space supportSpace support
-
815441632 SleeveSleeve
-
8240081 Screw M10x100Screw M10x100
-
8340316 Screw M8x20Screw M8x20
-
845243457 Welded Rear ArmWelded Rear Arm
-
855443535 SleeveSleeve
-
865443767 Shaft l=310Shaft l=310
-
875441525 SleeveSleeve
-
8831001 CirclipCirclip
-
895341639 Spring R.H.Spring R.H.
-
895341640 Spring L.H.Spring L.H.
-
9031009 BearingBearing
-
9131002 CirclipCirclip
-
924181158 KeeperKeeper
-
9340226 Screw M10x80Screw M10x80
-
9420005 WasherWasher
-
955445578 Sleeve R.H.Sleeve R.H.
-
955445579 Sleeve L.H.Sleeve L.H.
-
965345346 Support wheel 165/blueSupport wheel 165/blue
-
975443753 SleeveSleeve
-
98541776 SleeveSleeve
-
99543246 Support wheelSupport wheel
-
100548668 ShaftShaft
-
101503176700 Washer, hardenedWasher, hardened
-
10220105 Washer, hardenedWasher, hardened
-
103503183300 Washer, hardenedWasher, hardened
-
104250000019 Screw M10x35Screw M10x35
-
10533074 Nut M10Nut M10
-
10633201 Nut M8Nut M8
-
10740010 Screw M8x55Screw M8x55
-
10820047 Lock washerLock washer
